Toyota COROLLA HB — SWITCH & RELAY & COMPUTER

82600FFUSE, FUSE BLOCK

main90982-07011i198705-199211

30A,GREEN

main90982-09002i198705-199211

10A

main90982-09003i198705-199211

15A

main90982-09004i198705-199211

20A,YELLOW

main90982-09005i198705-199211

7.5A

82616PULLER, FUSE

main82616-12010i198705-199211

82643RELAY, DIM-DIP LAMP

main82643-12010i198705-198908

UNITED KINGDOM SPEC,NO.1

main82643-12020i198908-199205

UNITED KINGDOM SPEC,NO.1

main90987-02006i198705-199205

UNITED KINGDOM SPEC,NO.3

main90987-04002i198705-199205

UNITED KINGDOM SPEC,NO.2

82661COVER, RELAY BLOCK, NO.1

main82661-12140i198705-199002

W(AIR CONDITIONER),UPR

main82661-12140i199002-199206

ANTI PROJECT MEASURE COUNTRIES,UPR

main82661-12140i198908-199002

ANTI PROJECT MEASURE COUNTRIES & W(AIR CONDITIONER),UPR

main82661-12150i198705-198908

*FRG OR NORWAY SPEC,UPR

main82661-12150i198705-198908

*FRG OR SWEDEN SPEC & W(*HC) OR NORWAY SPEC,UPR

main82661-12150i198705-198908

UNITED KINGDOM SPEC,UPR

main82661-12160i198705-198908

*FRG OR NORWAY SPEC OR W(AIR CONDITIONER),LWR

main82661-12160i199002-199206

ANTI PROJECT MEASURE COUNTRIES,LWR

main82661-12160i199002-199206

ANTI PROJECT MEASURE COUNTRIES & ICELAND SPEC,LWR

main82661-12160i198908-199206

*FRG OR NORWAY SPEC OR ANTI PROJECT MEASURE COUNTRIES,LWR

main82661-12160i198705-199205

UNITED KINGDOM SPEC,LWR

main82661-12160i198705-199101

*FRG OR SWEDEN SPEC & W(*HC) OR NORWAY SPEC,LWR

main82661-12160i198908-198911

*FRG OR ANTI PROJECT MEASURE COUNTRIES OR ICE LAND SPEC,LWR

main82661-12160i198908-198911

*FRG OR ANTI PROJECT MEASURE COUNTRIES,LWR

main82661-12160i199101-199211

*FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,LWR

main82661-12160i199106-199206

ICELAND SPEC,LWR

main82661-12160i199101-199206

*FRG OR SWEDEN SPEC OR NORWAY SPEC OR DENMARK SPEC,LWR

main82661-12160i199101-199206

*FRG OR NORWAY SPEC OR DENMARK SPEC,LWR

main82661-12160i198911-199002

ANTI PROJECT MEASURE COUNTRIES & W(AIR CONDITIONER),LWR

main82661-12160i198911-199002

ANTI PROJECT MEASURE COUNTRIES & W(AIR CONDITIONER) OR AUSTRIA SPEC,LWR

main82661-12160i198908-199101

*FRG OR NORWAY SPEC,LWR

main82661-12160i198908-199101

*FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC,LWR

main82661-12190i198908-199206

*FRG OR NORWAY SPEC,UPR

main82661-12190i198908-198911

*FRG,UPR

main82661-12190i198908-198911

*FRG & ICELAND SPEC,UPR

main82661-12190i198908-199101

*FRG OR SWEDEN SPEC & W(*HC) OR NORWAY SPEC,UPR

main82661-12190i198908-199101

*FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC,UPR

main82661-12190i198908-199205

UNITED KINGDOM SPEC,UPR

main82661-12190i198911-199206

ICELAND SPEC,UPR

main82661-12190i199101-199206

*FRG OR NORWAY SPEC OR DENMARK SPEC,UPR

main82661-12190i199101-199206

*FRG OR SWEDEN SPEC OR NORWAY SPEC OR DENMARK SPEC,UPR

main82661-12190i199101-199211

*FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,UPR

82671ABLOCK, JUNCTION

main82671-12050i198705-199206

main82671-12080i198705-199211

main82671-12090i198705-199206

*FRG OR NORWAY SPEC OR SWEDEN SPEC

main82671-12090i198705-199206

*FRG OR NORWAY SPEC

main82671-12090i198908-198911

*FRG OR ICELAND SPEC

main82671-12090i198908-199101

*FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC

main82671-12090i198705-199205

UNITED KINGDOM SPEC

main82671-12090i199101-199206

*FRG OR SWEDEN SPEC OR NORWAY SPEC OR DENMARK SPEC

main82671-12090i199101-199211

*FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC

main82671-12090i198911-199206

ICELAND SPEC

main82671-12100i198705-198908

EX.EMISSION CONTROL (A11)

main82671-12110i198708-198908

SWEDEN SPEC & EX.EMISSION CONTROL (A11)

82672ACOVER, JUNCTION BLOCK

main82672-12010i198705-198908

UPR

main82672-12020i198705-198908

UPR

main82672-12040i198705-198908

*FRG OR NORWAY SPEC,UPR

main82672-12040i198705-198908

UNITED KINGDOM SPEC,UPR

main82672-12040i198705-198908

*FRG OR SWEDEN SPEC OR NORWAY SPEC,UPR

main82672-12060i198705-198908

EX.EMISSION CONTROL (A11),UPR

main82672-12070i198705-199211

LWR

main82672-12090i198705-198908

SWEDEN SPEC & EX.EMISSION CONTROL (A11),UPR

main82672-12140i198908-199206

UPR

main82672-12150i198908-199211

UPR

main82672-12160i198908-198911

*FRG,UPR

main82672-12160i198908-198911

*FRG OR ICELAND SPEC,UPR

main82672-12160i198908-199206

*FRG OR SWEDEN SPEC OR NORWAY SPEC,UPR

main82672-12160i198908-199101

*FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC,UPR

main82672-12160i198908-199205

UNITED KINGDOM SPEC,UPR

main82672-12160i198908-199206

*FRG OR NORWAY SPEC,UPR

main82672-12160i198911-199206

ICELAND SPEC,UPR

main82672-12160i199101-199206

*FRG OR SWEDEN SPEC OR NORWAY SPEC OR DENMARK SPEC,UPR

main82672-12160i199101-199211

*FRG OR SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC OR DENMARK SPEC,UPR

83391SWITCH, VACUUM

main83391-12200i198705-198908

MARK=150FB

main83391-12210i198705-198908

MARK=80FM,AISIN

83399BRACKET, VACUUM SWITCH

main83399-12120i198705-198908

main83399-12130i198705-198908

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020i198705-199206

main83420-20020i198705-199211

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30050i198705-199003

main83530-30051i199003-199206

main83530-30060i198705-199206

main83530-30080i198705-199206

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040i198705-199206

main84210-60021i198705-199211

84540SWITCH ASSY, NEUTRAL START

main84540-16030i198705-199206

85430VALVE, OUTER VENT CONTROL

main90925-09011i198705-198908

main90925-09015i198707-198908

main90925-09034i198908-199206

85915RELAY, MAIN

main90987-04002i198705-199211

85916RELAY, LIGHT CONTROL

main90987-02002i198705-199211

MARUKO,TAIL

main90987-02004i198705-199211

NIPPONDENSO,TAIL

main90987-02006i198705-199211

HEAD

85925RELAY, RADIATOR FAN

main90987-03001i198705-199211

85926RELAY, HEADLAMP DIMMER

main85926-30020i198705-199211

85931RELAY, EMISSION CONTROL

main85950-12010i198908-199206

NO.1

main90987-02004i198908-199206

NO.2

main90987-02006i198705-198908

86530RELAY ASSY, HORN

main90987-02002i198705-199211

MARUKO

main90987-02004i198705-199211

NIPPONDENSO

88630GRELAY ASSY, COOLER

main88630-32010i198705-199206

88630HRELAY ASSY, COOLER

main90987-02004i198705-199206

89427SWITCH, TEMPERATURE DETECT

main89427-12070i198705-198908

main89427-12090i198705-199206

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10100i198705-198908

AISIN

main89428-10110i198705-198908

NIPPONDENSO

main89428-15011i198705-199211

main89428-15030i198705-199206

main89428-20060i198908-199206

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-12040i198705-198911

main89453-12050i198908-198911

main89453-16010i198705-198908

89465SENSOR, OXYGEN

main89465-19195i198707-198810

main89465-19235i198708-198810

main89465-19275i198810-198908

main89465-19285i198810-198908

main89465-19295i198708-198908

main89465-19366i198908-199211

main89465-19385i198908-199206

main89465-29315i198908-199206

89466GASKET, OXYGEN SENSOR

main89466-12010i198708-198810

main89466-12020i198810-199211

main89466-20020i198811-199206

main89466-30020i198707-198811

2583811030COVER, OUTER VENT CONTROL VALVE

main25838-11030

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9017906009

main90179-06009

9017908059

main90179-08059

9043018007

main90430-18007

9151160610

main91511-60610

9165140612

main91651-40612

9165140620

main91651-40620

9165540616

main91655-40616

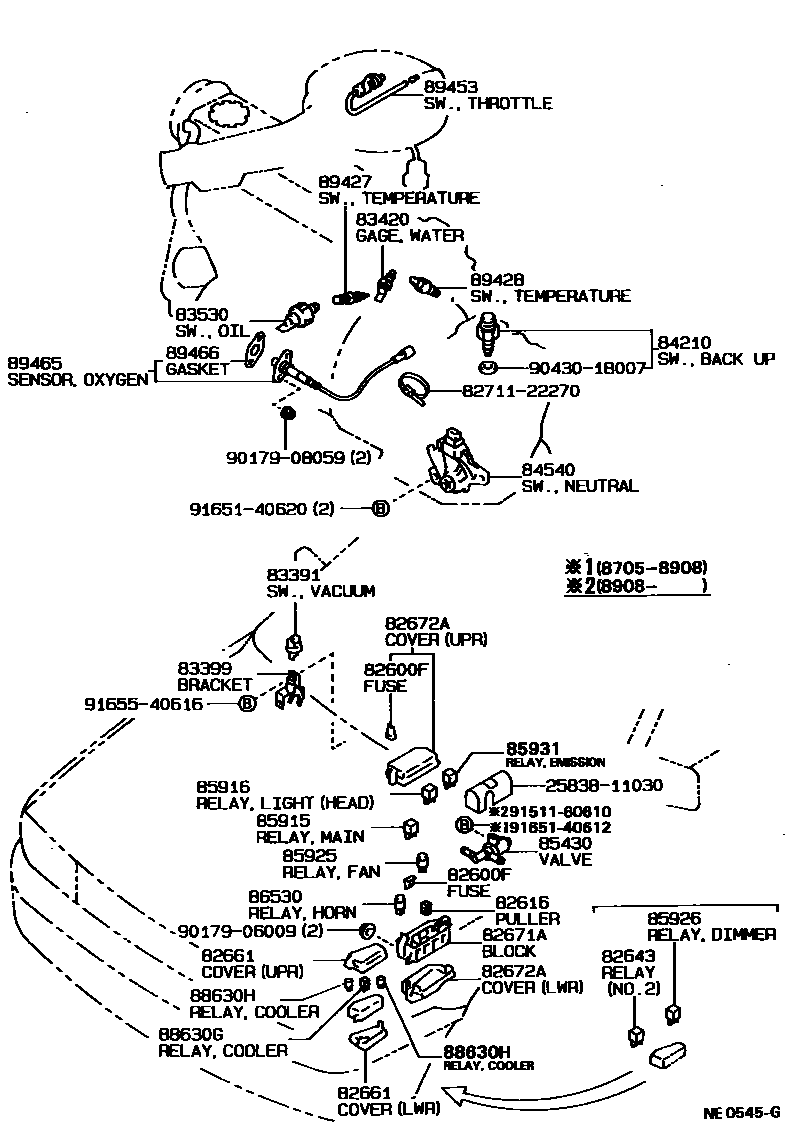

35 parts on this diagram · 8 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota COROLLA HB

This section contains 148 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota COROLLA HB. Key components include: TIMER, PREHEATING, BRACKET, PREHEATING TIMER, NO.1, RELAY ASSY, INTAKE HEATER OR GLOW PLUG, COVER, GLOW PLUG RELAY, RESISTOR, GLOW PLUG.
