Toyota COROLLA HB — SHORT BLOCK ASSEMBLY

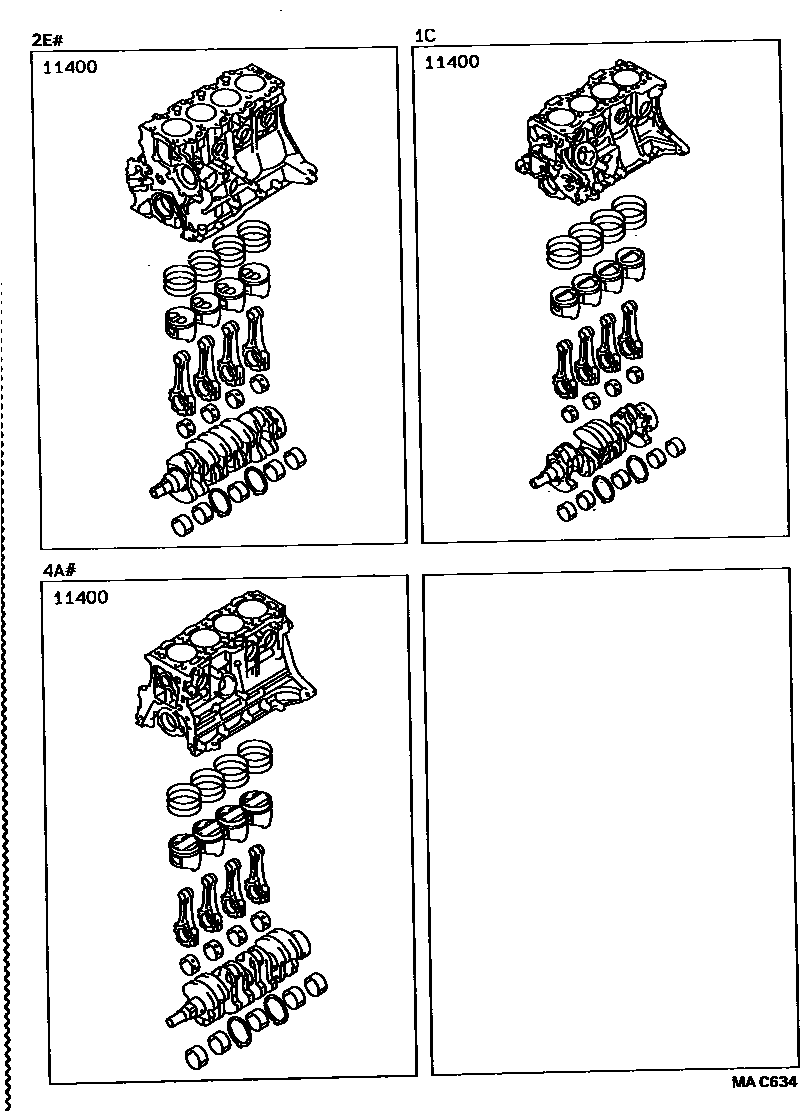

Parts diagram

11400BLOCK ASSY, SHORT

main11400-11031i198705-198908

main11400-11080i198908-199206

main11400-16120i198708-198908

EX. EMISSION CONTROL(US83)

main11400-16140i198705-198908

main11400-16150i198705-198908

main11400-16160i198705-198908

EX. EMISSION CONTROL(US83 OR *77)

main11400-16230i198908-199206

main11400-16250i198909-199101

EX. EMISSION CONTROL(US83)

main11400-16251i199101-199211

EX. EMISSION CONTROL(US83)

main11400-16260i198908-198909

main11400-16261i199101-199211

main11400-16270i198908-198909

main11400-16280i198908-198909

EX. EMISSION CONTROL(US83)

main11400-64101i198705-198908

main11400-64290i198908-199110

main11400-64291i199110-199206

1 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota COROLLA HB

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota COROLLA HB. Key components include: BLOCK ASSY, SHORT.
