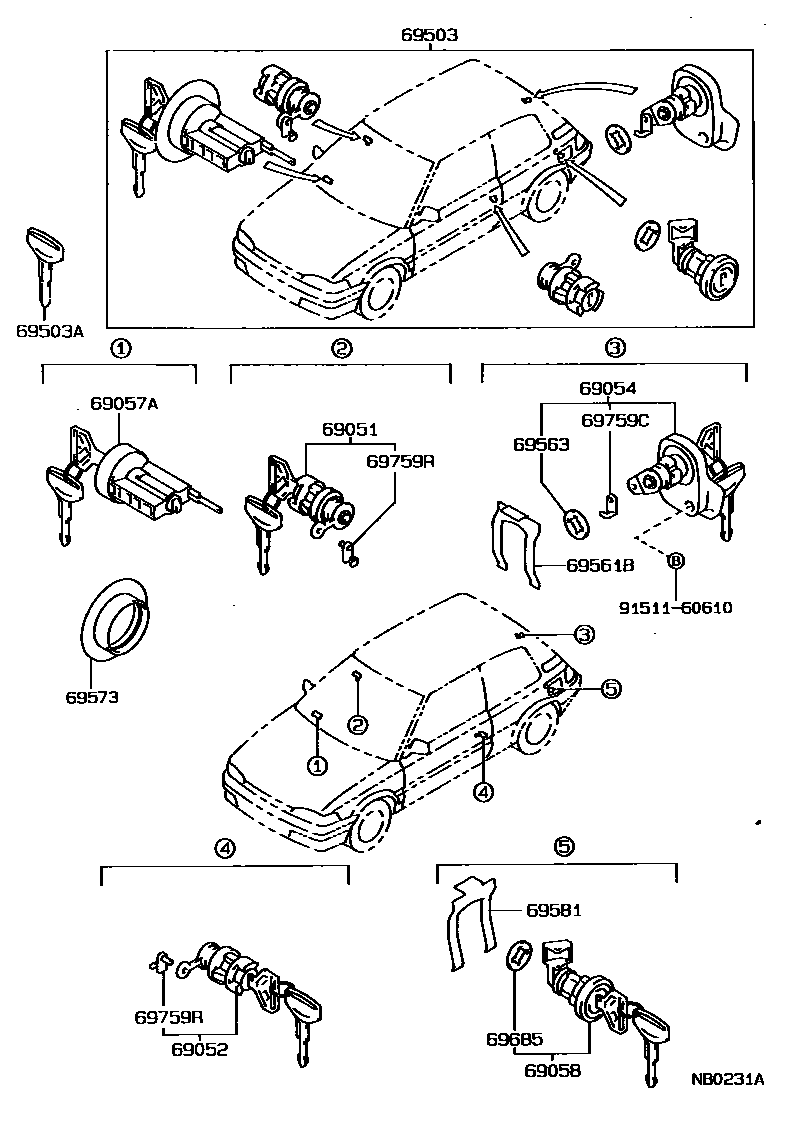

Toyota COROLLA HB — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12200i198908-199211

main69051-12220i198908-199205

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12200i198908-199211

main69052-12220i198705-198908

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-12490i198908-199205

main69055-12500i198908-199211

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12090i198908-199211

main69057-12110i198705-198908

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-12120i198908-199211

main69058-12130i198705-199205

69503CYLINDER SET, LOCK

main69005-12870i198705-199205

main69005-12880i198705-199211

69503AKEY, BLANK

main90999-00132i198705-198808

MASTER KEY,W(*68)

main90999-00133i198705-198808

MASTER KEY,W(*69)

69561BRETAINER, BACK DOOR LOCK CYLINDER

main69561-12200i198705-199211

69563PAD, BACK DOOR LOCK CYLINDER

main69563-12020i198705-199211

69573PAD, IGNITION SWITCH LOCK CYLINDER

main69573-12010i198705-199211

69581RETAINER, FUEL FILLER LID CYLINDER

main69561-17010i198705-198804

main69581-12020i198804-199205

69685PAD, LOCK CYLINDER

main69513-32010i198705-198908

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-20080i198705-199211

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040i198705-199211

main69759-30050i198705-199211

9151160610

main91511-60610

15 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota COROLLA HB

This section contains 15 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA HB. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, FUEL FILLER LID.
