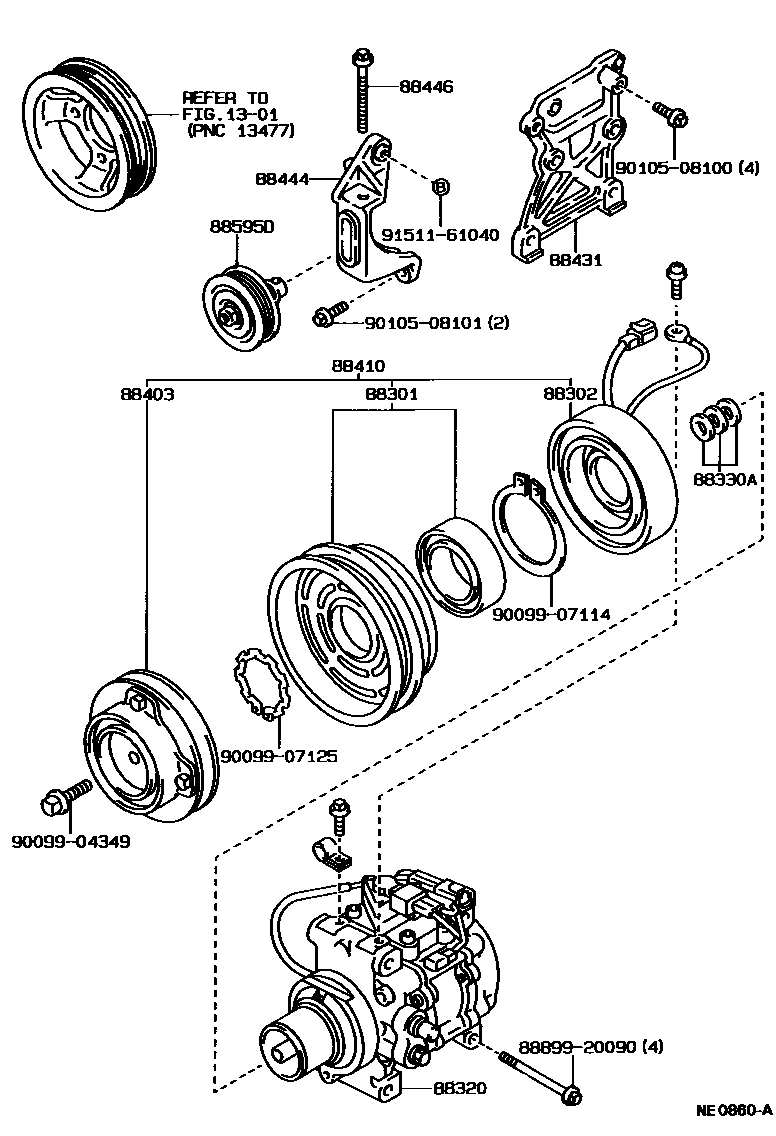

Toyota COROLLA HB — HEATING & AIR CONDITIONING - COMPRESSOR
1301CRANKSHAFT & PISTON
88301ROTOR SUB-ASSY, MAGNET CLUTCH
LOW PULLEY
88302STATOR SUB-ASSY, MAGNET CLUTCH
W(POWER STEERING)
88320COMPRESSOR ASSY, COOLER
LOW PULLEY
W(POWER STEERING)
88330AWASHER (FOR MAGNET CLUTCH)
88403HUB SUB-ASSY, MAGNET CLUTCH
88410CLUTCH ASSY, MAGNET
LOW PULLEY
LOW PULLEY
LOW PULLEY
88431BRACKET, COMPRESSOR MOUNTING, NO.1
88444BRACKET, IDLE PULLEY
88446BOLT, IDLE PULLEY
88595DPULLEY ASSY, IDLE
8889920090COVER, EVAPORATOR
main88899-20090
9009904349
main90099-04349
9009907114
main90099-07114
9009907125
main90099-07125
9010508100
main90105-08100
9010508101
main90105-08101
9151161040
main91511-61040
18 parts on this diagram · 6 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COROLLA HB
This section contains 55 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COROLLA HB. Key components include: CRANKSHAFT & PISTON, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, REED SUB-ASSY, VALVE, PUMP SUB-ASSY, COMPRESSOR.
