Toyota COROLLA HB — DISTRIBUTOR

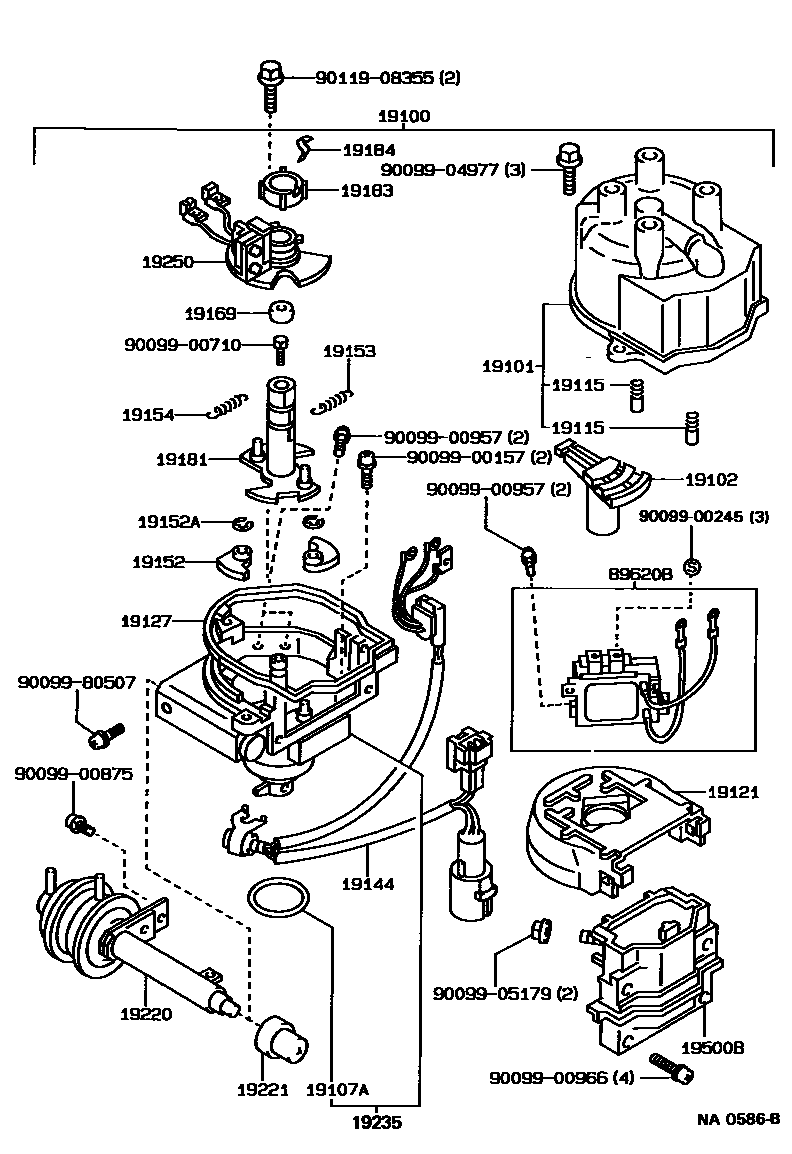

Parts diagram

19100DISTRIBUTOR ASSY

main19020-11032198705-198908

main19020-11140198705-198712

main19020-11141198712-198903

main19020-11142198903-199206

main19020-11160198705-198707

main19020-11180198711-198908

main19020-11200198908-199206

main19020-16090198705-199206

main19020-16100198705-198911

main19020-16120198705-198908

main19020-16190198908-199206

main19100-16170198705-198908

main19100-16180198708-198908

main19100-16250198908-199211

main19100-16260198908-199211

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11010198705-199206

main19101-11032198705-198908

main19101-15120198705-199206

main19101-15140198908-199206

main19101-16160198705-198908

main19101-16250198908-199211

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031198705-199211

main19102-16060198705-199211

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091198908-199211

main96711-35030198705-199103

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010198705-199211

main19115-63010198705-199206

19121COVER, DUST PROOF

main19121-11080198705-199206

main19121-16040198705-199211

main19121-16080198908-199211

main19121-16090198908-199211

main19121-16150198908-199211

main19121-16160198705-198908

main19121-63040198908-199206

main19121-63090198908-199206

19127PACKING, DUST PROOF

main19127-11010198705-198903

main19127-15021198705-199211

main19127-15120198705-199206

main19127-63010198908-199206

main19127-63020198908-199206

19144LEAD, DISTRIBUTOR BREAKER

main19144-11032198705-198908

main19144-11130198705-199107

main19144-11200198908-199206

main19144-11330199107-199206

main19144-16090198705-199206

main19144-16190198908-199206

19152WEIGHT, GOVERNOR

main19152-15160198705-199206

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07122198705-199206

19153SPRING, GOVERNOR, A

main19153-11030198705-198908

main19153-11142198903-199206

main19153-11180198711-198908

main19153-16090198705-199206

main19153-16210198705-198911

main19153-16240198708-198908

19154SPRING, GOVERNOR, B

main19154-11030198705-198908

main19154-11142198903-199206

main19154-11180198711-198908

main19154-16090198705-199206

main19154-16220198705-198911

main19154-16240198708-198908

19169STOPPER, CAM GREASE

main19169-63011198705-199206

19181ROTOR, DISTRIBUTOR, SIGNAL

main19181-11032198705-198805

main19181-11036198805-198908

main19181-11140198705-198712

main19181-11141198712-198805

main19181-11144198805-198903

main19181-11180198711-198805

main19181-11182198805-198908

main19181-11190198903-199206

main19181-15120198705-198911

main19181-16100198705-199206

main19181-16170198708-198908

19183ROTOR, SIGNAL

main19183-15010198705-199206

19184SPRING, ROTOR SET

main19184-63010198705-199206

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-11030198705-198908

main19220-11134198711-198908

main19220-11140198705-198903

main19220-11142198903-199206

main19220-16100198705-198911

main19220-16230198705-199206

main19220-16260198708-198908

19221CAP, ADJUSTER, DISTRIBUTOR

main19221-60040198706-198911

19235HOUSING, DISTRIBUTOR

main19235-11080198705-199206

main19235-11190198908-199206

main19235-15130198908-199206

main19235-16090198705-199206

main19235-16110198705-198911

main19235-16160198708-198908

main19235-16180198708-198908

main19235-16250198908-199211

main19235-16260198908-199211

19250GENERATOR ASSY, SIGNAL

main19251-15091198705-198805

main19251-16100198805-199206

19500BCOIL ASSY, IGNITION

main90919-02139198908-199206

main90919-02164198705-199206

89620BIGNITER ASSY

main89620-10090198705-198810

main89620-10120198705-199206

main89620-12340198810-199206

main89620-12410198908-199206

main89620-12430198908-199206

9009900157

main90099-00157

9009900245

main90099-00245

9009900710

main90099-00710

9009900875

main90099-00875

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

9009980507

main90099-80507

9011908355

main90119-08355

32 parts on this diagram · 5 diagrams in section

DISTRIBUTOR for Toyota COROLLA HB

This section contains 43 genuine Toyota parts for the DISTRIBUTOR system of the Toyota COROLLA HB. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING, PIECE, DISTRIBUTOR CAP, CENTER.
