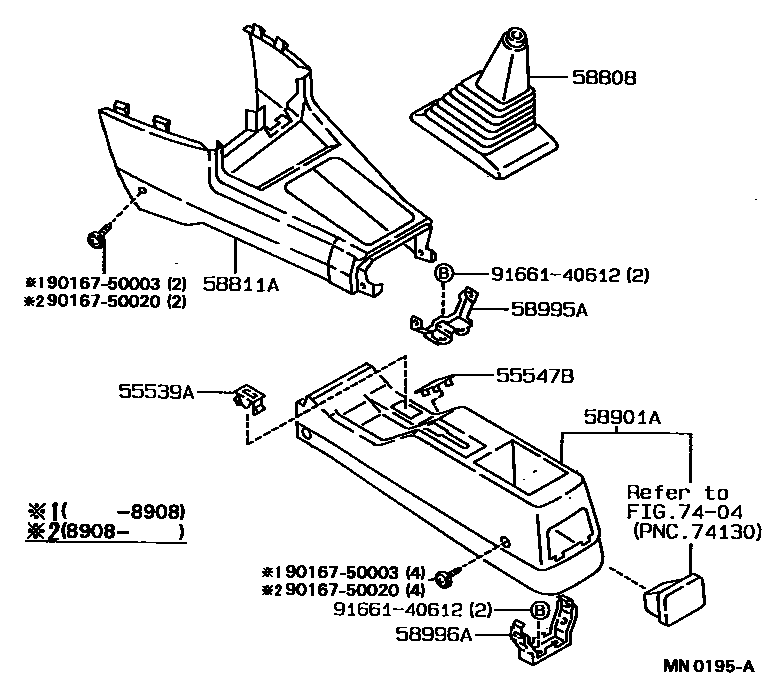

Toyota COROLLA HB — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-03iAE92,CE90;EE90..CBR;EE90..XLI198908-199208

SHADOW GRAY,TRIM1#

main55539-20020-05iAE92,CE90,EE90..CBR,DSL198705-198908

BEIGE,TRIM4#,TYPE B

main55539-20020-34iAE92,CE90,EE90..LHD..(GL,XL)198705-198807

DARK BLUE,TRIM8#,TYPE B

main55539-20020-E0iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

main55539-20020-J0iEE90..CBR;EE90..XLI;AE92,CE90..GLI,STD,XL,XLI198908-199206

DARK BLUE,TRIM8#

main55539-20020-P0iAE92199208-199211

SHADOW GRAY,TRIM1#

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-20020-03iAE92,CE90;EE90..CBR;EE90..XLI198705-199211

SHADOW GRAY,TRIM1#

main55547-20020-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

main55547-20020-14iAE92..GL;AE92..3D..XL;CE90,EE90..LHD..(GL,XL)198705-198908

DARK BLUE,TRIM8#

main55547-20020-16iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12090-01iAE92,CE90,EE90..MTM..(GL,GLI,STD,XL,XLI)198908-199211

BLACK,TRIM1#

main58808-12090-04iAE92,CE90,EE90..LHD..3D..MTM..XL198705-198908

DARK BLUE,TRIM8#

main58808-12090-05iAE92,CE90,EE90..MTM..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

main58808-12090-06iAE92,CE90,EE90..LHD..MTM..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

58811ABOX, CONSOLE, FRONT

main58811-12390-05iAE92,CE90,EE90..LHD..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

main58811-12390-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-198909

BROWN,TRIM4#

main58811-12390-13iAE92,CE90,EE90..LHD198705-199211

SHADOW GRAY,TRIM1#

main58811-12390-14iAE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI)198908-199206

BLUE,TRIM8#

main58811-12390-E0iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198909-199206

BROWN,TRIM4#

main58811-12400-05iCE90,EE90..RHD198705-198908

DARK BEIGE,TRIM4#

main58811-12400-13iAE92,CE90,EE90..RHD198705-199206

SHADOW GRAY,TRIM1#

main58811-12400-14iCE90,EE90..RHD198908-199206

DARK BLUE,TRIM8#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12140-03iAE92,CE90,EE90198705-199009

SHADOW GRAY,TRIM1#

main58901-12140-04iAE92,CE90,EE90..LHD..(GL,XL)198705-198811

DARK BLUE,TRIM8#

main58901-12140-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

main58901-12140-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-198909

BROWN,TRIM4#

main58901-12140-B1iAE92,CE90,EE90199009-199211

SHADOW GRAY,TRIM1#

main58901-12140-E0iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198909-199206

BROWN,TRIM4#

main58901-12140-J0iAE92,CE90,EE90..LHD..(GL,XL)198811-198908

DARK BLUE,TRIM8#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12060iAE92,CE90,EE90198705-199211

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12030iAE92,CE90,EE90198705-199211

7404

9016750003

main90167-50003

9016750020

main90167-50020

9166140612

main91661-40612

11 parts on this diagram · 1 diagram in section
