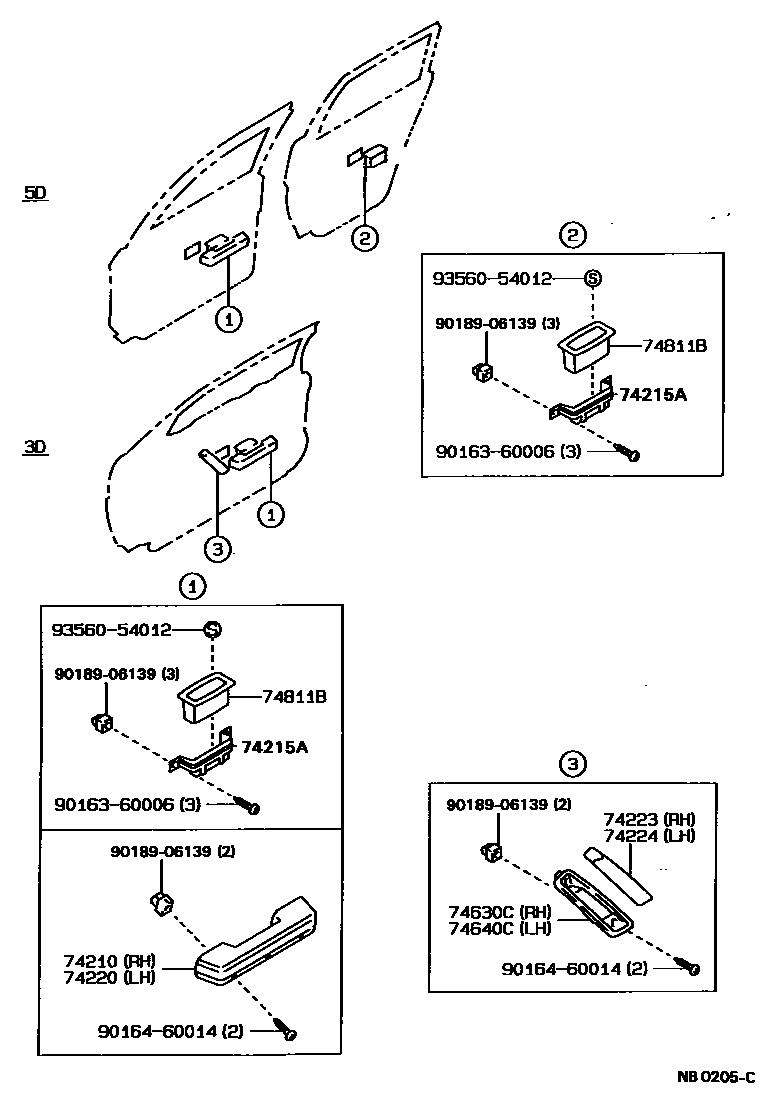

Toyota COROLLA HB — ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
BROWN,TRIM4#
GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
74215ABASE, DOOR ARMREST RH
LH
74220ARMREST ASSY, FRONT, LH
BROWN,TRIM4#
GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
74223CAP, DOOR ARMREST, RH
S PACKAGE,SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
SHADOW GRAY,TRIM1#,TYPE A
DARK BLUE,TRIM8#,TYPE A
BROWN,TRIM4#,TYPE A
SHADOW GRAY,TRIM1#,TYPE B
DARK BLUE,TRIM8#,TYPE B
BROWN,TRIM4#,TYPE B
74224CAP, DOOR ARMREST, LH
SHADOW GRAY,TRIM1#,TYPE B
DARK BLUE,TRIM8#,TYPE B
BROWN,TRIM4#,TYPE B
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
SHADOW GRAY,TRIM1#,TYPE A
DARK BLUE,TRIM8#,TYPE A
BROWN,TRIM4#,TYPE A
74630CGRIP ASSY, DOOR ASSIST, RH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
W(*PW & *EL),SHADOW GRAY,TRIM1#
W(*PW & *EL),DARK BLUE,TRIM8#
W(*PW & *EL),BROWN,TRIM4#
74640CGRIP ASSY, DOOR ASSIST, LH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
W(*PW & *EL),SHADOW GRAY,TRIM1#
W(*PW & *EL),DARK BLUE,TRIM8#
W(*PW & *EL),BROWN,TRIM4#
74811BHANDLE, DOOR PULL
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
9016360006
main90163-60006
9016460014
main90164-60014
9018906139
main90189-06139
9356054012
main93560-54012
12 parts on this diagram · 3 diagrams in section
ARMREST & VISOR for Toyota COROLLA HB
This section contains 27 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA HB. Key components include: ARMREST ASSY, FRONT, RH, BASE, DOOR ARMREST RH, ARMREST ASSY, FRONT, LH, CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH.
