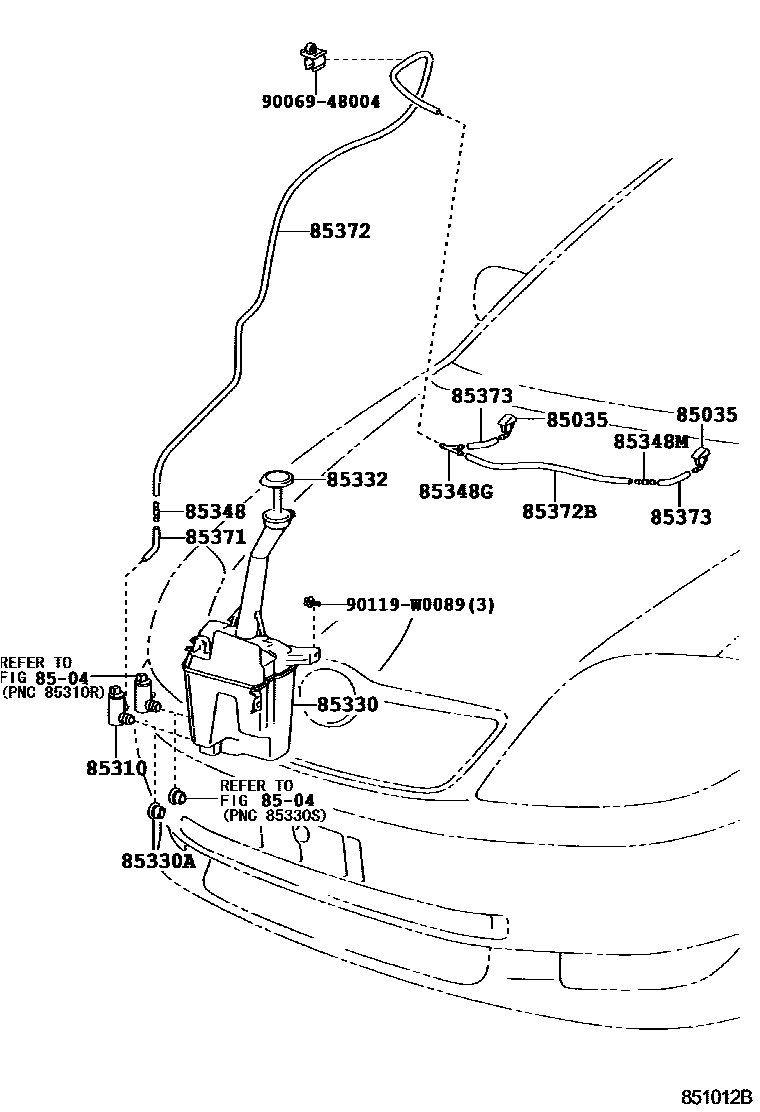

Toyota COROLLA HB (UKP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-02080×2i200111-200405

main85381-02081×2i200505

main85381-02090×2i200111-200405

main85381-02091×2i200505

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-05030i200111-200405

main85330-05031i200505

85330JAR ASSY, WINDSHIELD WASHER

main85315-02090i200111-200405

main85315-02100i200505

W(HEADLAMP CLEANER)

85330ABUSH, WINDSHIELD WASHER JAR

main85336-05070i200111-200405

main90069-20005i200505

85332CAP, WINDSHIELD WASHER JAR

main85316-02090i200111-200405

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050i200111-200405

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85378-05030i200111-200405

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-05050i200111-200405

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46011i200111-200405

*H,L=50

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46012i200111-200405

*H,L=1580

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46011i200111-200405

*H,L=480

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-16009×2i200405

9006948004

main90069-48004

90119W0089

main90119-W0089

15 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COROLLA HB (UKP)

This section contains 15 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA HB (UKP). Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
