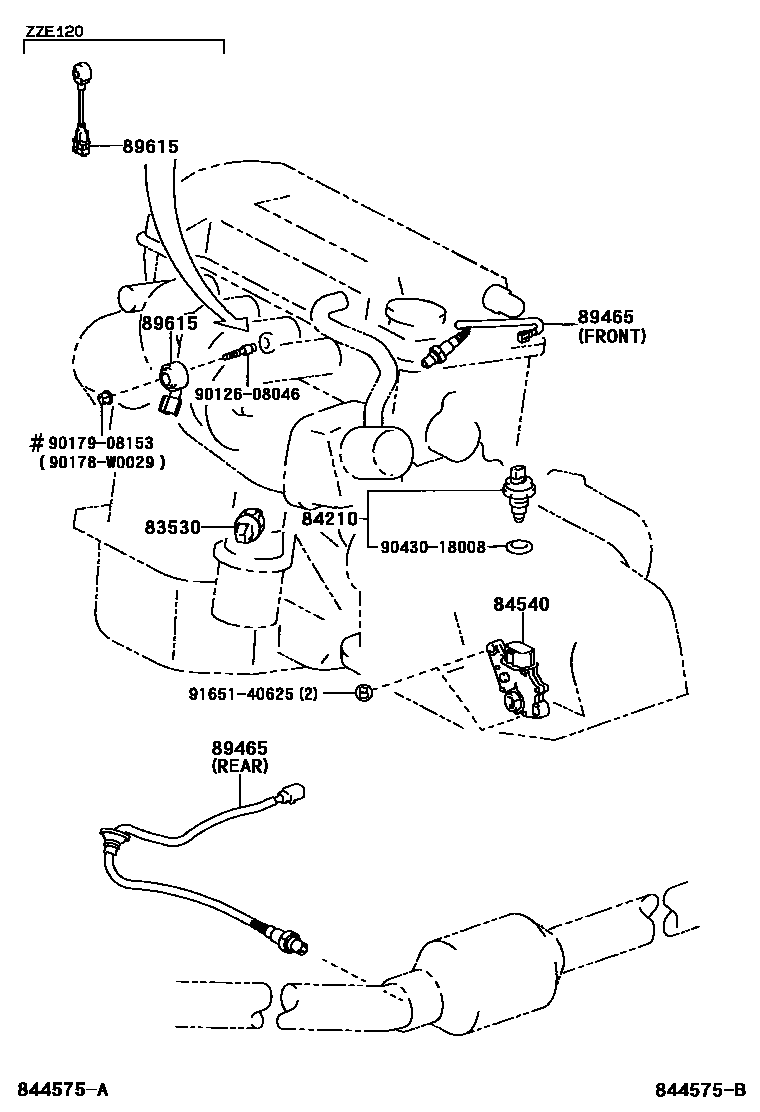

Toyota COROLLA HB (UKP) — SWITCH & RELAY & COMPUTER

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010i200111-200702

VALEO

main83530-28020i200111-200702

DENSO

main83530-60010i200111-200702

main83530-60020i200111-200702

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040i200111-200702

84540SWITCH ASSY, NEUTRAL START

main84540-12230i200111-200405

main84540-17010i200408-200702

main84540-48010i200405-200702

89465SENSOR, OXYGEN

main89465-02060i200111-200405

FRONT

main89465-02070i200111-200405

REAR

main89465-02080i200111-200405

REAR

main89465-02090i200111-200405

FRONT

main89465-02100i200111-200405

REAR

main89465-02140i200405

FRONT

main89465-02150i200301-200405

FRONT

main89465-02180i200405

REAR

main89465-05080i200405

FRONT

main89465-05090i200405

REAR

main89465-13030i200111-200301

FRONT

89615SENSOR, KNOCK CONTROL

main89615-02010i200111-200405

main89615-02020i200111-200405

main89615-02020i200405

(L)

main89615-20080i200111-200405

main89615-20090i200405

(J)

9012608046

main90126-08046

90178W0029

main90178-W0029

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

10 parts on this diagram · 16 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota COROLLA HB (UKP)

This section contains 145 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota COROLLA HB (UKP). Key components include: RELAY, AIR PUMP, RELAY ASSY, STARTER, RELAY, IGNITION, NO.1, RELAY ASSY, INTAKE HEATER OR GLOW PLUG, STEERING COLUMN & SHAFT.
