Toyota COROLLA HB (UKP) — MIRROR

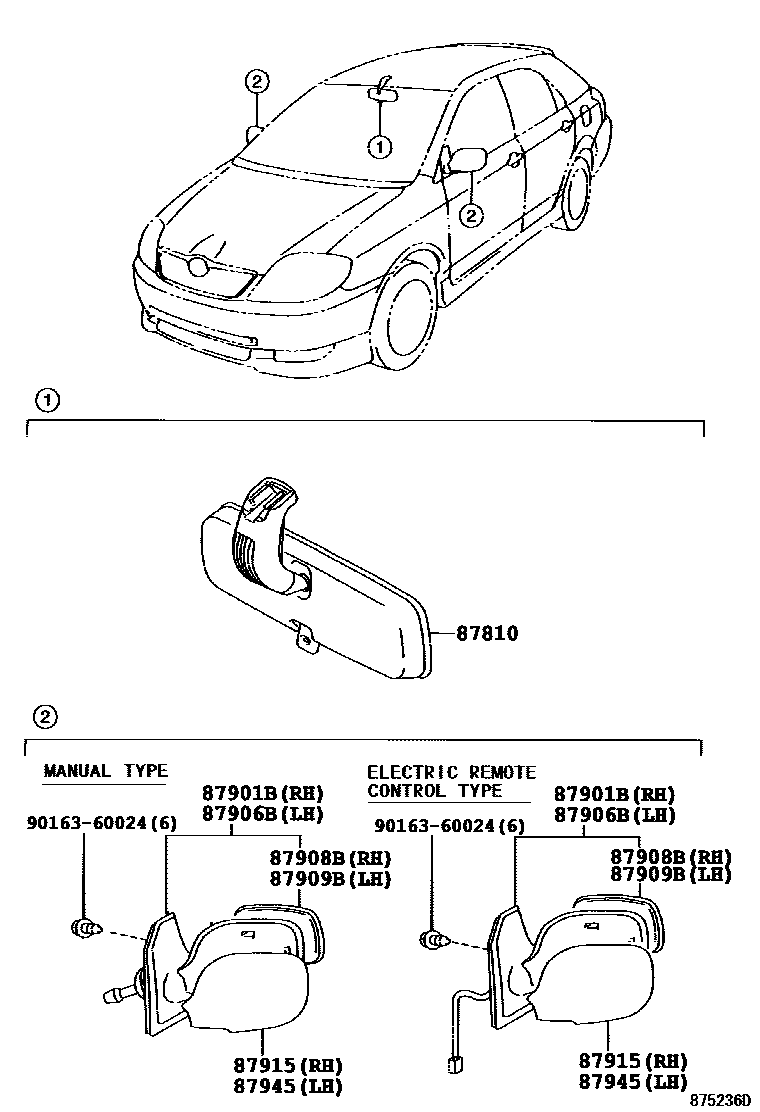

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-05040i200405-200610
W(AUTO DIMMER)
main87810-05041i200611-200612
W(AUTO DIMMER)
main87810-05042i200612
W(AUTO DIMMER)
main87810-0D010i200111-200405
main87810-0D011i200407
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87901-02010i200405
main87901-02020i200111-200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
main87901-02030i200111-200405
W(ELECTRIC REMOTE CONTROL MIRROR)
main87901-02040i200405
main87901-02050i200111-200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
main87901-02060i200111-200405
W(ELECTRIC REMOTE CONTROL MIRROR)
main87901-02140i200405
W(ELECTRIC REMOTE CONTROL MIRROR)
main87901-02150i200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
main87901-02160i200405
W(ELECTRIC REMOTE CONTROL MIRROR)
main87901-02170i200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87906-02010i200405
main87906-02020i200111-200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
main87906-02030i200111-200405
W(ELECTRIC REMOTE CONTROL MIRROR)
main87906-02040i200111-200405
main87906-02050i200111-200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
main87906-02060i200111-200405
W(ELECTRIC REMOTE CONTROL MIRROR)
main87906-02130i200405
W(ELECTRIC REMOTE CONTROL MIRROR)
main87906-02140i200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
main87906-02150i200405
W(ELECTRIC REMOTE CONTROL MIRROR)
main87906-02160i200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
87908BMIRROR SUB-ASSY, RH
main87908-02330i200111-200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
main87908-02340i200405
main87908-02360i200111-200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
main87908-02370i200111-200405
main87908-02590i200405
W(ELECTRIC REMOTE CONTROL MIRROR)
main87908-02600i200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
main87908-02610i200405
W(ELECTRIC REMOTE CONTROL MIRROR)
main87908-02620i200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
87909BMIRROR SUB-ASSY, LH
main87909-02330i200111-200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
main87909-02340i200111-200405
main87909-02360i200111-200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
main87909-02370i200111-200405
main87909-02570i200405
W(ELECTRIC REMOTE CONTROL MIRROR)
main87909-02580i200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
main87909-02590i200405
W(ELECTRIC REMOTE CONTROL MIRROR)
main87909-02600i200405
W(ELECTRIC REMOTE CONTROL MIRROR = W/HEATER)
87915COVER, OUTER MIRROR, RH
main87915-05010i200405
main87915-05900i200111-200405
LESS COLOR
main87915-05901i200405
W(ELECTRIC REMOTE CONTROL MIRROR)
87945COVER, OUTER MIRROR, LH
main87945-05010i200111-200405
BLACK
main87945-05900i200111-200405
LESS COLOR
main87945-05901i200405
W(ELECTRIC REMOTE CONTROL MIRROR)
9016360024
main90163-60024

8 parts on this diagram · 2 diagrams in section

MIRROR for Toyota COROLLA HB (UKP)

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota COROLLA HB (UKP). Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, COVER, INNER REAR VIEW MIRROR STAY HOLDER, NO.2, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
