Toyota COROLLA HB (UKP) — CONSOLE BOX & BRACKET

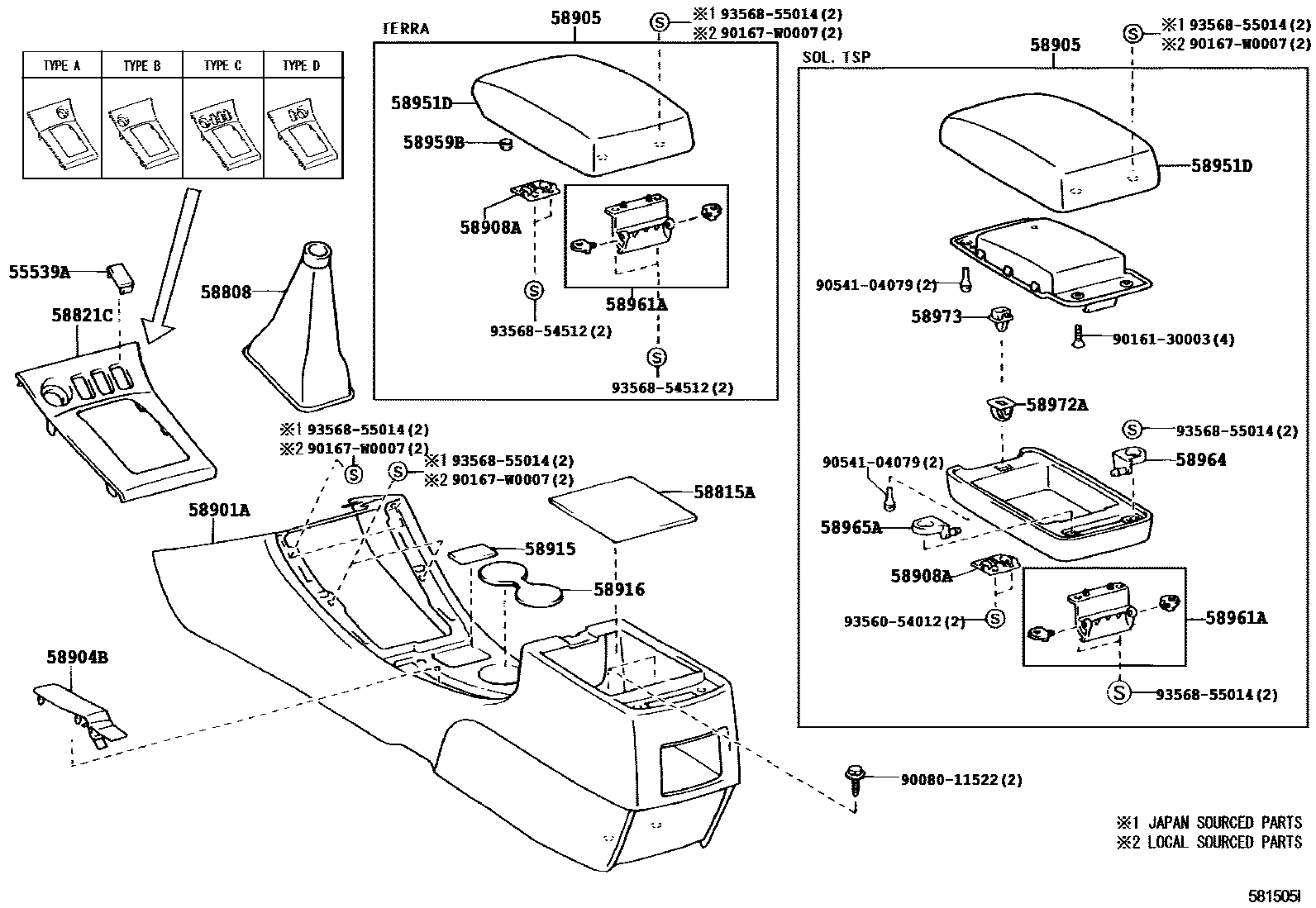

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-02080-A0i200111-200405
IVORY,TRIM0#
main55539-02080-B0i200111-200405
DK.GRAY,TRIM1#
main55539-02080-J0i200111-200405
DK.BLUE,TRIM8#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-02080-B0i200111-200405
DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,8#
main58808-02120-B0i200405-200702
DK.GRAY,TRIM1#
58815ACARPET, CONSOLE BOX
main58815-02020i200111-200405
58821CPANEL, CONSOLE, UPPER
main58821-02030-B0i200408-200702
TYPE D:REFER TO ILLUSTRATION & TRIM = TYPE A-*104,DARK GRAY,TRIM1#
main58821-02040-B0i200408-200510
TYPE D:REFER TO ILLUSTRATION & TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1#
main58821-02110-B0i200405-200702
TYPE A:REFER TO ILLUSTRATION & TRIM = TYPE A-*104,DARK GRAY,TRIM1#
main58821-02120-A0i200111-200304
TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM0#
main58821-02120-B0i200405-200702
TYPE A:REFER TO ILLUSTRATION,GRAPHIC CARBON,TRIM00,1#
main58821-02120-B1i200405-200510
TYPE A:REFER TO ILLUSTRATION & TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1#
main58821-02130-A0i200111-200405
TYPE B:REFER TO ILLUSTRATION,IVORY,TRIM0#
main58821-02130-B0i200111-200405
TYPE B:REFER TO ILLUSTRATION,GRAPHIC CARBON,TRIM1#
main58821-02130-B1i200405-200702
TYPE B:REFER TO ILLUSTRATION & TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1#
main58821-02140-B0i200111-200405
TYPE B:REFER TO ILLUSTRATION,DARK GRAY,TRIM1#,8#
main58821-02150-B0i200111-200405
TYPE C:REFER TO ILLUSTRATION,DARK GRAY,TRIM1#,8#
main58821-02160-A0i200111-200405
TYPE C:REFER TO ILLUSTRATION,IVORY,TRIM0#
main58821-02160-B0i200111-200405
TYPE C:REFER TO ILLUSTRATION,GRAPHIC CARBON,TRIM1#
main58821-02160-B1i200405-200702
TYPE C:REFER TO ILLUSTRATION & TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1#
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-02060-A0i200111-200304
IVORY,TRIM0#
main58901-02060-B0i200111-200304
DK.GRAY,TRIM1#
main58901-02060-J0i200111-200405
DK.BLUE,TRIM8#
main58901-02110-A0i200111-200304
IVORY,TRIM0#
main58901-02110-B0i200111-200405
DK.GRAY,TRIM1#
main58901-02110-J0i200111-200405
DK.BLUE,TRIM8#
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
main58904-02030-A0i200111-200405
IVORY,TRIM0#
main58904-02030-B0i200405-200702
DK.GRAY,TRIM1#
main58904-02030-J0i200111-200405
DK.BLUE,TRIM8#
main58904-02040-A0i200405-200702
IVORY,TRIM0#
main58904-02040-B0i200111-200405
DK.GRAY,TRIM1#
main58904-02040-J0i200111-200405
DK.BLUE,TRIM8#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-02170-B0i200405-200702
DK.GRAY,TRIM1#
main58905-02170-J0i200111-200405
DK.BLUE,TRIM8#
main58905-02180-A0i200111-200405
IVORY,TRIM0#
main58905-02180-B0i200111-200405
DK.GRAY,TRIM1#
main58905-02190-B0i200111-200405
DK.GRAY,TRIM1#
main58905-02200-B0i200111-200405
LEATHER,DK.GRAY,TRIM1#
main58905-02300-A0i200405-200702
IVORY,TRIM0#
main58905-02300-B0i200405-200702
DK.GRAY,TRIM1#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-33030i200111-200405
58915PANEL, BOX BOTTOM
main58915-02010-A0i200405-200702
IVORY,TRIM0#
main58915-02010-B0i200405-200702
DK.GRAY,TRIM1#
main58915-02010-J0i200111-200405
DK.BLUE,TRIM8#
58916MAT, BOX BOTTOM
main58916-02050-A0i200111-200405
IVORY,TRIM0#
main58916-02050-B0i200405-200702
DK.GRAY,TRIM1#
main58916-02050-J0i200111-200405
DK.BLUE,TRIM8#
58951DDOOR, CONSOLE COMPARTMENT, OUTER
main58951-02120-B0i200111-200405
DK.GRAY,TRIM1#
main58951-02120-J0i200111-200405
DK.BLUE,TRIM8#
main58951-02260-A0i200405-200702
IVORY,TRIM0#
main58951-02260-B0i200405-200702
DK.GRAY,TRIM1#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-16020×2i200111-200405
58961AHINGE, CONSOLE COMPARTMENT DOOR MALE
main58907-12050i200111-200405
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
main58964-20040i200111-200405
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
main58965-20050i200111-200405
58972ABASE, CONSOLE COMPARTMENT DOOR LOCK
main58972-12010i200111-200405
58973PIN, CONSOLE COMPARTMENT DOOR LOCK
main58973-34010i200405
9008011522
main90080-11522
9016130003
main90161-30003
90167W0007
main90167-W0007
9054104079
main90541-04079
9356054012
main93560-54012
9356854512
main93568-54512
9356855014
main93568-55014

24 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota COROLLA HB (UKP)

This section contains 24 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota COROLLA HB (UKP). Key components include: COVER, SPARE SWITCH HOLE, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, PANEL, CONSOLE, UPPER, BOX SUB-ASSY, CONSOLE, REAR.
