Toyota COROLLA HB/LBSPEAKER

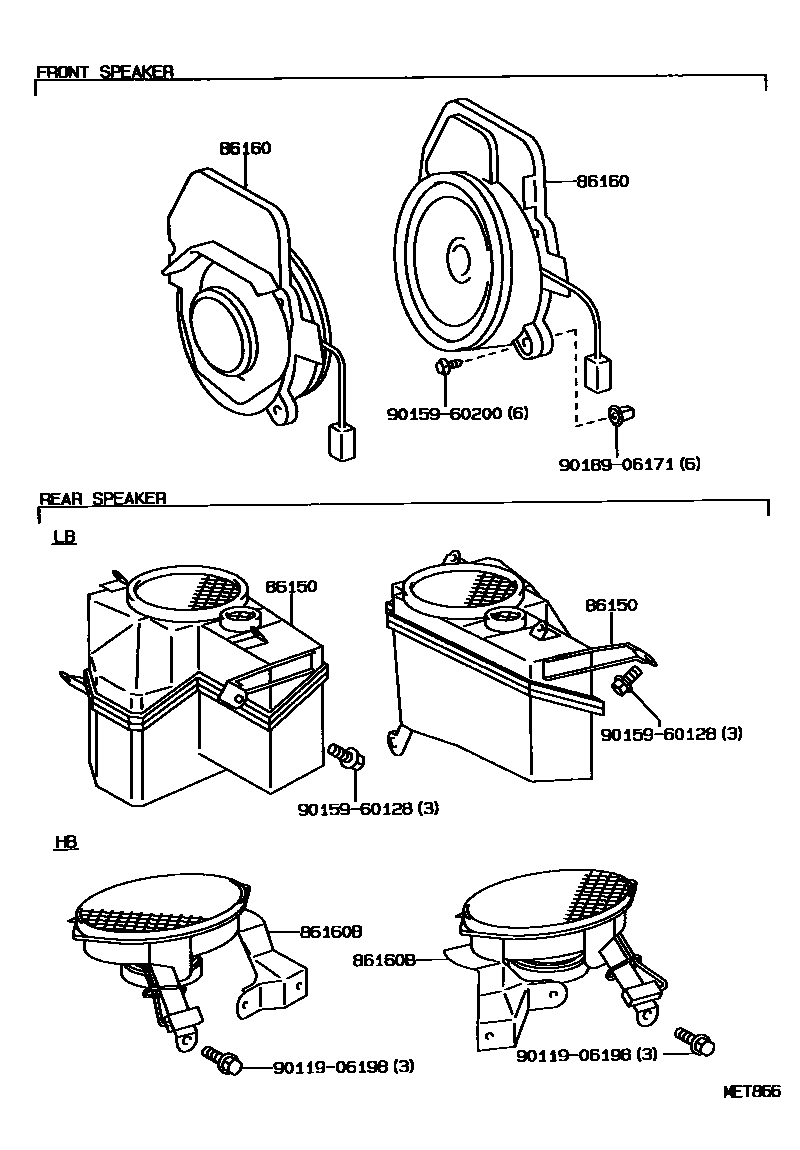

Parts diagram
86150SPEAKER ASSY, W/BOX, NO.1
main86150-12180i199205
RH
main86150-12190i199205
LH
86160SPEAKER ASSY, FRONT NO.1
main86160-12340i199205-199505
RH
main86160-12350i199205-199505
LH
main86160-12410i199505-199710
NEW ZEALAND SPEC & W(*PW),RH
main86160-12420i199205-199710
LH
main86160-12430i199205-199710
W(*PW & FULL FABRIC SEAT),RH
main86160-12440i199508-199704
W(POWER WINDOW),LH
86160BSPEAKER ASSY, REAR
main86160-12640i199206-199405
RH
main86160-12650i199206-199405
LH
9011906198
9015960128
9015960200
9018906171

7 parts on this diagram · 1 diagram in section

SPEAKER for Toyota COROLLA HB/LB

This section contains 7 genuine Toyota parts for the SPEAKER system of the Toyota COROLLA HB/LB. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR.
