Toyota COROLLA HB/LB — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-01020-B2i199205-199305

LIGHT GRAY,TRIM1#

main87810-01020-W5i199205-199305

LIGHT BLUE,TRIM8#

main87810-12230-S3i199508-199710

LIGHT GRAY,TRIM1#

main87810-12230-W5i199206-199508

LIGHT BLUE,TRIM8#

main87810-12240-S3i199508-199710

W(DAY/NIGHT TYPE),GRAY,TRIM1#

main87810-12240-W5i199508-199710

W(DAY/NIGHT TYPE),LIGHT BLUE,TRIM8#

main87810-12250-B0i199508-199704

LIGHT GRAY,TRIM1#

main87810-12250-J0i199508-199704

LIGHT BLUE,TRIM8#

main87810-12260-B0i199402-199605

LIGHT GRAY,TRIM1#

main87810-12260-J0i199508-199704

W(DAY/NIGHT TYPE),LIGHT BLUE,TRIM8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199205

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-01020-B0i199205-199206

DAY & NIGHT MIRROR,SHADOW GRAY,TRIM1#

main87834-01020-J2i199508-199710

DAY & NIGHT MIRROR,DARK BLUE,TRIM8#

main87834-12030-S3i199205-199206

GRAY,TRIM1#

main87834-12030-W5i199205-199206

LIGHT BLUE,TRIM8#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1A770i199608-199704

main87931-1A780i199608-199704

ELECTRIC REMOTE CONTROL MIRROR

main87931-1E070i199205-199608

ELECTRIC REMOTE CONTROL MIRROR

main87931-1E080i199608

main87931-1E460i199402-199605

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1E070i199505-199608

ELECTRIC REMOTE CONTROL MIRROR

main87961-1E080i199205-199505

MANUAL REMOTE CONTROL MIRROR

main87961-1E770i199608-199704

main87961-1E780i199608-199704

ELECTRIC REMOTE CONTROL MIRROR

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-1A770i199608-199704

main87910-1A780i199608-199704

ELECTRIC REMOTE CONTROL MIRROR

main87910-1E190i199608-199704

main87910-1E210i199206-199710

main87910-1E220i199206-199710

MANUAL REMOTE CONTROL MIRROR

main87910-1E240i199205

main87910-1E270i199205-199605

main87910-1E290i199205-199505

main87910-1E300i199205-199505

MANUAL REMOTE CONTROL MIRROR

main87910-1E340i199205-199505

main87910-1E410i199207-199608

ELECTRIC REMOTE CONTROL MIRROR

main87910-1E420i199505-199710

ELECTRIC REMOTE CONTROL MIRROR

main87910-1E430i199505-199710

main87910-1E440i199205-199605

ELECTRIC REMOTE CONTROL MIRROR

main87910-1E470-A0i199402-199605

SUPER WHITE 2,040

main87910-1E470-B1i199402-199505

SILVER MICA M.,192

main87910-1E470-B2i199505-199605

BLUISH GRAY ME.,182

main87910-1E470-D0i199402-199605

SUPER RED 2,3E5

main87910-1E470-G1i199505-199605

MEDIUM GREEN M.M.,6P0

main87910-1E470-H0i199402-199505

DEEP TURQUOISE M.,747

main87910-1E470-J0i199402-199505

DARK BLUE MICA M.,8G5

main87910-1E470-J1i199505-199605

DARK BLUE MICA,8K8

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-1E180i199206-199704

main87940-1E190i199207-199608

main87940-1E220i199505-199710

MANUAL REMOTE CONTROL MIRROR

main87940-1E240i199205

main87940-1E250-A0i199402-199605

SUPER WHITE 2,040

main87940-1E250-B1i199402-199505

SILVER MICA M.,192

main87940-1E250-B2i199505-199605

BLUEISH GRAY ME.,182

main87940-1E250-D0i199402-199605

SUPER RED 2,3E5

main87940-1E250-G1i199505-199605

MD.GREEN M.M.,6P0

main87940-1E250-H1i199402-199505

DEEP TURQUOISE M.,747

main87940-1E250-J0i199402-199505

DARK BLUE MICA M.,8G5

main87940-1E250-J1i199505-199605

DARK BLUE MICA,8K8

main87940-1E260i199205-199605

main87940-1E270i199205-199605

MANUAL REMOTE CONTROL MIRROR

main87940-1E300i199205-199505

main87940-1E330i199205-199505

main87940-1E340i199205-199505

MANUAL REMOTE CONTROL MIRROR

main87940-1E410i199207-199608

ELECTRIC REMOTE CONTROL MIRROR

main87940-1E420i199505-199710

ELECTRIC REMOTE CONTROL MIRROR

main87940-1E430i199505-199710

main87940-1E440i199205-199605

ELECTRIC REMOTE CONTROL MIRROR

main87940-1E770i199608-199704

main87940-1E780i199608-199704

ELECTRIC REMOTE CONTROL MIRROR

9010506216

main90105-06216

9014950035

main90149-50035

9033320001

main90333-20001

9095901459

main90959-01459

9151260614

main91512-60614

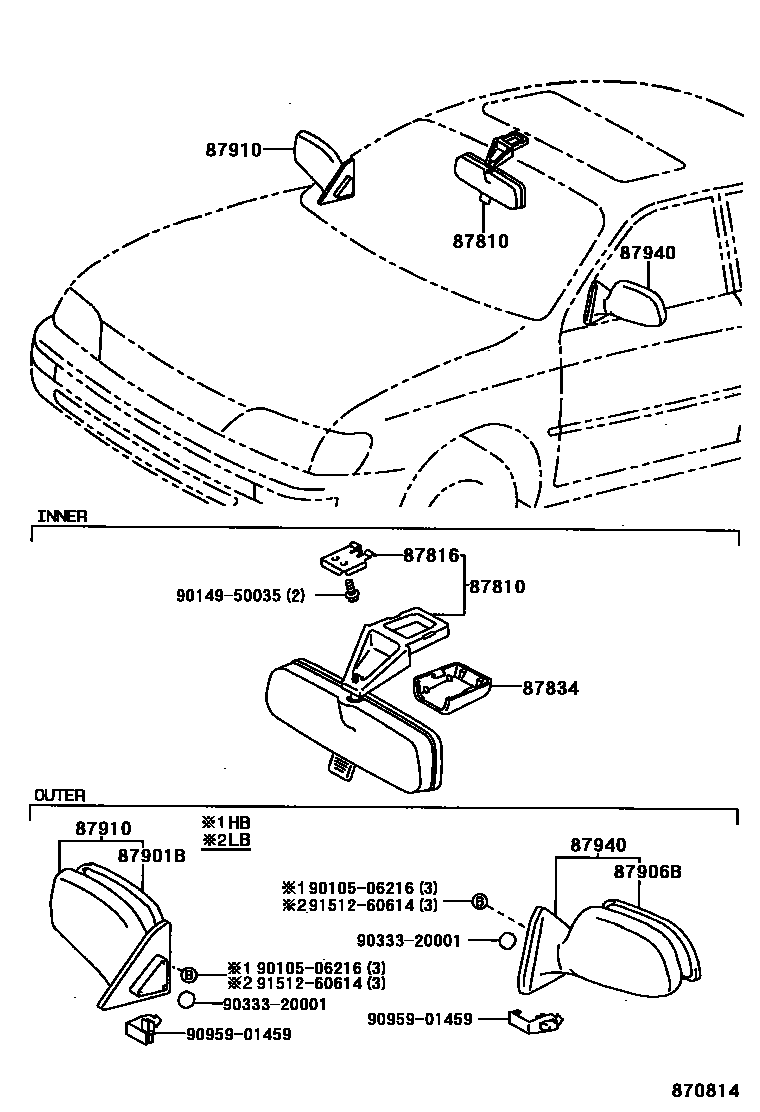

12 parts on this diagram · 1 diagram in section

MIRROR for Toyota COROLLA HB/LB

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota COROLLA HB/LB. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
