Toyota COROLLA HB/LB — INDICATOR

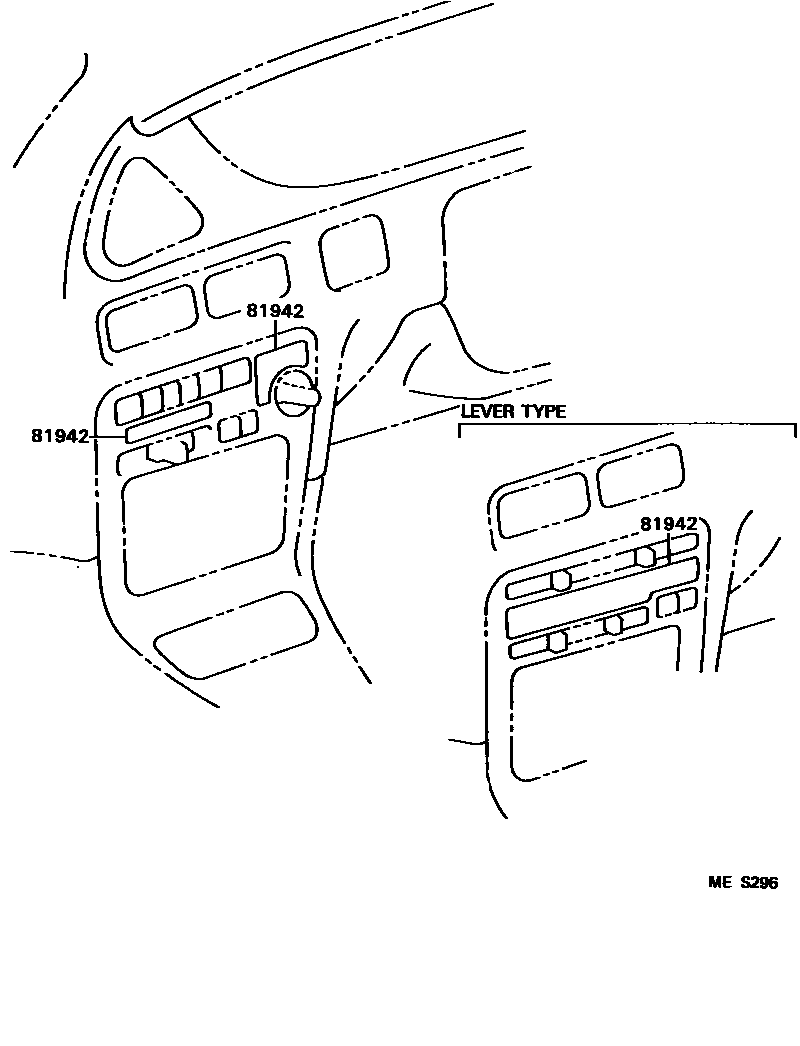

Parts diagram
81942SHEET, HEATER CONTROL NAME
main81942-12310i199205-199305
W(HEATER)
main81942-12311i199402-199710
main81942-12311i199305
W(HEATER)
main81942-12340i199205-199305
W(*BV)
main81942-12341i199308
main81942-12341i199305-199308
W(*BV)
main81942-12420i199205-199308
main81942-12430i199205-199704
W(HEATER)
main81942-12440i199308-199704
main81942-12440i199205-199308
W(*BV)

1 parts on this diagram · 1 diagram in section
