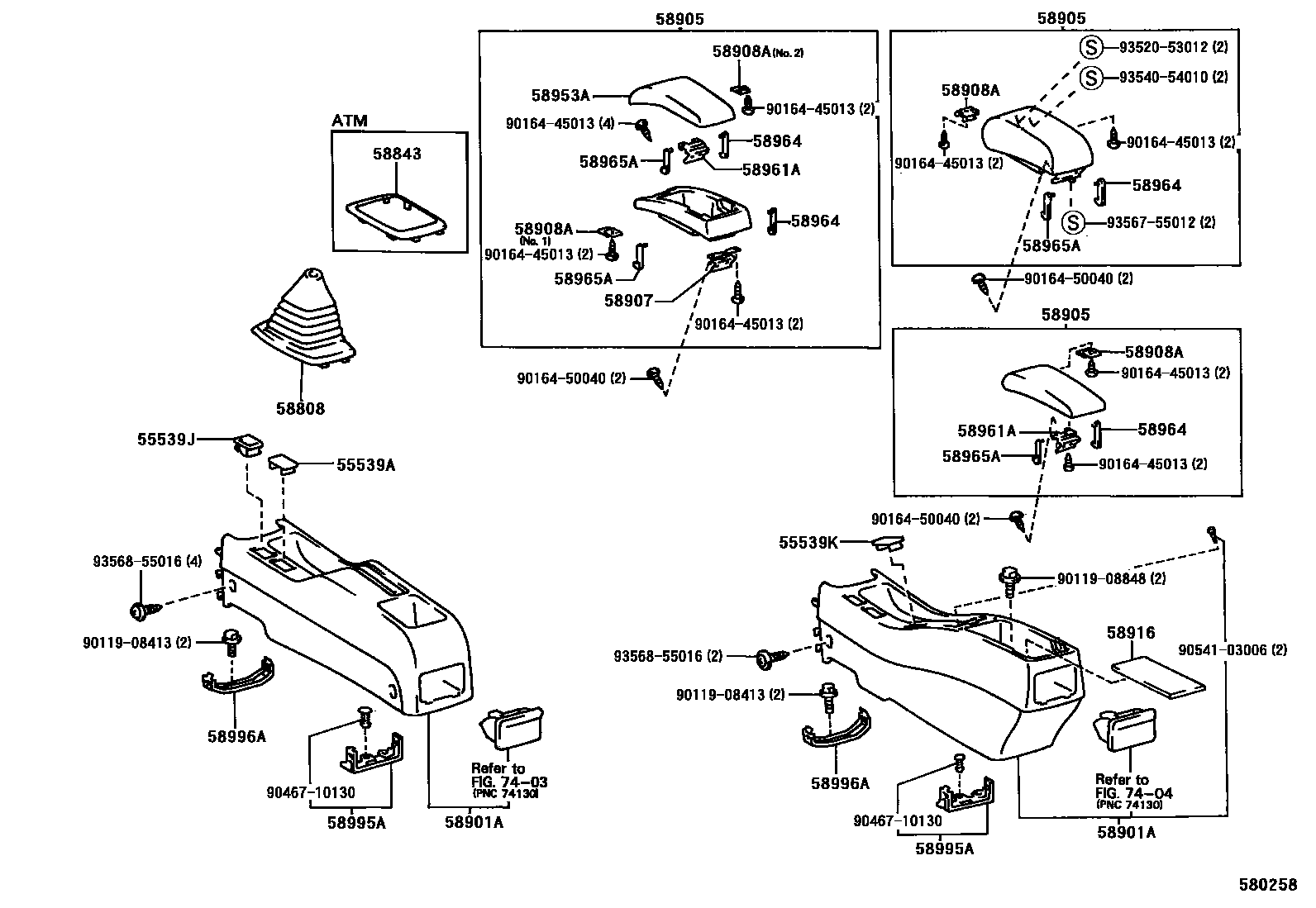

Toyota COROLLA HB/LB — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-12120-B0iAE101,EE100..GL,GLI,STD,XL199205-199206

SHADOW GRAY,TRIM1#

sub55539-32010

main55539-12120-J0iAE101..GCC199607-199704

DARK BLUE,TRIM8#

sub55539-32010

55539JCOVER, SPARE SWITCH HOLE

main55539-20020-03iAE101,EE100..GL,GLI,STD,XL199205-199206

SHADOW GRAY,TRIM1#

main55539-20020-P0iAE10#,EE100199208-199710

SHADOW GRAY,TRIM1#

main55539-20020-W3iAE101,EE100..GL,GLI,STD,XL199205-199206

DARK BLUE,TRIM8#

55539KCOVER, SPARE SWITCH HOLE

main55539-12120-B0iAE10#..GL,GLI,SI199205-199710

SHADOW GRAY,TRIM1#

sub55539-32010

main55539-12120-J0iAE10#..(GL,GLI,SI)..(GCC,GEN)199205-199607

DARK BLUE,TRIM8#

sub55539-32010

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12111-P0iAE101,EE100..MTM199205-199312

SHADOW GRAY,TRIM1#

main58808-12111-W3iAE101,EE100..MTM199205-199312

DARK BLUE,TRIM8#

main58808-12112-P0iAE10#,EE100..MTM199312-199710

SHADOW GRAY,TRIM1#

main58808-12112-W3iAE10#,EE100..MTM..(GCC,GEN)199312-199710

DARK BLUE,TRIM8#

58843BEZEL, SHIFTING HOLE

main58843-12060-P0iAE101,EE100..ATM199205-199312

SHADOW GRAY,TRIM1#

main58843-12060-W3iAE101,EE100..ATM199205-199312

DARK BLUE,TRIM8#

main58843-12080-B0iAE10#,EE100..ATM199312-199710

SHADOW GRAY,TRIM1#

main58843-12080-J0iAE10#,EE100..ATM..(GCC,GEN)199312-199710

DARK BLUE,TRIM8#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12220-B0iAE10#..GL,GLI,SI199205-199710

SHADOW GRAY,TRIM1#

main58901-12220-J0iAE10#..(GL,GLI,SI)..(GCC,GEN)199205-199710

DARK BLUE,TRIM8#

main58901-12230-P0iEE100199205-199206

SHADOW GRAY,TRIM1#

main58901-12230-W3iAE101,EE100..STD,XL,XLI199206-199710

DARK BLUE,TRIM8#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12110-B0iAE10#..LB..GEN199205

SHADOW GRAY,TRIM1#

main58905-12110-J0iAE10#..LB..GEN199205

DARK BLUE,TRIM8#

main58905-12120-B0iAE10#..ARL,GCC199207-199704

SHADOW GRAY,TRIM1#

main58905-12120-J0iAE101..GCC199207-199704

DARK BLUE,TRIM8#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12030iAE10#..LB..GEN199205

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12020-B0iAE10#..LB..GEN199205

SHADOW GRAY,TRIM1#,NO.2

main58908-12020-J0iAE10#..LB..GEN199205

DARK BLUE,TRIM8#,NO.2

main58908-32020iAE10#..ARL,GCC199207-199704

sub58908-12080

58916MAT, BOX BOTTOM

main58916-12040iAE10#..GL,GLI,SI199205-199405

58953ADOOR, CONSOLE COMPARTMENT, UPPER

main58953-12040-B0iAE10#..LB..GEN199205

SHADOW GRAY,TRIM1#

main58953-12040-J0iAE10#..LB..GEN199205

DARK BLUE,TRIM8#

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-12080iAE10#..LB..GEN199205

main58961-12090iAE10#..ARL,GCC199207-199704

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12040iAE10#..ARL,GCC199207-199704

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12040iAE10#..ARL,GCC199207-199704

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12080iAE10#,EE100..MTM199205

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12090iAE101,EE100..STD,XL,XLI199205

9011908413

main90119-08413

9011908848

main90119-08848

9016445013

main90164-45013

9016450040

main90164-50040

9046710130

main90467-10130

9054103006

main90541-03006

9352053012

main93520-53012

9354054010

main93540-54010

9356755012

main93567-55012

9356855016

main93568-55016

26 parts on this diagram · 1 diagram in section
