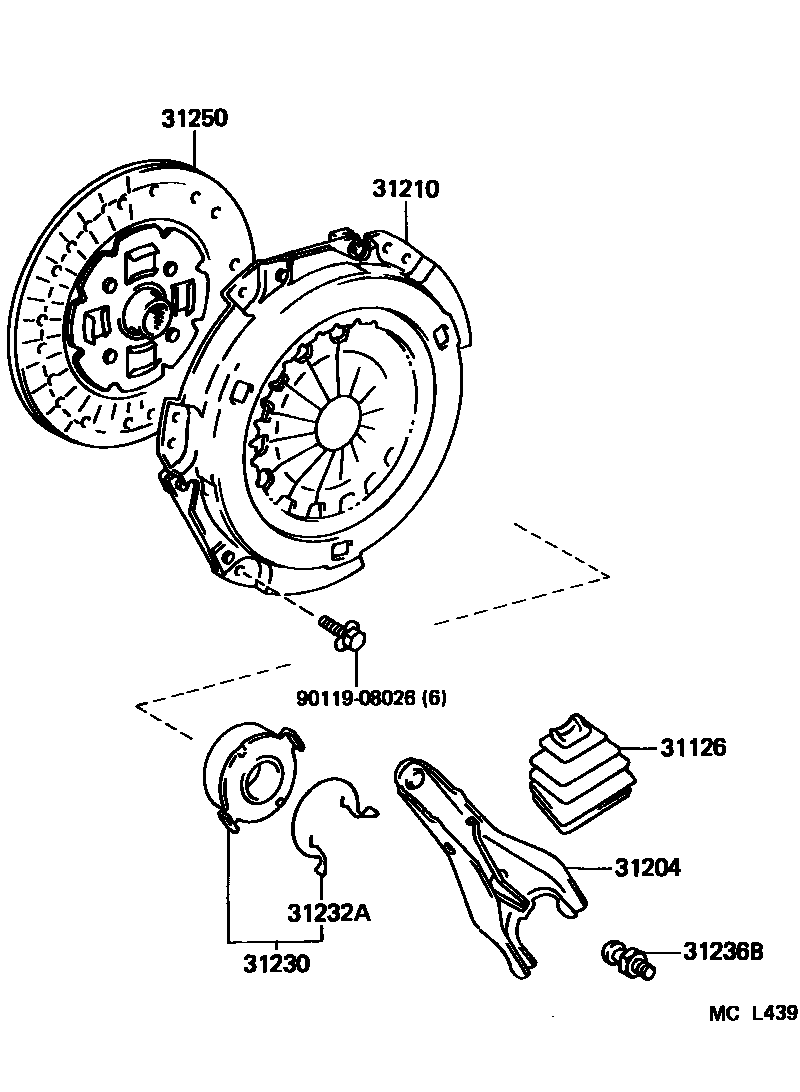

Toyota COROLLA HB/LB — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051i199205-199608

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050i199205-199710

main31204-17010i199608-199710

31210COVER ASSY, CLUTCH

main31210-12151i199402-199503

main31210-12152i199503-199710

main31210-12180i199205-199710

main31210-12200i199205-199503

main31210-12201i199503

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140i199205-199710

main31230-12170i199205-199710

31232ACLIP, RELEASE BEARING HUB

main31232-12040i199205-199710

TYPE 1

main31232-12050i199205-199608

TYPE 2

main31232-12060i199205-199608

TYPE 3

main31232-12070i199205-199608

TYPE 4

main31232-16031i199205-199710

TYPE 5

31236BSUPPORT, RELEASE FORK

main31236-12011i199205-199710

main31236-12020i199205-199608

31250DISC ASSY, CLUTCH

main31250-10120i199205-199509

main31250-12310i199205-199505

main31250-12320i199402-199505

main31250-12360i199505-199710

main31250-12370i199511-199708

main31250-12380i199505-199511

main31250-12390i199509-199710

main31250-20280i199708

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section

CLUTCH & RELEASE FORK for Toyota COROLLA HB/LB

This section contains 8 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota COROLLA HB/LB. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
