Toyota COROLLA HB/LB — WINDSHIELD WASHER

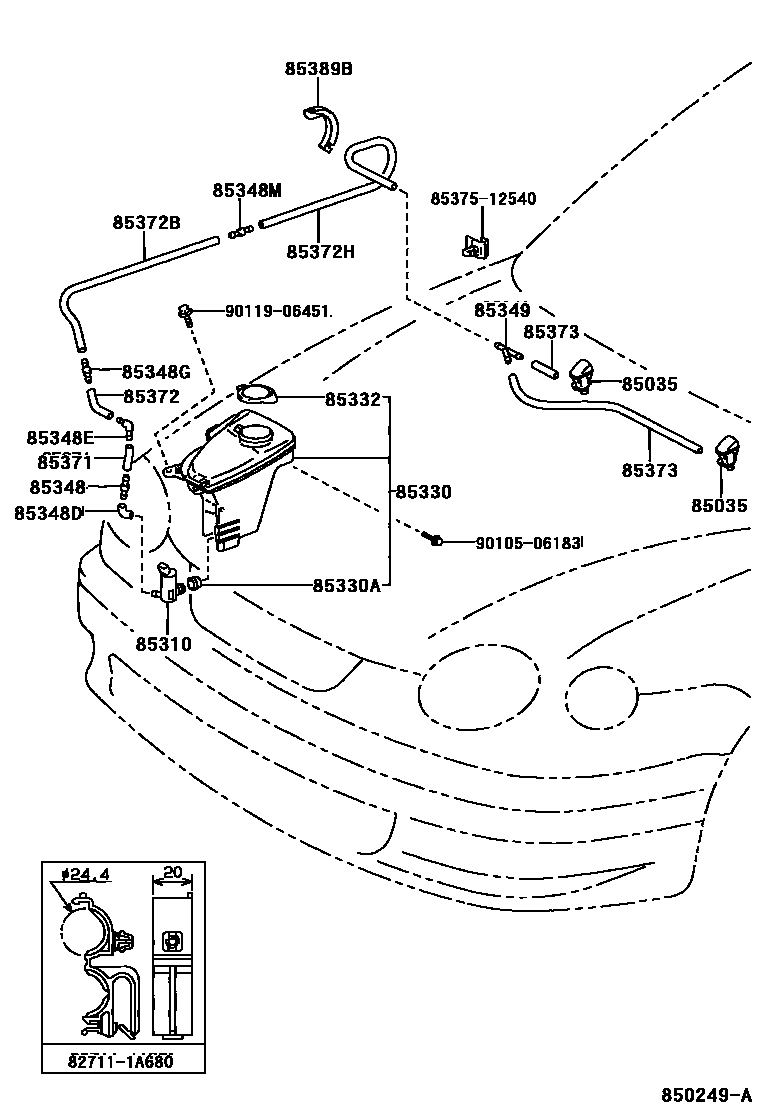

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-02040×2i199809-199911
main85381-02050×2i199809-199911
main85381-02060×2i199911-200111
main85381-02070×2i199911-200111
main85381-12050×2i200001-200109
main85381-12100×2i199704-199910
main85381-12170i199809-199812
G6R SPEC
main85381-12180i199809-199812
G6R SPEC
main85381-12190×2i199910-200107
main85381-12200×2i199910-200109
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-05030i199809-200111
main85330-44010i199911-200111
W(HEADLAMP CLEANER)
85330JAR ASSY, WINDSHIELD WASHER
main85315-02050i199809-200111
main85315-02060i199809-199911
W(HEADLAMP CLEANER)
main85315-12221i199704-199910
main85315-12240i199704-199910
W(HEADLAMP CLEANER)
main85315-12260i199911-200111
W(HEADLAMP CLEANER)
main85315-12430i199910-200109
W(HEADLAMP CLEANER)
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i199910-200111
85332CAP, WINDSHIELD WASHER JAR
main85316-02050i199809-200111
main85316-12221i199910-200109
main85316-42011i199910-200111
W(HEADLAMP CLEANER)
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85334-22480i199910-200109
main85375-10260i199808-199910
W(REAR WIPER)
main85378-05030i199809-200111
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85336-12410i199704-199910
main85355-32110i199910-200111
W(HEADLAMP CLEANER)
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85317-12410i199704-199910
main85395-0D010i199911-200111
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85319-12410i199910-200111
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85334-22470i199910-200111
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-14390i199704-199910
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90069-46002i199911-200111
main90099-33075i199704-199910
L=1100(*H,L=95)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33075i199910-200109
L=1100(*H,L=100)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90099-33712i199910-200111
L=1120
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90099-33080i199910-200111
L=1450(*H,L=650)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080i199910-200111
L=1450(*H,L=40)
85389BPROTECTOR, WINDSHIELD WASHER
main85389-12700i199910-200111
827111A680WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A680
8537512540HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)
main85375-12540
9010506183
main90105-06183
9011906451
main90119-06451

21 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota COROLLA HB/LB

This section contains 35 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA HB/LB. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
