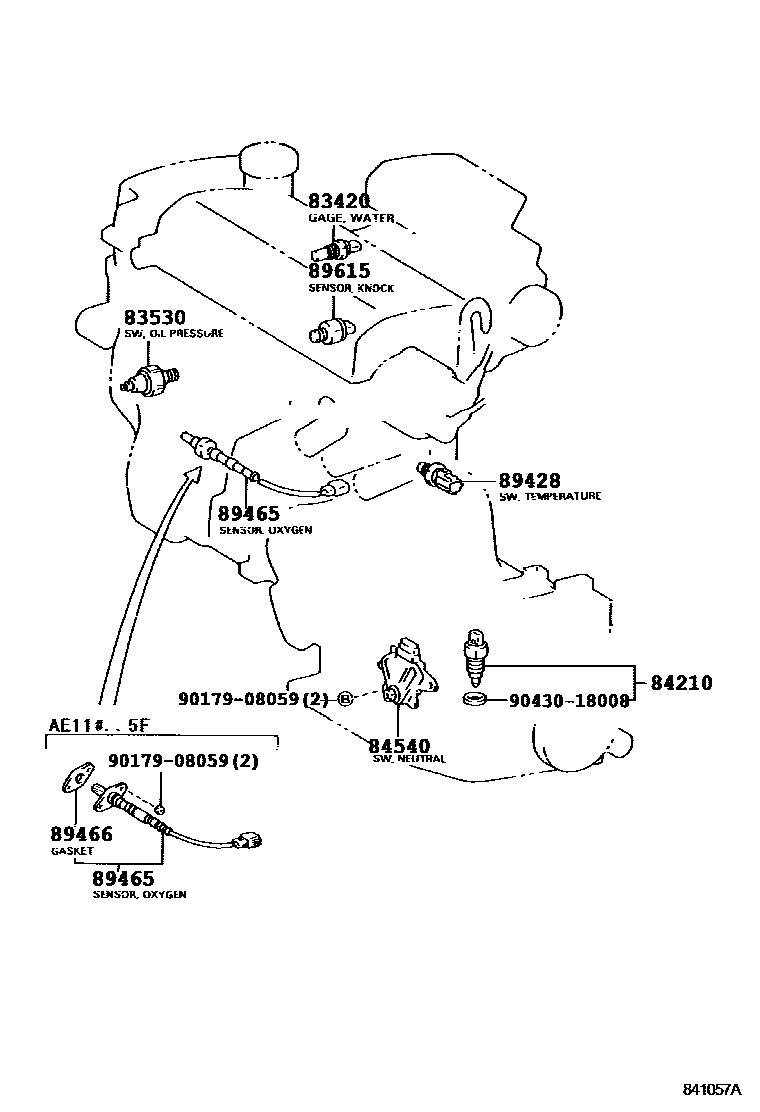

Toyota COROLLA HB/LB — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE ROOM 0008 1INSTRUMENT PANEL SWITCH 0009 1INSTRUMENT PANEL SWITCH 0010 1INSTRUMENT PANEL SWITCH 0011 1INSTRUMENT PANEL SWITCH 0012 1INSTRUMENT PANEL SWITCH 0013 1INSTRUMENT PANEL SWITCH 0014 1INSTRUMENT PANEL SWITCH 0015 1INSTRUMENT PANEL SWITCH 0016 1COWL 0017 1COWL 0018 1COMBINATION SWITCH 0019 1ROOF,FLOOR,DOOR & LUGGAGE 0020 1ROOF,FLOOR,DOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-05010iAE111..UKP199809-199911

(L)

main83420-12030iWZE110199912-200111

main83420-20020iCE110199704-199910

main83420-20040iAE111..UKP199809-199911

(J)

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-02040iWZE110199912-200111

main83530-05010iZZE11#..UKP199911-200111

JAEGER

main83530-28020iZZE11#;AE111,EE111..UKP199809-200111

DENSO

main83530-30090iAE111,EE111199704-199803

main83530-30100iCE110199704-199803

main83530-60010iCE110199803-199910

main83530-60020iAE111,EE111..UKP199809-199911

(J)

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iCDE110,ZZE11#..MTM;AE111,EE111..UKP..5F199809-200111

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12230iZZE112..JPP..4FC199910-200109

main84540-16050iAE111,EE111..UKP..ATM199809-199911

main84540-32110iZZE112..UKP..4FC199911-200111

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAE111,EE111..JPP199704-199910

main89428-33010iCDE110,WZE110199912-200111

89465SENSOR, OXYGEN

main89465-02040iZZE111199910-200111

FRONT

main89465-02050iZZE111199910-200111

REAR

main89465-12520iAE111..JPP..4FC199704-199910

main89465-12540iZZE112199910-200111

FRONT

main89465-12550iZZE112199910-200111

REAR

main89465-19675iEE111..UKP199809-199911

main89465-19745iAE111..JPP..LB..5F;AE111..LHD..HB..5F..LUNA;AE111..HB..MTM..(G6,TERRA)199704-199910

89466GASKET, OXYGEN SENSOR

main89466-12020iAE111,EE111..UKP..(3FC,5F)199809-199911

89615SENSOR, KNOCK CONTROL

main89615-02010iZZE111199910-200111

main89615-12030iAE111199704-199809

TOYOTA

main89615-12090iZZE112199910-200111

main89615-22030iAE111,EE111..JPP199704-199909

MATSUSHITA

main89615-22040iEE111..UKP199809-199909

DENSO

main89615-22050iAE111..UKP199809-199911

TOYOTA

main89615-52010iEE111..UKP199909-199911

MATSUSHITA

9017908059

main90179-08059

9043018008

main90430-18008

10 parts on this diagram · 20 diagrams in section
