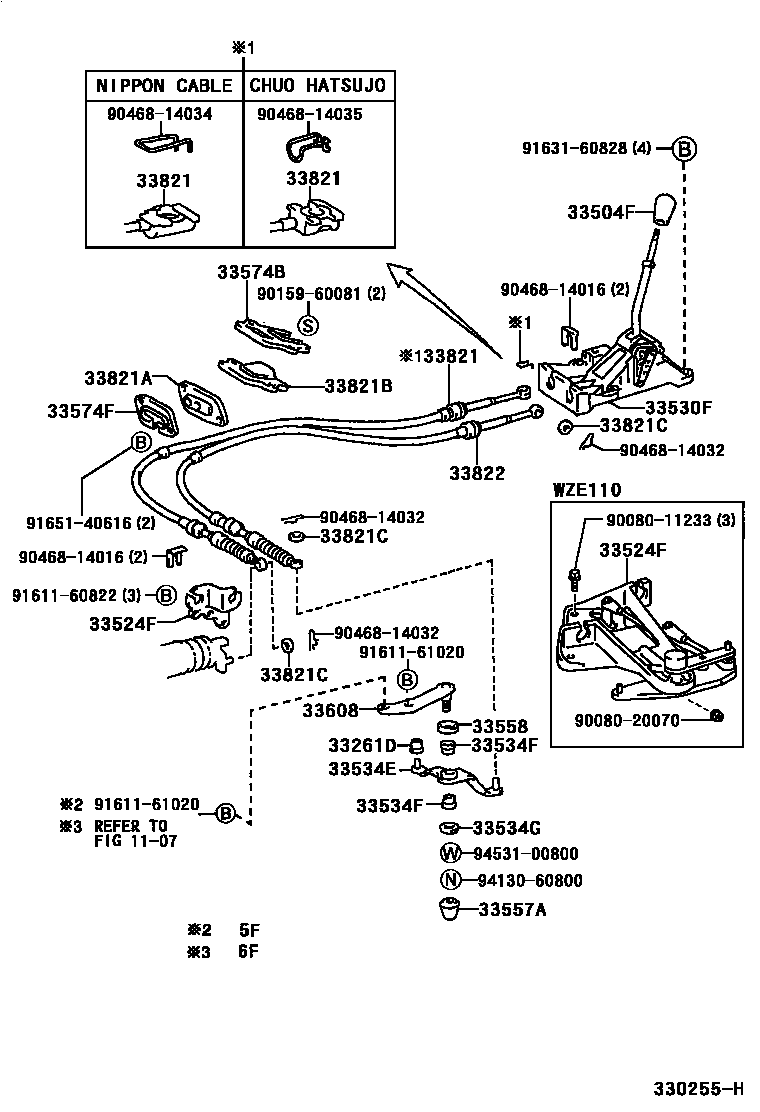

Toyota COROLLA HB/LB — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1107

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iZZE11#..MTM;AE111,EE111..UKP..5F199704-200110

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-05010-B0iAE111,EE111..UKP..5F199809-199911

SHADOW GRAY,TRIM1#

sub33504-12180

main33504-05010-B0iWZE110,ZZE11#..UKP..5F199911-200111

SHADOW GRAY,TRIM16

sub33504-12180

main33504-05010-B1iWZE110,ZZE11#..UKP..5F199911-200111

DK.CHARCOAL,TRIM11

sub33504-12180

main33504-05010-B1iAE111,EE111..UKP..5F199809-199911

DK.CHARCOAL,TRIM0#,1#

sub33504-12180

main33504-12180-B4iAE111,CE110,EE111..5F..(LUNA,TERRA)199704-199808

DK.CHARCOAL,TRIM1#

sub33504-12180

main33504-12180-B4iAE111,CE110,EE111..JPP..5F..(LUNA,TERRA)199808-199910

DK.CHARCOAL,TRIM0#,10

sub33504-12180

main33504-12180-B4iCDE110,WZE110,ZZE11#..JPP..5F..(SOL,TERRA)199910-200109

DK.CHARCOAL,TRIM11

sub33504-12180

main33504-12180-P0iAE111,CE110,EE111..JPP..5F..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

sub33504-12180

main33504-12180-P0iCDE110,WZE110,ZZE11#..JPP..5F..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

sub33504-12180

main33504-12180-P0iAE111,CE110,EE111..5F..(LUNA,TERRA)199704-199808

SHADOW GRAY,TRIM0#

sub33504-12180

main33504-12180-P0iAE111,EE111..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE,SHADOW GRAY,,TRIM12

sub33504-12180

main33504-12220-C0iAE111,EE111..G6199704-200111

BLACK,TRIM1#

sub33504-13071

main33504-12230-C0iAE111..G6199809-199812

G6R SPEC,BLACK,TRIM12

sub33504-12220

main33504-14050-B6iCE110,EE111..STD199704-199910

DK.CHARCOAL,TRIM1#,KOJIMA

sub33504-14050

sub33504-14070

main33504-14070-B5iCE110,EE111..STD199704-199910

DK.CHARCOAL,TRIM10,TOYODA GOSEI

sub33504-14070

sub33504-14050

main33504-14070-B5iZZE111..STD199910-200107

DK.CHARCOAL,TRIM1#

sub33504-14070

sub33504-14050

main33542-12210-B0iAE111,EE111..RHD..ATM199704-199808

SHADOW GRAY,TRIM0#

sub33542-12210

sub33542-12211

sub33542-12181

main33542-12210-B0iAE111,EE111..UKP..RHD..ATM199809-199911

SHADOW GRAY,TRIM1#

sub33542-12210

sub33542-12211

sub33542-12181

main33542-12210-B0iZZE112..RHD..4FC199910-200111

SHADOW GRAY,TRIM16

sub33542-12210

sub33542-12211

sub33542-12181

main33542-12210-B0iAE111,EE111..JPP..RHD..ATM199808-199910

SHADOW GRAY,TRIM12

sub33542-12210

sub33542-12211

sub33542-12181

main33542-12210-B4iAE111,EE111..RHD..ATM199704-199808

DK.CHARCOAL,TRIM1#

sub33542-12210

sub33542-12211

sub33542-12181

main33542-12210-B4iZZE112..RHD..4FC199910-200111

DK.CHARCOAL,TRIM11

sub33542-12210

sub33542-12211

sub33542-12181

main33542-12210-B4iAE111,EE111..UKP..RHD..ATM199809-199911

DK.CHARCOAL,TRIM0#,1#

sub33542-12210

sub33542-12211

sub33542-12181

main33542-12210-B4iAE111,EE111..JPP..RHD..ATM199808-199910

DK.CHARCOAL,TRIM0#,10

sub33542-12210

sub33542-12211

sub33542-12181

main33542-12230-B1iAE111,EE111..LHD..ATM199704-199808

DK.CHARCOAL,TRIM1#

sub33542-12230

main33542-12230-B1iZZE112..LHD..4FC199910-200111

DK.CHARCOAL,TRIM11

sub33542-12230

main33542-12230-B1iAE111,EE111..UKP..LHD..ATM199809-199911

DK.CHARCOAL,TRIM0#,1#

sub33542-12230

main33542-12230-B1iAE111,EE111..JPP..LHD..ATM199808-199910

DK.CHARCOAL,TRIM0#,10

sub33542-12230

main33542-12230-B2iZZE112..LHD..4FC199910-200111

SHADOW GRAY,TRIM16

sub33542-12230

main33542-12230-B2iAE111,EE111..LHD..ATM199704-199808

SHADOW GRAY,TRIM0#

sub33542-12230

main33542-12230-B2iAE111,EE111..JPP..LHD..ATM199808-199910

SHADOW GRAY,TRIM12

sub33542-12230

main33542-12230-B2iAE111,EE111..UKP..LHD..ATM199809-199911

SHADOW GRAY,TRIM1#

sub33542-12230

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-02010iWZE110199912-200110

main33524-12011iAE111,EE111..JPP..MTM199704-200110

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-02030iAE111,EE111,ZZE11#..UKP..RHD..5F199809-200111

main33530-02040iAE111,CE110,EE111..JPP..LHD..5F199907-199910

(L)

main33530-02040iAE111,EE111,ZZE11#..UKP..LHD..5F199809-200111

main33530-12630iAE111,CE110,EE111..JPP..RHD..5F199704-200107

main33530-12681iAE111,CE110,EE111..JPP..LHD..5F199907-199910

(J)

main33530-12681iCDE110,ZZE11#..JPP..LHD..5F199704-200109

main33530-12710iAE111,EE111..RHD..G6199704-200111

main33530-12720iZZE11#..LHD..6F199704-200111

main33530-12730iWZE110..RHD199912-200111

main33530-12740iWZE110..LHD199912-200111

33534ECRANK, SELECTING BELL, NO.2

main33534-10060iEE111..JPP..5F199704-200110

main33534-12091iCDE110200008-200109

main33534-12100iAE111,EE111..G6199704-200110

main33534-16051iZZE112..5F;AE111..UKP..5F199704-200110

main33534-33010iCE110199704-199910

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022iCDE110,ZZE11#..MTM;AE111,EE111..UKP..5F199704-200110

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iAE111,CE110,EE111..JPP..MTM199704-200110

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iCDE110,ZZE11#..MTM;AE111,EE111..UKP..5F199704-200110

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iCDE110,ZZE11#..MTM;AE111,EE111..UKP..5F199704-200110

main33558-32010iCE110199704-199910

33574BRETAINER, SHIFT CABLE GROMMET, NO.2

main33574-12060iAE111,EE111..UKP..5F;CDE110,WZE110,ZZE11#..MTM199704-200111

33574FRETAINER, DUST SEAL (FOR FLOOR SHIFT)

main33574-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main33574-12080iCDE110,WZE110,ZZE11#..JPP199704-200109

33608SUPPORT SUB-ASSY, SELECTING BELLCRANK

main33608-10032iZZE111..5F;EE111..UKP..5F199704-200110

main33608-12031iCDE110200008-200109

main33608-12040iAE111,EE111..G6199704-200110

main33608-16021iZZE112..5F;AE111..UKP..5F199704-200110

main33608-33010iCE110199704-199910

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-02140iAE111,EE111..UKP..5F199809-199911

main33821-02180iZZE11#..UKP..5F199911-200111

main33821-12720iAE111,EE111..JPP..5F199704-199910

CHUO HATSUJO

main33821-12730iAE111,EE111..JPP..5F199704-199910

NIPPON CABLE

main33821-12740iCE110199704-199910

main33821-12810iZZE112..6F..SOL;ZZE11#..JPP..MTM199910-200111

main33821-12830iWZE110199912-200111

main33821-1A120iCDE110200008-200109

33821AGROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main90480-01400iAE111,EE111..UKP..5F;CDE110,WZE110,ZZE11#..MTM199704-200111

33821BGROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)

main90480-01398iAE111,CE110,EE111..JPP..MTM199704-200111

main90480-01672iAE111,EE111..JPP..ATM199704-200109

main90480-01678iAE111,EE111,ZZE112..UKP..ATM199809-200111

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08077iAE111,EE111..UKP..5F199704-199911

OD=30,TRANSAXLE SIDE

main90201-08077iCDE110,WZE110,ZZE11#..MTM199910-200111

OD=30

main90201-10042iCDE110,WZE110,ZZE11#..MTM199910-200111

main90201-10042iAE111,EE111..UKP..5F199704-199911

SHIFT LEVER SIDE

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-02040iAE111,EE111..UKP..5F199809-199911

main33822-02060iZZE11#..UKP..5F199911-200111

main33822-12290iAE111,EE111..JPP..5F199704-199910

main33822-12310iCE110199704-199910

main33822-12370iAE111,EE111..G6199704-199910

main33822-12380iZZE11#..6F199910-200111

main33822-12390iWZE110199912-200111

main33822-12400iZZE11#..JPP..5F199910-200109

main33822-12470iCDE110200008-200109

9008011233

main90080-11233

9008020070

main90080-20070

9015960081

main90159-60081

9046814016

main90468-14016

9046814032

main90468-14032

9046814034

main90468-14034

9046814035

main90468-14035

9161160822

main91611-60822

9161161020

main91611-61020

9163160828

main91631-60828

9165140616

main91651-40616

9413060800

main94130-60800

9453100800

main94531-00800

31 parts on this diagram · 6 diagrams in section
