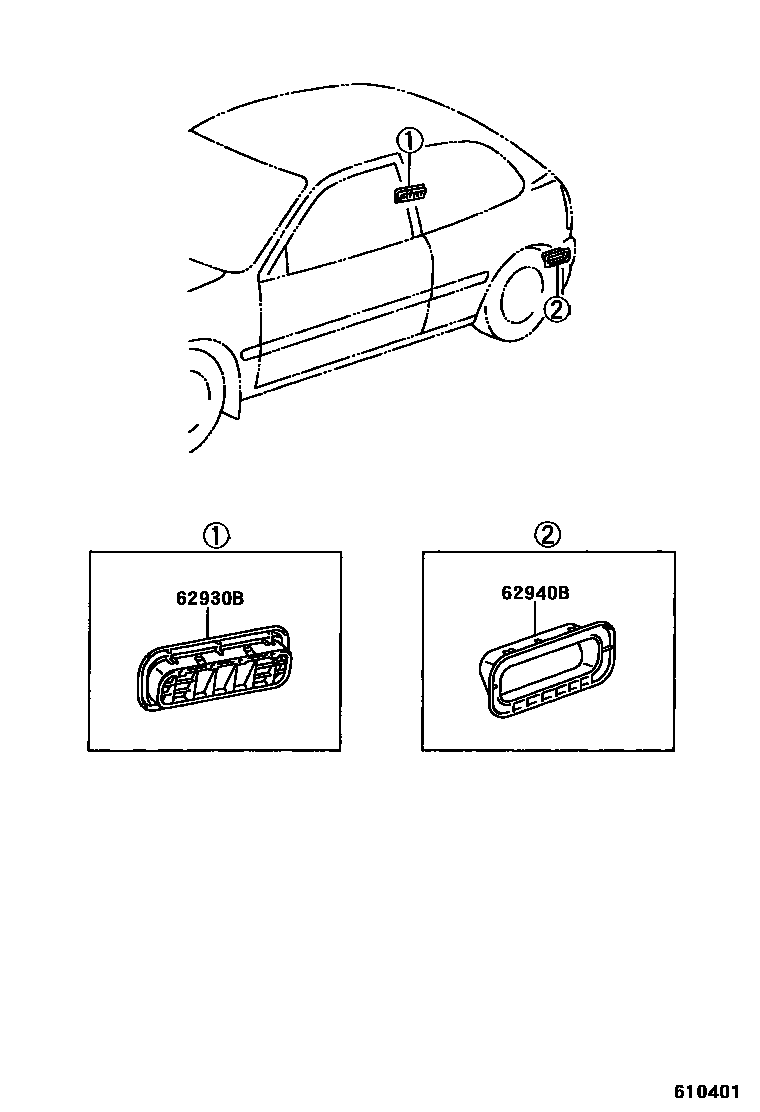

Toyota COROLLA HB/LB — ROOF SIDE VENTILATOR

62930BDUCT ASSY, QUARTER VENT, RH

main62930-02030iAE111,EE111..UKP199809-199909

main62930-12160iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-199908

sub62930-12161

main62940-05030iAE111,EE111,WZE110,ZZE11#..UKP199909-200111

main62940-12160iAE111,CE110,EE111..JPP199908-200109

sub62940-12162

62940BDUCT ASSY, QUARTER VENT, LH

main62940-05030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main62940-12160iCDE110,WZE110,ZZE11#..JPP199704-200109

sub62940-12162

2 parts on this diagram · 1 diagram in section
