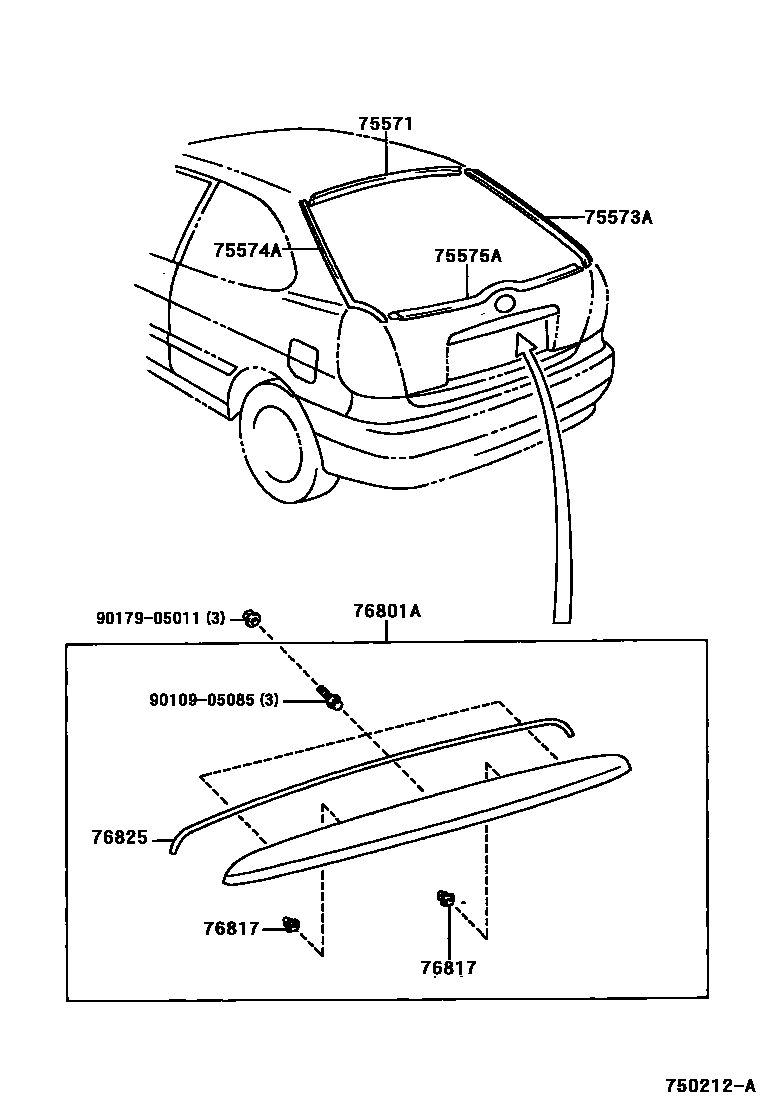

Toyota COROLLA HB/LB — REAR MOULDING

0001 1 0002 1

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-02070iWZE110,ZZE11#..UKP199911-200111

(L)

main75571-02070iAE111,EE111..UKP199809-199810

main75571-12810iAE111,EE111..UKP;CDE110,ZZE11#..JPP..LB199704-200109

main75571-12810iWZE110,ZZE11#..UKP199911-200111

(J)

main75571-12840iAE111,CE110,EE111..HB199704-200107

sub75575-12430

75573AMOULDING, BACK WINDOW, OUTSIDE RH

main75573-12310iCDE110,WZE110,ZZE11#..HB199704-200107

75574AMOULDING, BACK WINDOW, OUTSIDE LH

main75574-12160iCDE110,WZE110,ZZE11#..HB199704-200107

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-12430iCDE110,WZE110,ZZE11#..HB199704-200107

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-02090-A0iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

SUPER WHITE 2,040

main76801-02090-B0iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

SILVER ME,199

main76801-02090-C0iAE111,EE111,WZE110,ZZE11#..UKP199809-200104

BLACK ME,205

main76801-02090-D0iAE111,EE111..UKP199809-199911

CORAL REEF M.M.,3L6

main76801-02090-D2iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

SU.RED 3,3J6

main76801-02090-D4iWZE110,ZZE11#..UKP199911-200111

RED M.M.,3N8

main76801-02090-F0iWZE110,ZZE11#..UKP199911-200104

GOLD ME.,581

main76801-02090-G0iAE111,EE111..UKP199809-199911

GREEN M.M.,6P5

main76801-02090-G1iAE111,EE111,WZE110,ZZE11#..UKP199809-200007

DK.GREEN M.M.,6P3

main76801-02090-G2iWZE110,ZZE11#..UKP199911-200111

GREEN MC.,6R8

main76801-02090-J0iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

BLUE M.M.,8L5

main76801-02090-J1iAE111,EE111,WZE110,ZZE11#..UKP199809-200104

DK.BLUE,8M4

main76801-02090-J2iAE111,EE111..UKP199809-199909

BLUE M.M.,8M9

main76801-02090-J3iWZE110,ZZE11#..UKP199911-200111

DK.BLUE M.M.,8L3

main76801-02090-K0iAE111,EE111..UKP199809-199911

VIOLET M.M.,944

main76801-12530-A0iAE111,CE110,EE111..JPP..LB199704-200109

SUPER WHITE 2,040

sub76801-12530

main76801-12530-B0iAE111,CE110,EE111..JPP..LB199704-200109

SILVER ME,199

sub76801-12530

main76801-12530-C0iCDE110,ZZE11#..JPP..LB199704-200109

BLACK ME,205

sub76801-12530

main76801-12530-D0iAE111,CE110,EE111..JPP..LB199704-199910

CORAL REEF M.M.,3L6

sub76801-12530

main76801-12530-D1iAE111,CE110,EE111..LB199704-199808

RED,3M7

sub76801-12530

main76801-12530-D2iCDE110,ZZE11#..JPP..LB199808-200109

SUPER RED 2,3E5

sub76801-12530

main76801-12530-D2iAE111,CE110,EE111..RHD..LB..TERRA199805-199806

SPECIAL SPEC(UK),SUPER RED 2,3E5

sub76801-12530

main76801-12530-D3iCDE110,ZZE11#..JPP..LB199910-200109

RED M.M.,3N8

sub76801-12530

main76801-12530-E0iAE111,CE110,EE111..LB199704-199808

APRICOT M.M.,4P0

sub76801-12530

main76801-12530-F0iCDE110,ZZE11#..JPP..LB199910-200109

GOLD ME.,581

sub76801-12530

main76801-12530-G0iAE111,CE110,EE111..JPP..LB199704-199910

GREEN M.M.,6P5

sub76801-12530

main76801-12530-G1iCDE110,ZZE11#..JPP..LB199910-200109

GREEN MC.,6R8

sub76801-12530

main76801-12530-J0iCDE110,ZZE11#..JPP..LB199704-200109

BLUE M.M.,8L5

sub76801-12530

main76801-12530-J1iAE111,CE110,EE111..LB..(LUNA,TERRA)199704-200109

DK.BLUE,8M4

sub76801-12530

main76801-12530-J2iAE111,CE110,EE111..JPP..LB199808-199910

BLUE M.M.,8M9

sub76801-12530

main76801-12530-J3iCDE110,ZZE11#..JPP..LB199906-200109

DK.BLUE M.M.,8L3

sub76801-12530

main76801-12530-K0iAE111,CE110,EE111..LB199704-199808

LAVENDER ME.,932

sub76801-12530

main76801-12530-K1iAE111,CE110,EE111..JPP..LB199808-199910

VIOLET M.M.,944

sub76801-12530

main76801-12550iCDE110,WZE110,ZZE11#..HB..(STD,TERRA)199704-200107

BLACK

main76801-12560-A0iAE111,CE110,EE111..HB..LUNA199704-200107

SUPER WHITE 2,040

sub76801-12560

main76801-12560-B0iCDE110,WZE110,ZZE11#..HB..(G6,SOL,TERRA)199704-200107

SILVER ME,199

sub76801-12560

main76801-12560-C0iAE111..G6199809-199812

G6R SPEC,BLACK ME,205

sub76801-12560

main76801-12560-C0iAE111,CE110,EE111..HB..(G6,LUNA)199704-200107

BLACK ME,205

sub76801-12560

main76801-12560-D0iAE111,CE110,EE111..HB..(LUNA,TERRA)199704-199910

CORAL REEF M.M.,3L6

sub76801-12560

main76801-12560-D1iAE111,CE110,EE111..HB..(G6,LUNA,TERRA)199704-199808

RED,3M7

sub76801-12560

main76801-12560-D2iCDE110,WZE110,ZZE11#..HB..(G6,SOL,TERRA)199808-200107

SUPER RED II,3E5

sub76801-12560

main76801-12560-D2iAE111..G6199809-199812

G6R SPEC,SUPER RED 2,3E5

sub76801-12560

main76801-12560-D3iCDE110,WZE110,ZZE11#..HB..(G6,SOL,TERRA)199910-200107

RED M.M.,3N8

sub76801-12560

main76801-12560-E0iAE111,CE110,EE111..HB..(G6,LUNA,TERRA)199704-199808

APRICOT M.M.,4P0

sub76801-12560

main76801-12560-F0iCDE110,WZE110,ZZE11#..HB..(G6,SOL,TERRA)199910-200107

GOLD ME.,581

sub76801-12560

main76801-12560-G0iAE111,CE110,EE111..HB..LUNA199704-199910

GREEN M.M.,6P5

sub76801-12560

main76801-12560-G1iCDE110,WZE110,ZZE11#..HB..(G6,SOL,TERRA)199910-200107

GREEN MC.,6R8

sub76801-12560

main76801-12560-J0iAE111,CE110,EE111..HB..(G6,LUNA)199704-200107

BLUE M.M.,8L5

sub76801-12560

main76801-12560-J1iAE111,CE110,EE111..HB..(G6,LUNA,TERRA)199704-200107

DK.BLUE,8M4

sub76801-12560

main76801-12560-J2iAE111,CE110,EE111..HB..(G6,LUNA,TERRA)199808-199910

BLUE M.M.,8M9

sub76801-12560

main76801-12560-J3iCDE110,WZE110,ZZE11#..HB..(G6,SOL,TERRA)199906-200107

DK.BLUE M.M.,8L3

sub76801-12560

main76801-12560-K0iAE111,CE110,EE111..HB..(G6,LUNA)199704-199808

LAVENDER ME.,932

sub76801-12560

main76801-12560-K1iAE111,CE110,EE111..HB..(G6,LUNA,TERRA)199808-199910

VIOLET M.M.,944

sub76801-12560

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12050iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main76825-12020iCDE110,ZZE11#..JPP..LB199704-200109

main76825-12030iCDE110,WZE110,ZZE11#..HB199704-200107

9010905085

main90109-05085

9017905011

main90179-05011

9 parts on this diagram · 2 diagrams in section
