Toyota COROLLA HB/LB — PARTIAL ENGINE ASSEMBLY

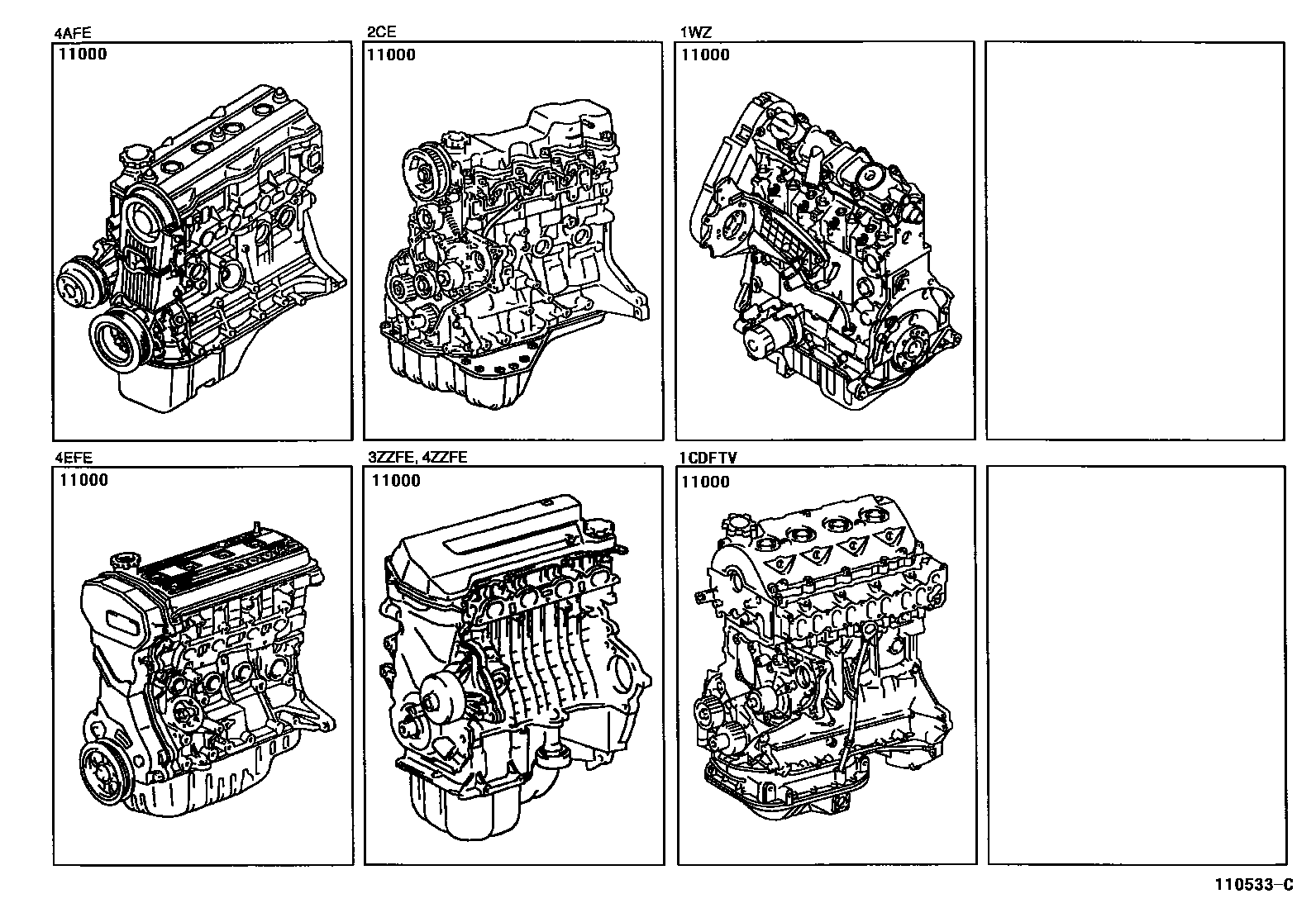

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-02180i199809-199911
main19000-0D030i199911-200111
main19000-0D040i199911-200111
main19000-11830i199809-199911
main19000-1A530i199704-199910
main19000-1A600i199704-199910
W(OIL COOLER)
main19000-22110i199910-200109
main19000-22120i199910-200109
main19000-27150i200008-200109
main19000-6A140i199704-199808
sub90105-16064
sub90560-16025
main19000-6A141i199808-199910
mainSU00100001i199912-200111

1 parts on this diagram · 1 diagram in section
