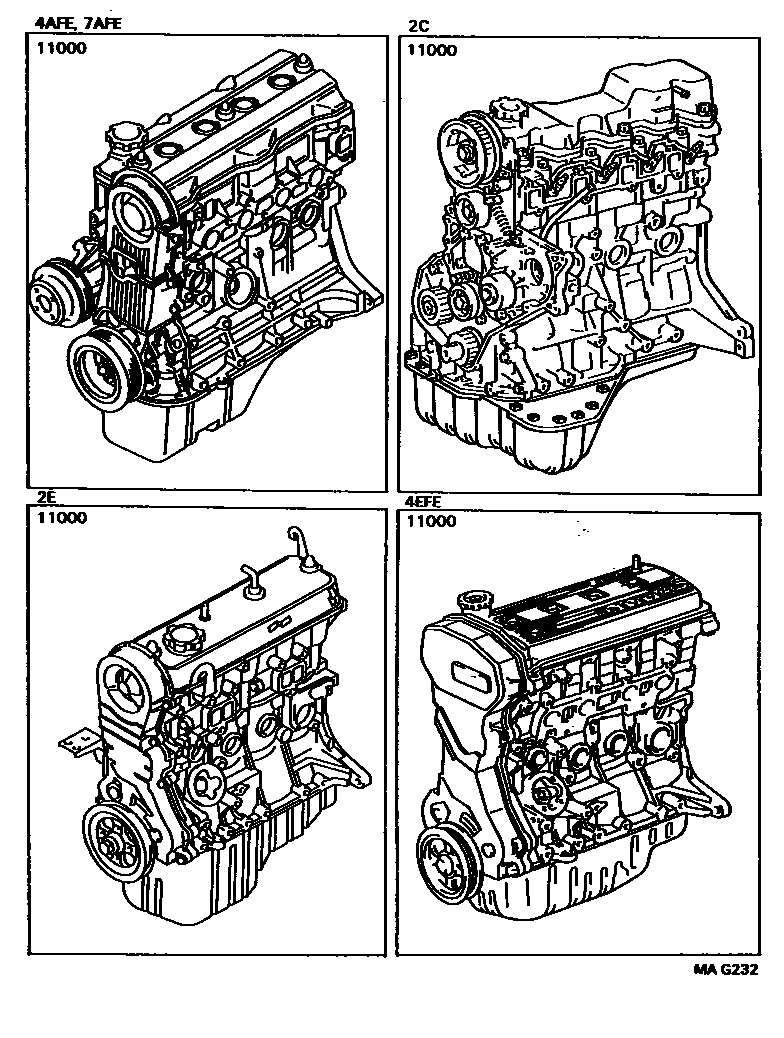

Toyota COROLLA HB/LB — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-11560i2E..EE100199205-199505

sub19000-11561

sub15301-11050

main19000-11590i4EFE..EE101199205-199505

main19000-11670i4EFE..EE101199505

main19000-1A250i4AFE..AE101199205

main19000-1A260i4AFE..AE101..LHD199205

W/O(OIL COOLER)

main19000-1A270i7AFE..AE102199211-199505

main19000-64680i2C..CE100199205-199302

main19000-64780i2C..CE100199302-199504

main19000-64781i2C..CE100199504-199505

sub19000-64782

sub90105-16064

sub90560-16025

main19000-64890i2C..CE100199505-199605

sub19000-64892

sub90105-16064

sub90560-16025

main19000-6A090i2C..CE100199605

sub19000-6A091

sub90105-16064

sub90560-16025

1 parts on this diagram · 1 diagram in section
