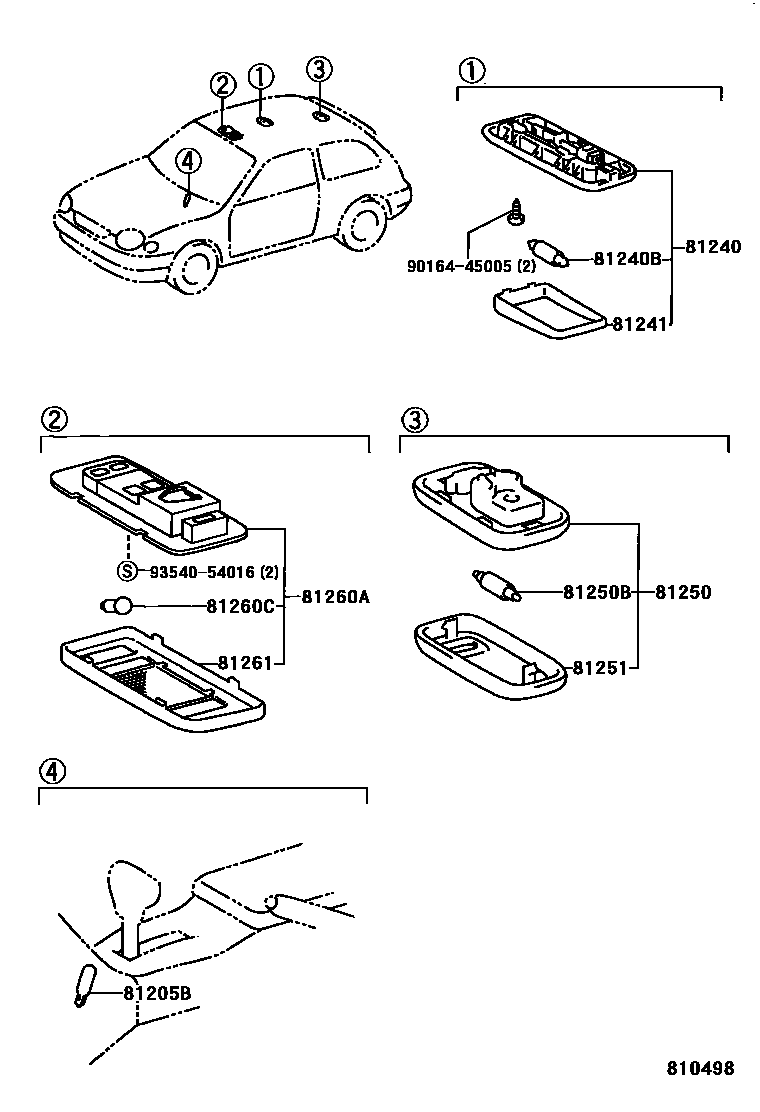

Toyota COROLLA HB/LB — INTERIOR LAMP

0001 1 0002 1

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018iAE111,CE110,EE111199704-200111

12V 1.2W W/O SOCKET

81240LAMP ASSY, ROOM, NO.1

main81240-05010-A0iAE111,EE111..UKP199809-199911

IVORY,TRIM0#

sub81240-05030

main81240-05010-B2iWZE110,ZZE11#..UKP..(4FC,5F)199911-200006

MD.CHARCOAL,TRIM11,16

sub81240-05030

main81240-05010-B2iAE111,EE111..UKP199809-199911

MD.CHARCOAL,TRIM10,12

sub81240-05030

main81240-05010-B2iWZE110,ZZE11#..UKP..(4FC,5F)199911-200006

MD.CHARCOAL,TRIM1#

sub81240-05030

main81240-05030-B1iWZE110,ZZE11#..UKP..(4FC,5F)200006-200111

MD.CHARCOAL,TRIM11,16

sub81240-05031

main81240-05030-B1iWZE110,ZZE11#..UKP..(4FC,5F)200006-200111

MD.CHARCOAL,TRIM1#

sub81240-05031

main81240-12060-A2iAE111,CE110,EE111..JPP..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub81240-12060

main81240-12060-B3iAE111,CE110,EE111..JPP..(LUNA,TERRA)199808-199901

LT.GRAY,TRIM12

sub81240-12060

main81240-12060-B6iAE111,CE110,EE111199704-200107

MD.CHARCOAL,TRIM1#

sub81240-12060

main81240-12060-B6iAE111,CE110,EE111..JPP..(LUNA,TERRA)199808-199910

MD.CHARCOAL,TRIM10,12

sub81240-12060

main81240-12060-B6iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

MD.CHARCOAL,TRIM11,16

sub81240-12060

81240BBULB, ROOM LAMP, NO.1

main90080-81047iAE111,EE111..UKP199809-199904

12V 10W

main90080-81078iAE111,EE111,WZE110,ZZE11#..UKP199904-200111

12V 10W

sub90981-WE001

main90981-14011iAE111,CE110,EE111..JPP199704-200109

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-05010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main81241-12020iCDE110,WZE110,ZZE11#..JPP199704-200109

81250LAMP ASSY, ROOM, NO.2

main81250-05010-B0iZZE112..6F..SOL199911-200111

SHADOW GRAY,TRIM1#

main81250-05010-B0iZZE112..6F..SOL199911-200111

SHADOW GRAY,TRIM11,16

main81250-05010-B0iAE111,EE111..UKP199809-199911

SHADOW GRAY,TRIM0#,10,12

main81250-12030-B5iZZE11#..G6200101-200107

DK.GRAY,TRIM1#

sub81250-12030

sub81250-95J05

main81250-12030-B5iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)200101-200109

DK.GRAY,TRIM11,16

sub81250-12030

sub81250-95J05

main81250-12030-P0iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199704-200101

SHADOW GRAY,TRIM1#

sub81250-12030

sub81250-95J05

main81250-12030-P0iZZE11#..G6199910-200012

SHADOW GRAY,TRIM11,16

sub81250-12030

sub81250-95J05

main81250-12030-P0iAE111,CE110,EE111..LUNA,TERRA199704-199808

SHADOW GRAY,TRIM0#,1#

sub81250-12030

sub81250-95J05

main81250-12030-P0iAE111,CE110,EE111..JPP..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM0#,10,12

sub81250-12030

sub81250-95J05

81250BBULB, ROOM LAMP, NO.2

main90080-81049iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

12V 5W

main99132-13050iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199704-200109

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)199704-200109

81260ALAMP ASSY, MAP

main81260-05050-A0iAE111,EE111..UKP199809-199911

IVORY,TRIM0#

sub81260-05051

main81260-05050-B1iZZE112..6F..SOL199911-200111

MD.CHARCOAL,TRIM11,16

sub81260-05051

main81260-05050-B1iAE111,EE111..UKP199809-199911

MD.CHARCOAL,TRIM10,12

sub81260-05051

main81260-05050-B1iZZE112..6F..SOL199911-200111

MD.CHARCOAL,TRIM1#

sub81260-05051

main81260-20160-A2iAE111,CE110,EE111..JPP..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub81260-20160

main81260-20160-B2iAE111,EE111..G6199808-199910

MD.CHARCOAL,TRIM10,12

sub81260-20160

main81260-20160-B2iZZE11#..G6199704-200107

MD.CHARCOAL,TRIM1#

sub81260-20160

main81260-20160-B2iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

MD.CHARCOAL,TRIM11,16

sub81260-20160

81260CBULB(FOR MAP LAMP)

main90011-11006iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

12V 5W

main90981-12014iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)199704-200109

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-05050-A0iAE111,EE111..UKP199809-199911

IVORY,TRIM0#

main81261-05050-B1iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

MD.CHARCOAL,TRIM1#

main81261-05050-B1iAE111,EE111..UKP199809-199911

MD.CHARCOAL,TRIM10,12

main81261-05050-B1iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

MD.CHARCOAL,TRIM11,16

main81261-20160-A1iAE111,CE110,EE111..JPP..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub81261-20160

main81261-20160-B4iAE111,CE110,EE111..JPP..(LUNA,TERRA)199808-199910

MD.CHARCOAL,TRIM10,12

sub81261-20160

main81261-20160-B4iAE111,CE110,EE111..G6,LUNA,TERRA199704-200107

MD.CHARCOAL,TRIM1#

sub81261-20160

main81261-20160-B4iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

MD.CHARCOAL,TRIM11,16

sub81261-20160

9016445005

main90164-45005

9354054016

main93540-54016

12 parts on this diagram · 2 diagrams in section
