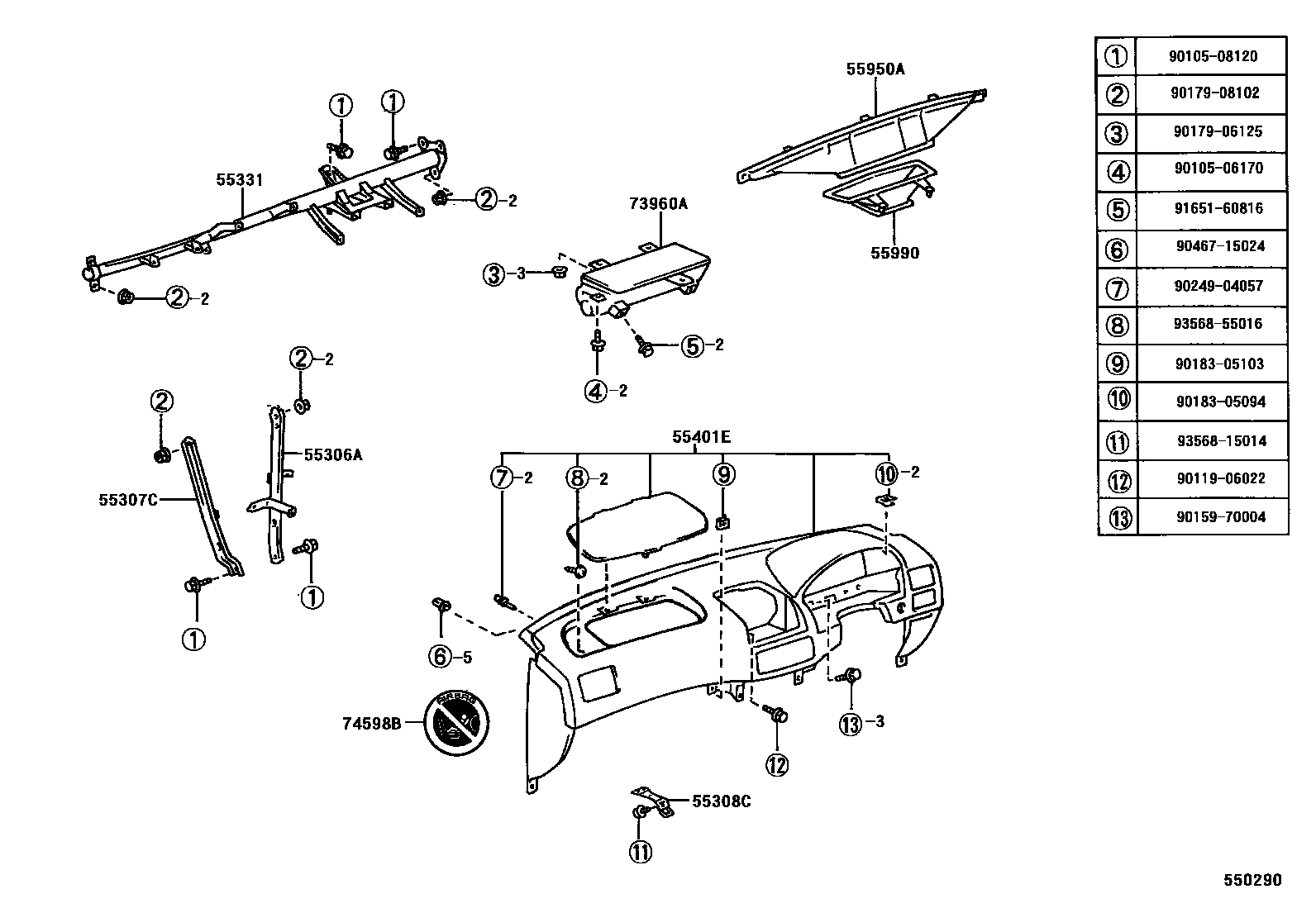

Toyota COROLLA HB/LB — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02040iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main55306-02050iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main55306-12260iCDE110,WZE110,ZZE11#..JPP..RHD199704-200107

main55306-12290iEE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA)199704-200109

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02040iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main55307-02050iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main55307-12270iAE111,CE110,EE111..LHD199704-200109

main55307-12280iCDE110,WZE110,ZZE11#..JPP..RHD199704-200107

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main55308-12260iAE111,CE110,EE111199704-200109

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-02070iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main55330-02080iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main55330-12340iEE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA)199704-200109

main55330-12341iAE111,CE110,EE111..JPP..LHD199906-199910

main55330-12370iAE111,CE110,EE111..RHD199704-200107

main55330-12371iAE111,CE110,EE111..JPP..RHD199908-199910

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-02070-B0iZZE112..RHD..6F..SOL;AE111,EE111..UKP..RHD199809-200111

SHADOW GRAY,TRIM1#

main55401-02070-B0iWZE110,ZZE11#..UKP..RHD..(4FC,5F)199911-200111

SHADOW GRAY,TRIM16

main55401-02070-B1iAE111,EE111..UKP..RHD199809-199911

DK.CHARCOAL,TRIM0#,1#

main55401-02070-B1iWZE110,ZZE11#..UKP..RHD..(4FC,5F)199911-200111

DK.CHARCOAL,TRIM11

main55401-02090-B0iWZE110,ZZE11#..UKP..LHD..(4FC,5F)199911-200111

SHADOW GRAY,TRIM16

main55401-02090-B0iZZE112..LHD..6F..SOL;AE111,EE111..UKP..LHD199809-200111

SHADOW GRAY,TRIM1#

main55401-02090-B1iAE111,EE111..UKP..LHD199809-199911

DK.CHARCOAL,TRIM0#,1#

main55401-02090-B1iWZE110,ZZE11#..UKP..LHD..(4FC,5F)199911-200111

DK.CHARCOAL,TRIM11

main55401-02100-B0iWZE110,ZZE11#..UKP..LHD..(4FC,5F)199911-200111

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM16

main55401-02100-B0iZZE112..LHD..6F..SOL;AE111,EE111..UKP..LHD199809-200111

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

main55401-02100-B1iWZE110,ZZE11#..UKP..LHD..(4FC,5F)199911-200111

W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM11

main55401-02100-B1iAE111,EE111..UKP..LHD199809-199911

W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM0#,1#

main55401-12470-B0iZZE11#..LHD..G6199910-200008

SHADOW GRAY,TRIM16

sub55401-12590

sub55401-12630

main55401-12470-B0iZZE11#..LHD..G6199812-200008

SHADOW GRAY,TRIM1#

sub55401-12590

sub55401-12630

main55401-12470-B0iAE111,CE110,EE111..JPP..LHD..(LUNA,TERRA)199812-199910

SHADOW GRAY,TRIM12

sub55401-12590

sub55401-12630

main55401-12470-B1iWZE110,ZZE11#..JPP..LHD..(SOL,TERRA)199910-200008

DK.CHARCOAL,TRIM11

sub55401-12590

sub55401-12630

main55401-12470-B1iWZE110,ZZE11#..JPP..LHD..(SOL,TERRA)199812-200008

DK.CHARCOAL,TRIM1#

sub55401-12590

sub55401-12630

main55401-12470-B1iAE111,CE110,EE111..JPP..LHD..(LUNA,TERRA)199812-199910

DK.CHARCOAL,TRIM0#,10

sub55401-12590

sub55401-12630

main55401-12530-B0iZZE11#..RHD..G6199910-200107

SHADOW GRAY,TRIM16

main55401-12530-B0iCDE110,WZE110,ZZE11#..JPP..RHD..(SOL,TERRA)199704-200107

SHADOW GRAY,TRIM1#

main55401-12530-B0iAE111,CE110,EE111..RHD..(LUNA,TERRA)199704-199808

SHADOW GRAY,TRIM0#

main55401-12530-B0iAE111,CE110,EE111..JPP..RHD..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

main55401-12530-B0iAE111,EE111..RHD..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE,SHADOW GRAY,TRIM12

main55401-12530-B1iCDE110,WZE110,ZZE11#..JPP..RHD..(SOL,TERRA)199910-200107

DK.CHARCOAL,TRIM11

main55401-12530-B1iAE111..RHD..LB;AE111..RHD..HB..TERRA;EE111..RHD..3FC..LUNA;CE110,EE111..RHD..TERRA;CE110,EE111..RHD..LB..5F..LUNA199704-199808

DK.CHARCOAL,TRIM1#

main55401-12530-B1iAE111,CE110,EE111..JPP..RHD..(LUNA,TERRA)199808-199910

DK.CHARCOAL,TRIM0#,10

main55401-12540-B0iEE111..STD199808-199812

DK.CHARCOAL,TRIM0#,10

sub55401-12470

main55401-12540-B0iAE111,CE110,EE111..LHD..(LUNA,STD,TERRA)199704-199812

DK.CHARCOAL,TRIM1#

sub55401-12470

main55401-12540-B1iAE111,EE111..LHD..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE,SHADOW GRAY,TRIM12

sub55401-12470

main55401-12540-B1iEE111..LHD..G6199704-199812

SHADOW GRAY,TRIM1#

sub55401-12470

main55401-12540-B1iAE111,CE110,EE111..JPP..LHD..(LUNA,TERRA)199808-199812

SHADOW GRAY,TRIM12

sub55401-12470

main55401-12540-B1iAE111,CE110,EE111..JPP..LHD..(LUNA,TERRA)199808-199812

W(*80,DRIVER SIDE),SHADOW GRAY,TRIM1#

sub55401-12470

main55401-12540-B1iAE111,CE110,EE111..LHD..(LUNA,TERRA)199704-199808

SHADOW GRAY,TRIM0#

sub55401-12470

main55401-12550-B0iAE111,CE110,EE111..JPP..LHD..(LUNA,TERRA)199808-199812

W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM0#,10

sub55401-12560

main55401-12550-B0iAE111,CE110,EE111..JPP..LHD..(LUNA,TERRA)199704-199812

W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM1#

sub55401-12560

main55401-12550-B1iAE111..LHD..G6199808-199812

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM12

sub55401-12560

main55401-12550-B1iEE111..LHD..G6199704-199812

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

sub55401-12560

main55401-12550-B1iAE111,CE110,EE111..JPP..LHD..(LUNA,TERRA)199808-199812

W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE),SHADOW GRAY,TRIM1#

sub55401-12560

main55401-12550-B1iAE111,EE111..LHD..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE & W(*80,PASSENGER SIDE),SHADOW GRAY,TRIM12

sub55401-12560

main55401-12550-B1iAE111,CE110,EE111..LHD..(LUNA,TERRA)199704-199808

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM0#

sub55401-12560

main55401-12560-B0iAE111,EE111..LHD..G6199812-199910

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM12

sub55401-12620

sub55401-12640

main55401-12560-B0iWZE110,ZZE11#..JPP..LHD..(SOL,TERRA)199812-200008

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

sub55401-12620

sub55401-12640

main55401-12560-B0iWZE110,ZZE11#..JPP..LHD..(SOL,TERRA)199910-200008

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM16

sub55401-12620

sub55401-12640

main55401-12560-B1iZZE111..STD199812-200008

W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM1#

sub55401-12620

sub55401-12640

main55401-12560-B1iZZE111..STD199910-200008

W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM11

sub55401-12620

sub55401-12640

main55401-12560-B1iAE111,CE110,EE111..JPP..LHD..(LUNA,TERRA)199812-199910

W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM0#,10

sub55401-12620

sub55401-12640

main55401-12590-B0iCDE110,WZE110,ZZE11#..JPP..LHD..(SOL,TERRA)200008-200109

SHADOW GRAY,TRIM16

main55401-12590-B0iZZE11#..LHD..G6200008-200107

SHADOW GRAY,TRIM1#

main55401-12590-B1iZZE111..STD200008-200107

DK.CHARCOAL,TRIM1#

main55401-12590-B1iCDE110,WZE110,ZZE11#..JPP..LHD..(SOL,TERRA)200008-200109

DK.CHARCOAL,TRIM11

main55401-12620-B0iCDE110,WZE110,ZZE11#..JPP..LHD..(SOL,TERRA)200008-200109

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM16

main55401-12620-B0iZZE11#..LHD..G6200008-200107

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

main55401-12620-B1iCDE110,WZE110,ZZE11#..JPP..LHD..(SOL,TERRA)200008-200109

W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM11

main55401-12620-B1iZZE111..STD200008-200107

W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM1#

55950ANOZZLE ASSY, DEFROSTER

main55950-02040iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main55950-02050iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main55950-12220iCDE110,WZE110,ZZE11#..JPP..RHD199704-200107

main55950-12230iAE111,CE110,EE111..LHD199704-200109

55990NOZZLE ASSY, CENTER DEFROSTER

main55990-02030iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main55990-02040iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main55990-12040iEE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA)199704-200109

main55990-12050iAE111..JPP..RHD..LB;AE111..RHD..HB..(G6,TERRA);EE111..JPP..RHD..3FC..LUNA;CE110,EE111..JPP..RHD..(G6,TERRA);CE110,EE111..JPP..RHD..LB..5F..LUNA199704-200107

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02010iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main73960-02020iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main73960-12020iCDE110,WZE110,ZZE11#..JPP..RHD199704-200107

main73960-12090iAE111,CE110,EE111..LHD199704-200109

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

9010506170

main90105-06170

9010508120

main90105-08120

9011906022

main90119-06022

9015970004

main90159-70004

9017906125

main90179-06125

9017908102

main90179-08102

9018305094

main90183-05094

9018305103

main90183-05103

9024904057

main90249-04057

9046715024

main90467-15024

9165160816

main91651-60816

9356815014

main93568-15014

9356855016

main93568-55016

22 parts on this diagram · 8 diagrams in section
