Toyota COROLLA HB/LB — HEATING & AIR CONDITIONING - SET

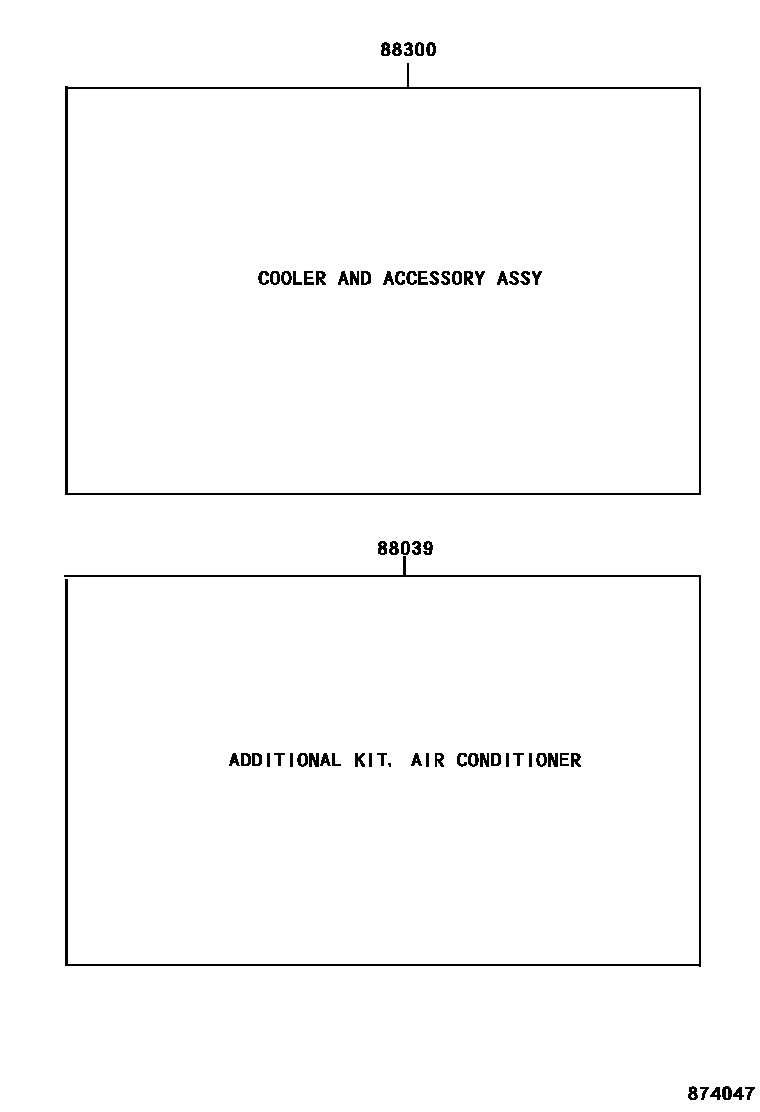

Parts diagram

88039ADDITIONAL KIT,AIRCONDITIONER

main88300-02190i199912-200111

88300COOLER & ACCESSORY ASSY

main80830-12150i199704-199910

main80830-12160i199704-199910

main80830-12170i199704-199910

main80830-12180i199704-199910

main80830-12190i199704-199910

main80830-12200i199704-199910

main80830-1A370i200001-200107

main80830-1A380i199910-200107

main80830-1A390i200001-200107

main80830-1A400i199910-200109

main80830-1A470i200008-200107

main80830-1A480i200008-200109

main88300-02090i199809-199911

main88300-02100i199809-199911

main88300-02110i199809-199911

main88300-02120i199809-199911

main88300-02150i199911-200111

main88300-02160i199912-200111

main88300-02170i199911-200111

main88300-02180i199912-200111

2 parts on this diagram · 1 diagram in section
