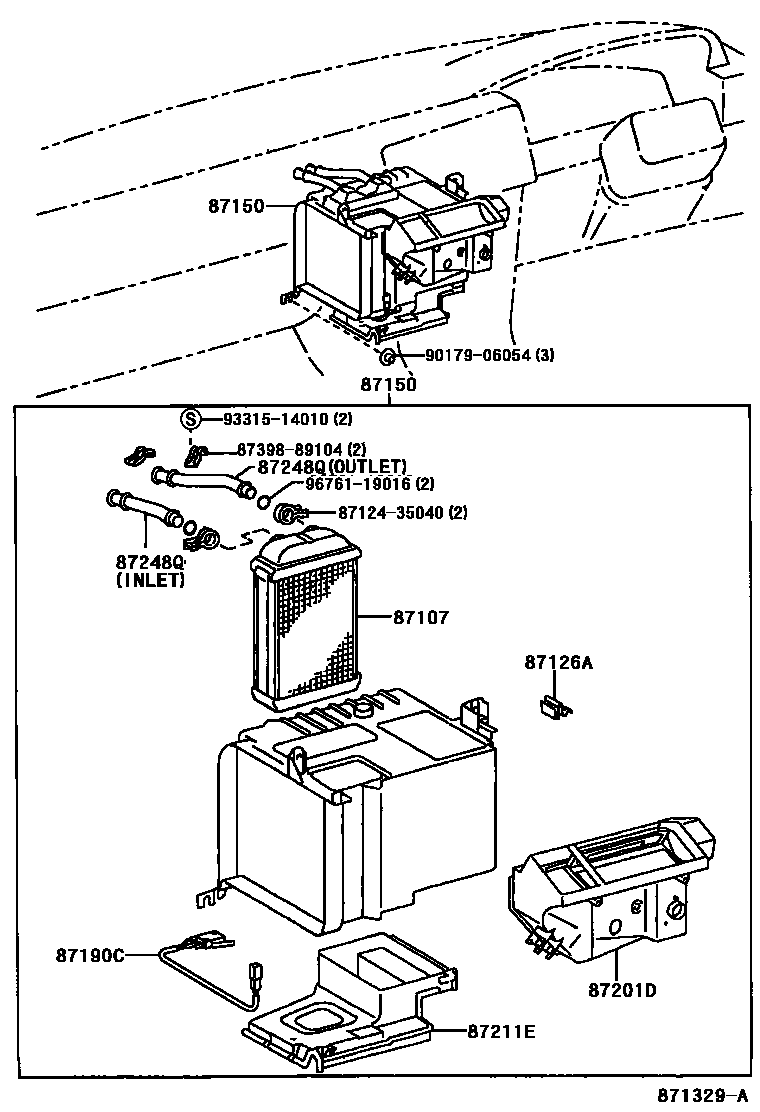

Toyota COROLLA HB/LB — HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1RADIATOR 0002 1RADIATOR 0003 1BLOWER

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-02070iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main87107-02080iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

COLD SPEC

main87107-02090iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main87107-12500iWZE110,ZZE11#..JPP..RHD199704-200107

main87107-12510iCDE110..RHD200008-200107

main87107-12520iAE111,CE110,EE111..JPP..LHD199704-200109

main87107-12530iAE111,CE110,EE111..LHD199704-199808

COLD SPEC

sub87107-12531

main87107-12531iWZE110,ZZE11#..JPP..LHD199808-200109

COLD SPEC

main87107-12531iCDE110..LHD200008-200109

87126ACLAMP, HEATER CONTROL

main87126-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main87126-13010iCDE110,WZE110,ZZE11#..JPP199704-200109

87150RADIATOR ASSY, HEATER

main87150-02071iAE111,EE111..UKP..RHD199809-199910

sub87150-02072

main87150-02072iAE111,EE111,WZE110,ZZE11#..UKP..RHD199910-200111

main87150-02081iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main87150-02091iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

COLD SPEC

main87150-1A090iAE111,CE110,EE111..JPP..RHD199704-199910

sub87150-1A091

main87150-1A091iWZE110,ZZE11#..JPP..RHD199910-200107

main87150-1A100iAE111,CE110,EE111..LHD199704-199809

sub87150-1A101

main87150-1A101iAE111,CE110,EE111..JPP..LHD199809-200109

main87150-1A110iAE111,CE110,EE111..LHD199704-199808

COLD SPEC

sub87150-1A111

main87150-1A111iWZE110,ZZE11#..JPP..LHD199808-200109

COLD SPEC

main87150-1A140iCDE110..RHD200008-200107

main87150-1A150iCDE110..LHD200008-200109

main87150-1A160iCDE110..LHD200008-200109

COLD SPEC

87190CSWITCH ASSY, TEMPERATURE CONTROL

main87190-12010iCDE110200008-200109

main87190-12020iCDE110..LHD200008-200109

COLD SPEC

87201DDUCT SUB-ASSY, AIR

main87201-02080iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main87201-02090iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main87201-12380iCDE110,WZE110,ZZE11#..JPP..RHD199704-200107

main87201-12390iCDE110,WZE110,ZZE11#..JPP..LHD199704-200109

COLD SPEC

main87201-12400iAE111,CE110,EE111..JPP..LHD199704-200109

87211EDUCT, AIR

main87211-02060iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main87211-02070iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main87211-02080iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

COLD SPEC

main87211-12240iAE111,CE110,EE111..JPP..LHD199704-200109

main87211-12250iWZE110,ZZE11#..JPP..LHD199704-200008

COLD SPEC

sub87211-12251

main87211-12251iCDE110,WZE110,ZZE11#..JPP..LHD200008-200109

COLD SPEC

main87211-13010iAE111,CE110,EE111..JPP..RHD199704-200107

87248QPIPE, FRONT HEATER RADIATOR WATER

main87156-12020iAE111,CE110,EE111..JPP..RHD199704-200107

INLET

main87156-12030iWZE110,ZZE11#..JPP..RHD199704-200107

OUTLET

main87156-12040iCDE110..RHD200008-200107

INLET

main87156-12050iCDE110..RHD200008-200107

OUTLET

main87156-12060iAE111,CE110,EE111..LHD199704-199809

INLET

sub87156-12061

main87156-12061iAE111,CE110,EE111..JPP..LHD199809-200109

INLET

main87156-12070iWZE110,ZZE11#..JPP..LHD199704-200109

OUTLET

main87156-12080iWZE110,ZZE11#..JPP..LHD199704-200109

COLD SPEC,INLET

main87156-12080iCDE110..LHD200008-200109

INLET

main87156-12090iWZE110,ZZE11#..JPP..LHD199704-200109

COLD SPEC,OUTLET

main87156-12090iCDE110..LHD200008-200109

OUTLET

8712435040CLAMP, HEATER

main87124-35040

8739889104BAND ASSY (FOR COMBUSTION HEATER)

main87398-89104

9017906054

main90179-06054

9331514010

main93315-14010

9676119016

main96761-19016

12 parts on this diagram · 3 diagrams in section
