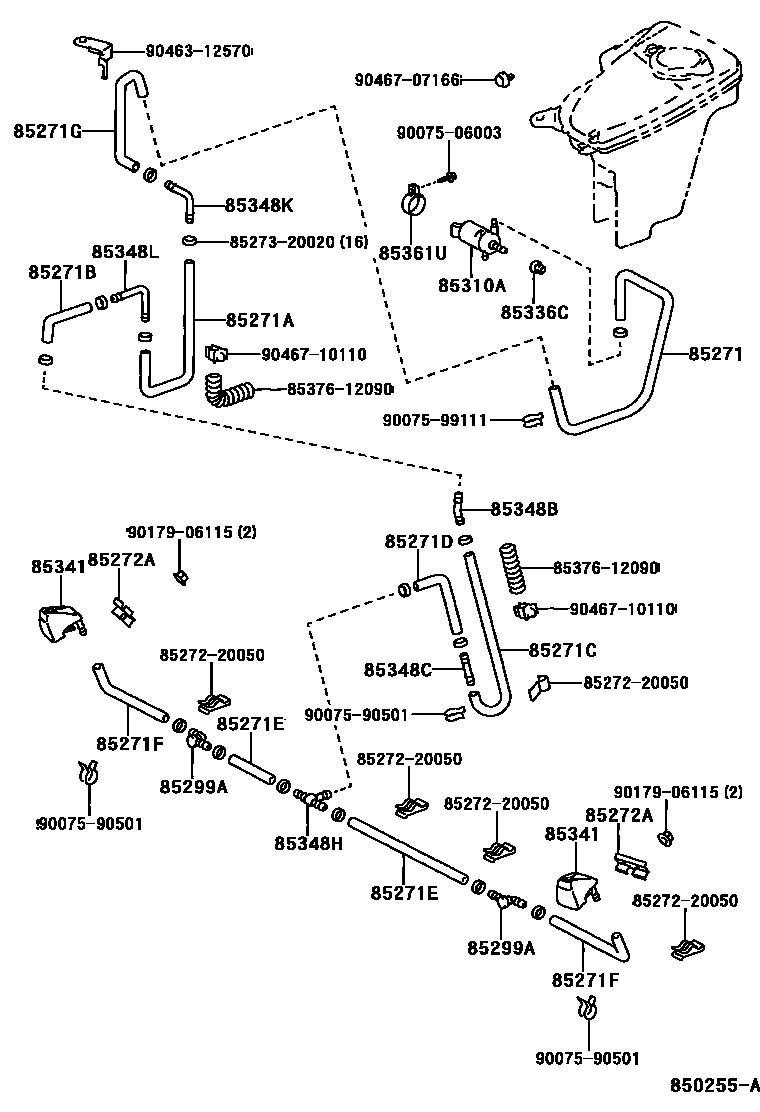

Toyota COROLLA HB/LB — HEADLAMP CLEANER
85271HOSE, HEADLAMP CLEANER, NO.1
L=90
85271AHOSE, HEADLAMP CLEANER, NO.2
L=90
85271BHOSE, HEADLAMP CLEANER, NO.3
L=135
85271CHOSE, HEADLAMP CLEANER, NO.4
L=640
L=75
85271DHOSE, HEADLAMP CLEANER, NO.5
L=640,LH
L=75,RH
L=140
85271EHOSE, HEADLAMP CLEANER, NO.6
L=640
L=75
L=140
85271FHOSE, HEADLAMP CLEANER, NO.7
85271GHOSE, HEAD LAMP
85272ACLAMP, HEADLAMP CLEANER, NO.1
85299AVALVE ASSY, CHECK
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85336CPACKING, HEADLAMP CLEANER MOTOR
85341NOZZLE, HEADLAMP CLEANER WASHER
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85361UBRACKET, HEADLAMP CLEANER WASHER
8527220050CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20050
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8537612090PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
main85376-12090
9007506003
main90075-06003
9007590501
main90075-90501
9007599111
main90075-99111
9017906115
main90179-06115
9046312570
main90463-12570
9046707166
main90467-07166
9046710110
main90467-10110
29 parts on this diagram · 3 diagrams in section
