Toyota COROLLA HB/LB — FRONT DOOR PANEL & GLASS

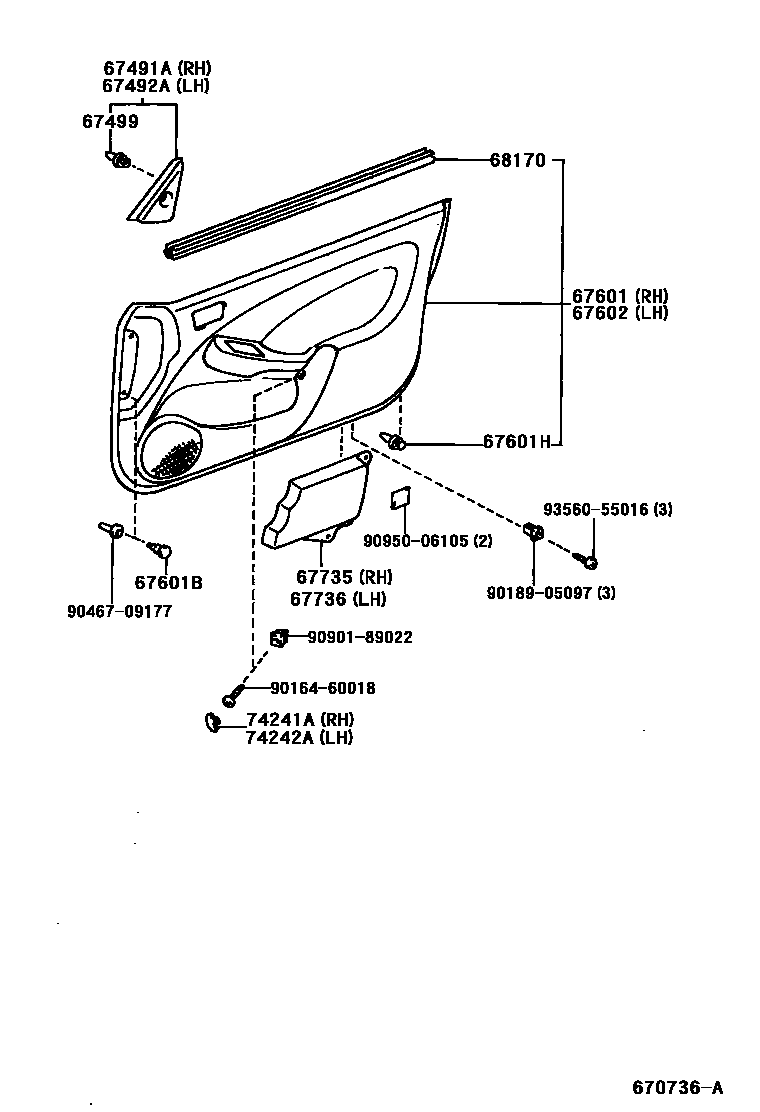

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-02100i199809-200111
W(ELECTRIC REMOTE CONTROL MIRROR)
main67491-02110i199809-200111
main67491-12400i199704-200109
W(ELECTRIC REMOTE CONTROL MIRROR)
main67491-12410i200001-200107
W(ELECTRIC REMOTE CONTOROL MIRROR)
main67491-12410i199704-200107
W(ELECTRIC REMOTE CONTROL MIRROR)
main67491-12420i199704-200107
main67491-12430i199704-200109
main67491-12440i199910-200111
main67491-12450i199910-200107
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-02100i199911-200111
W(ELECTRIC REMOTE CONTROL MIRROR)
main67492-02100i199809-199911
W(ELECTRIC REMOTE CONTOROL MIRROR)
main67492-02110i199809-200111
main67492-12400i199704-200109
W(ELECTRIC REMOTE CONTROL MIRROR)
main67492-12410i199704-200107
W(ELECTRIC REMOTE CONTROL MIRROR)
main67492-12420i199704-200107
main67492-12430i199704-200109
main67492-12440i199910-200111
main67492-12450i199910-200107
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67771-12060i199704-200107
main67771-30070i199704-200111
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-02390-A2i199809-199911
IVORY,TRIM0#
main67610-02390-B1i199809-199911
MD.CHARCOAL,TRIM10
main67610-02390-B3i199901-199911
SHADOW GRAY,TRIM1#
main67610-02400-A2i199809-199911
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),IVORY,TRIM0#
main67610-02400-B1i199809-199911
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM10
main67610-02400-B3i199901-199911
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM1#
main67610-02410-A2i199809-199911
IVORY,TRIM0#
main67610-02410-B1i199809-199911
MD.CHARCOAL,TRIM10
main67610-02410-B3i199901-199911
SHADOW GRAY,TRIM12
main67610-02420-A2i199809-199911
IVORY,TRIM0#
main67610-02420-B1i199809-199911
MD.CHARCOAL,TRIM10
main67610-02420-B3i199901-199911
SHADOW GRAY,TRIM12
main67610-02430-A2i199809-199911
IVORY,TRIM0#
main67610-02430-B1i199809-199911
MD.CHARCOAL,TRIM10
main67610-02430-B3i199901-199911
SHADOW GRAY,TRIM12
main67610-02570-B0i199809-199901
SHADOW GRAY,TRIM12
main67610-02620-A2i199809-199911
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),IVORY,TRIM0#
main67610-02620-B1i199809-199911
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM10
main67610-02620-B3i199901-199911
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM12
main67610-02630-A2i199809-199911
W(POWER WINDOW),IVORY,TRIM0#
main67610-02630-B1i199809-199911
W(POWER WINDOW),MD.CHARCOAL,TRIM10
main67610-02630-B3i199901-199911
W(POWER WINDOW),SHADOW GRAY,TRIM12
main67610-02640-B1i199809-199901
W(POWER DOOR LOCK & POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-02650-B1i199809-199901
SHADOW GRAY,TRIM1#
main67610-02660-B1i199809-199901
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM1#
main67610-02670-B0i199911-200111
MD.CHARCOAL,TRIM11
main67610-02670-B1i199911-200111
SHADOW GRAY,TRIM16
main67610-02680-B0i199911-200111
W(POWER WINDOW),MD.CHARCOAL,TRIM11
main67610-02680-B1i199911-200111
W(POWER WINDOW),SHADOW GRAY,TRIM16
main67610-02690-B0i199911-200111
MD.CHARCOAL,TRIM11
main67610-02690-B1i199911-200111
SHADOW GRAY,TRIM16
main67610-02700-B0i199911-200111
SHADOW GRAY,TRIM1#
main67610-02710-B0i199911-200111
W(POWER WINDOW),MD.CHARCOAL,TRIM11
main67610-02710-B1i199911-200111
W(POWER WINDOW),SHDOW GRAY,TRIM16
main67610-02720-B0i199911-200111
MD.CHARCOAL,TRIM11
main67610-02720-B1i199911-200111
SHADOW GRAY,TRIM16
main67610-02730-B0i199911-200111
MD.CHARCOAL,TRIM11
main67610-02730-B1i199911-200111
SHADOW GRAY,TRIM16
main67610-02740-B0i199911-200111
SHADOW GRAY,TRIM1#
main67610-1K200-A0i199709-199808
W(POWER WINDOW),IVORY,TRIM0#
sub67610-1K230
main67610-1K200-B1i199709-199804
W(POWER WINDOW),MD.CHARCOAL.,TRIM1#
sub67610-1K230
main67610-1K210-A0i199709-199808
IVORY,TRIM0#
main67610-1K210-B0i199709-199804
MD.CHARCOAL.,TRIM1#
main67610-1K220-A0i199709-199808
IVORY,TRIM0#
main67610-1K220-B0i199709-199808
MD.CHARCOAL.,TRIM1#
main67610-1K230-A0i199709-199808
W(POWER WINDOW),IVORY,TRIM0#
main67610-1K230-B0i199709-199808
W(POWER WINDOW),MD.CHARCOAL.,TRIM1#
main67610-1K240-A0i199709-199808
W(POWER WINDOW),IVORY,TRIM0#
main67610-1K240-B0i199709-199808
W(POWER WINDOW),MD.CHARCOAL,TRIM1#
main67610-1K280-B2i199704-199808
SHADOW GRAY,TRIM1#
main67610-1K290-B2i199704-199808
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1K320-A1i199808-199910
IVORY,TRIM0#
sub67610-1K420
main67610-1K320-B0i199808-199910
MD.CHARCOAL,TRIM10
sub67610-1K420
main67610-1K320-B2i199901-199910
SHADOW GRAY,TRIM12
sub67610-1K420
main67610-1K330-A1i199808-199910
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),IVORY,TRIM0#
sub67610-1K440
main67610-1K330-B0i199808-199901
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM1#
sub67610-1K440
main67610-1K330-B0i199901-199910
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM10
sub67610-1K440
main67610-1K330-B3i199901-199910
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM12
sub67610-1K440
main67610-1K340-B0i199808-199901
G6 GRADE PACKAGE,SHADOW GRAY,TRIM1#
sub67610-1K360
main67610-1K340-B0i199704-199910
SHADOW GRAY,TRIM1#
sub67610-1K360
main67610-1K350-B0i199808-199901
G6 GRADE PACKAGE,SHADOW GRAY,TRIM1#
main67610-1K350-B0i199704-199910
SHADOW GRAY,TRIM1#
main67610-1K360-B0i199808-199901
G6 GRADE PACKAGE & W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1K360-B0i199704-199910
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1K380-B0i199808-199901
MD. CHARCOAL,TRIM12
main67610-1K410-A1i199808-199910
IVORY,TRIM0#
sub67610-1K450
main67610-1K410-B0i199901-199910
MD.CHARCOAL,TRIM10
sub67610-1K450
main67610-1K410-B0i199808-199901
MD.CHARCOAL,TRIM1#
sub67610-1K450
main67610-1K410-B4i199901-199910
SHADOW GRAY,TRIM12
sub67610-1K450
main67610-1K420-A1i199808-199910
IVORY,TRIM0#
main67610-1K420-B0i199901-199910
MD.CHARCOAL,TRIM10
main67610-1K420-B0i199808-199901
MD.CHARCOAL,TRIM1#
main67610-1K420-B2i199901-199910
SHADOW GRAY,TRIM12
main67610-1K430-A1i199808-199910
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67610-1K430-B0i199808-199901
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67610-1K430-B0i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM10
main67610-1K430-B3i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),SHADOW GRAY,TRIM12
main67610-1K440-A1i199808-199910
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),IVORY,TRIM0#
main67610-1K440-B0i199808-199901
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM1#
main67610-1K440-B0i199901-199910
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM10
main67610-1K440-B2i199901-199910
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM12
main67610-1K450-A1i199808-199910
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67610-1K450-B0i199808-199901
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67610-1K450-B0i199901-199910
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM10
main67610-1K450-B3i199901-199910
W(FABRIC TRIM & POWER WINDOW),SHADOW GRAY,TRIM12
main67610-1K460-A1i199805-199808
IVORY,TRIM0#
main67610-1K460-B1i199805-199808
MD.CHARCOAL,TRIM1#
main67610-1K470-A1i199805-199808
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67610-1K470-B1i199805-199808
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67610-1K480-A1i199805-199808
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67610-1K480-B1i199805-199808
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67610-1K490-B0i199808-199910
W(LEATHER TRIMT & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67610-1K490-B1i199910-200107
MIDIUM CHARCOAL,TRIM1#
main67610-1K500-A1i199805-199808
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67610-1K500-B1i199805-199808
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67610-1K510-A1i199805-199808
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67610-1K510-B1i199805-199808
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67610-1K520-A1i199805-199808
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67610-1K520-B1i199805-199808
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67610-1K530-A1i199805-199808
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67610-1K530-B1i199805-199808
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67610-1K540-B0i199804-199807
G6 GRADE PACKAGE,SHADOW GRAY,TRIM12
main67610-1K540-B0i199808-199910
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1K550-B0i199808-199910
W(FABRIC TRIM & MANUAL WINDOW),SHADOW GRAY,TRIM1#
main67610-1K550-B0i199808-199910
SHADOW GRAY,TRIM1#
main67610-1K550-B0i199804-199807
G6 GRADE PACKAGE,SHADOW GRAY,TRIM12
main67610-1K560-B0i199808-199910
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1K560-B0i199804-199807
G6 GRADE PACKAGE & W(POWER WINDOW),SHADOW GRAY,TRIM12
main67610-1K560-B0i199808-199910
W(FABRIC TRIM & POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1K580-B0i199808-199901
SHADOW GRAY,TRIM1#
main67610-1K670-B0i199910-200109
MIDIUM CHARCOAL,TRIM11
main67610-1K670-B1i199910-200109
SHADOW GRAY,TRIM16
main67610-1K690-B0i199910-200109
W(POWER WINDOW),MIDIUM CHARCOAL,TRIM11
main67610-1K690-B1i199910-200109
W(POWER WINDOW),SHADOW GRAY,TRIM16
main67610-1K700-B0i199910-200109
MIDIUM CHARCOAL,TRIM11
main67610-1K700-B1i199910-200109
SHADOW GRAY,TRIM16
main67610-1K730-B0i199910-200107
MIDIUM CHARCOAL,TRIM11
sub67610-1K670
sub67610-1K730
main67610-1K730-B1i199910-200107
SHADOW GRAY,TRIM16
sub67610-1K670
sub67610-1K730
main67610-1K750-B0i199910-200107
MIDIUM CHARCOAL,TRIM11
sub67610-1K700
sub67610-1K750
main67610-1K750-B1i199910-200107
SHADOW GRAY,TRIM16
sub67610-1K700
sub67610-1K750
main67610-1K770-B0i199910-200107
W(POWER WINDOW),MIDIUM CHARCOAL,TRIM11
sub67610-1K690
sub67610-1K770
main67610-1K770-B1i199910-200107
W(POWER WINDOW),SHADOW GRAY,TRIM16
sub67610-1K690
sub67610-1K770
main67610-1K870-B0i199910-200107
MIDIUM CHARCOAL,TRIM11
main67610-1K870-B1i199910-200107
SHADOW GRAY,TRIM16
main67610-1K880-B0i199910-200107
W(POWER WINDOW),MIDIUM CHARCOAL,TRIM11
main67610-1K880-B1i199910-200107
W(POWER WINDOW),SHADOW GRAY,TRIM16
main67650-1H400-A1i199704-199709
IVORY,TRIM0#
main67650-1H400-B1i199704-199709
MD. CHARCOAL,TRIM1#
main67650-1H620-A1i199704-199709
W(POWER WINDOW),IVORY,TRIM0#
sub67650-1H620
main67650-1H620-B1i199704-199709
W(POWER WINDOW),MD. CHARCOAL,TRIM1#
sub67650-1H620
main67650-1H630-A1i199704-199709
W(POWER WINDOW),IVORY,TRIM0#
sub67650-1H630
main67650-1H630-B2i199704-199709
W(POWER WINDOW),MD. CHARCOAL,TRIM1#
sub67650-1H630
main67650-1H650-A1i199704-199808
IVORY,TRIM0#
main67650-1H650-B1i199704-199808
MD. CHARCOAL,TRIM1#
main67650-1H730-A1i199704-199808
IVORY,TRIM0#
sub67650-1H400
main67650-1H730-B1i199704-199808
MD. CHARCOAL,TRIM1#
sub67650-1H400
main67650-1H740-A1i199704-199709
W(POWER WINDOW),IVORY,TRIM0#
sub67650-1H620
main67650-1H740-B2i199704-199708
W(POWER WINDOW),MD. CHARCOAL,TRIM1#
sub67650-1H620
main67650-1H750-A1i199704-199709
IVORY,TRIM0#
sub67650-1H630
main67650-1H750-B2i199704-199709
MD. CHARCOAL,TRIM1#
sub67650-1H630
main67650-1H790-A1i199704-199805
IVORY,TRIM0#
main67650-1H790-B1i199704-199805
MD.CHARCOAL,TRIM1#
main67650-1H791-A3i199808-199910
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67650-1H791-B2i199808-199901
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67650-1H791-B2i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM10
main67650-1H791-B3i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),SHADOW GRAY,TRIM12
main67650-1H810-A1i199704-199805
W(POWER WINDOW),IVORY,TRIM0#
main67650-1H810-B1i199704-199805
W(POWER WINDOW),MD.CHARCOAL,TRIM1#
main67650-1H811-A3i199808-199910
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67650-1H811-B2i199901-199910
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM10
main67650-1H811-B2i199808-199901
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67650-1H811-B3i199901-199910
W(FABRIC TRIM & POWER WINDOW),SHADOW GRAY,TRIM12
main67650-1H820-A1i199704-199805
IVORY,TRIM0#
main67650-1H820-B1i199704-199805
MD.CHARCOAL,TRIM1#
main67650-1H821-A3i199808-199910
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67650-1H821-B2i199901-199910
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM10
main67650-1H821-B2i199808-199901
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67650-1H821-B3i199901-199910
W(FABRIC TRIM & POWER WINDOW),SHADOW GRAY,TRIM12
main67650-1H830-B1i199704-199805
MD.CHARCOAL,TRIM1#
main67650-1H840-A1i199704-199805
IVORY,TRIM0#
main67650-1H840-B1i199704-199805
MD.CHARCOAL,TRIM1#
main67650-1H841-A3i199808-199910
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67650-1H841-B2i199808-199901
TRIM = TYPE B-*104,MD.CHARCOAL,TRIM1#
main67650-1H841-B2i199901-199910
TRIM = TYPE B-*104,MD.CHARCOAL,TRIM10
main67650-1H841-B3i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),SHADOW GRAY,TRIM12
main67650-1H850-A1i199704-199805
IVORY,TRIM0#
main67650-1H850-B1i199704-199805
MD.CHARCOAL,TRIM1#
main67650-1H851-A3i199808-199910
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67650-1H851-B2i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM10
main67650-1H851-B2i199808-199901
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67650-1H851-B3i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),SHADOW GRAY,TRIM12
main67650-1H860-A1i199704-199805
W(POWER WINDOW),IVORY,TRIM0#
main67650-1H860-B1i199704-199805
W(POWER WINDOW),MD.CHARCOAL,TRIM1#
main67650-1H861-A3i199808-199910
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67650-1H861-B2i199901-199910
W(POWER WINDOW) & TRIM = TYPE B-*104,MD.CHARCOAL,TRIM10
main67650-1H861-B2i199808-199901
W(POWER WINDOW) & TRIM = TYPE B-*104,MD.CHARCOAL,TRIM1#
main67650-1H861-B3i199901-199910
W(FABRIC TRIM & POWER WINDOW),SHADOW GRAY,TRIM12
main67650-1H870-A1i199704-199805
W(POWER WINDOW),IVORY,TRIM0#
main67650-1H870-B1i199704-199805
W(POWER WINDOW),MD.CHARCOAL,TRIM1#
main67650-1H871-A3i199808-199910
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67650-1H871-B2i199808-199901
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67650-1H871-B2i199901-199910
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM10
main67650-1H871-B3i199901-199910
W(FABRIC TRIM & POWER WINDOW),SHADOW GRAY,TRIM12
main67650-1H880-B3i199704-199808
SHADOW GRAY,TRIM1#
main67650-1K010-B0i199910-200107
MIDIUM CHARCOAL,TRIM11
main67650-1K010-B1i199910-200107
SHADOW GRAY,TRIM16
main67650-1K020-B0i199910-200107
W(POWER WINDOW),MIDIUM CHARCOAL,TRIM11
main67650-1K020-B1i199910-200107
W(POWER WINDOW),SHADOW GRAY,TRIM16
main67650-1K030-B0i199910-200107
MIDIUM CHARCOAL,TRIM11
main67650-1K030-B1i199910-200107
SHADOW GRAY,TRIM16
main67650-1K040-B0i199910-200107
SHADOW GRAY,TRIM1#
main67650-1K050-B0i199910-200107
SHADOW GRAY,TRIM1#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-06133-A0i199704-199911
IVORY,TRIM0#
sub90467-06133
main90467-06133-B0i199704-199911
SHADOW GRAY,TRIM12
sub90467-06133
main90467-06133-B0i199910-200111
SHADOW GRAY,TRIM16
sub90467-06133
main90467-06133-B0i199704-200111
SHADOW GRAY,TRIM1#
sub90467-06133
main90467-06133-B4i199704-199910
MD.CHARCOAL,TRIM10
sub90467-06133
main90467-06133-B4i199910-200111
MD.CHARCOAL,TRIM11
sub90467-06133
main90467-06133-B4i199809-199911
MD.CHARCOAL,TRIM1#
sub90467-06133
main90467-06133-C0i199808-199911
BLACK,TRIM0#,10,12
sub90467-06133
main90467-06133-C0i199704-200107
BLACK,TRIM1#
sub90467-06133
main90467-06133-C0i199910-200111
BLACK,TRIM11,16
sub90467-06133
main90467-06133-C0i199911-200111
BLACK,TRIM16
sub90467-06133
main90467-06133-C0i199704-199808
BLACK,TRIM0#,1#
sub90467-06133
main90467-06133-C0i199704-199910
BLACK,TRIM12
sub90467-06133
67601HRETAINER, DOOR TRIM, RH
main67771-12050i199704-200111
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67050-12180-A1i199704-199709
IVORY,TRIM0#
sub67050-12300
sub67050-12180
main67050-12180-B1i199704-199709
MD. CHARCOAL,TRIM1#
sub67050-12300
sub67050-12180
main67050-12190-A1i199704-199709
W(POWER WINDOW),IVORY,TRIM0#
sub67050-12310
sub67050-12190
main67050-12190-B1i199704-199709
W(POWER WINDOW),MD. CHARCOAL,TRIM1#
sub67050-12310
sub67050-12190
main67050-12200-A1i199704-199709
W(POWER WINDOW),IVORY,TRIM0#
sub67050-12320
main67050-12200-B2i199704-199709
W(POWER WINDOW),MD. CHARCOAL,TRIM1#
sub67050-12320
main67050-12220-A1i199704-199808
IVORY,TRIM0#
main67050-12220-B1i199704-199808
MD. CHARCOAL,TRIM10
main67050-12240-A1i199704-199805
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67050-12240-B1i199704-199805
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67050-12241-A3i199808-199910
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67050-12241-B2i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM10
main67050-12241-B2i199808-199901
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67050-12241-B3i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),SHADOW GRAY,TRIM12
main67050-12300-A1i199704-199804
IVORY,TRIM0#
main67050-12300-B1i199704-199808
MD. CHARCOAL,TRIM1#
main67050-12310-A1i199704-199709
W(POWER WINDOW),IVORY,TRIM0#
main67050-12310-B2i199704-199709
W(POWER WINDOW),MD. CHARCOAL,TRIM1#
main67050-12320-A1i199704-199709
IVORY,TRIM0#
main67050-12320-B2i199704-199709
MD. CHARCOAL,TRIM1#
main67050-12360-A1i199704-199805
W(POWER WINDOW),IVORY,TRIM0#
main67050-12360-B1i199704-199805
W(POWER WINDOW),MD.CHARCOAL,TRIM1#
main67050-12361-A3i199808-199910
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67050-12361-B3i199901-199910
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM10
main67050-12361-B3i199808-199901
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67050-12361-B4i199901-199910
W(FABRIC TRIM & POWER WINDOW),SHADOW GRAY,TRIM12
main67050-12370-A1i199704-199805
IVORY,TRIM0#
main67050-12370-B1i199704-199805
MD.CHARCOAL,TRIM1#
main67050-12371-A3i199808-199910
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67050-12371-B2i199901-199910
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM10
main67050-12371-B2i199808-199901
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67050-12371-B3i199901-199910
W(FABRIC TRIM & POWER WINDOW),SHADOW GRAY,TRIM12
main67050-12380i199805-199808
main67050-12380-B1i199704-199805
MD.CHARCOAL,TRIM1#
main67050-12390-A1i199704-199805
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67050-12390-B1i199704-199805
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67050-12391-A3i199808-199910
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67050-12391-B2i199901-199910
TRIM = TYPE B-*104,MD.CHARCOAL,TRIM10
main67050-12391-B2i199808-199901
TRIM = TYPE B-*104,MD.CHARCOAL,TRIM1#
main67050-12391-B3i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),SHADOW GRAY,TRIM12
main67050-12400-A1i199704-199805
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67050-12400-B1i199704-199805
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67050-12401-A3i199808-199910
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67050-12401-B2i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM10
main67050-12401-B2i199808-199901
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67050-12401-B3i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),SHADOW GRAY,TRIM12
main67050-12410-A1i199704-199805
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67050-12410-B1i199704-199805
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67050-12411-A3i199808-199910
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67050-12411-B2i199808-199901
W(POWER WINDOW) & TRIM = TYPE B-*104,MD.CHARCOAL,TRIM1#
main67050-12411-B2i199901-199910
W(POWER WINDOW) & TRIM = TYPE B-*104,MD.CHARCOAL,TRIM10
main67050-12411-B3i199901-199910
W(FABRIC TRIM & POWER WINDOW),SHADOW GRAY,TRIM12
main67050-12420-A1i199704-199805
W(POWER WINDOW),IVORY,TRIM0#
main67050-12420-B1i199704-199805
W(POWER WINDOW),MD.CHARCOAL,TRIM1#
main67050-12421-A3i199808-199910
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67050-12421-B2i199808-199901
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67050-12421-B2i199901-199910
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM10
main67050-12421-B3i199901-199910
W(FABRIC TRIM & POWER WINDOW),SHADOW GRAY,TRIM12
main67050-12440-B3i199704-199808
SHADOW GRAY,TRIM1#
main67050-12710-B2i199704-199808
SHADOW GRAY,TRIM1#
main67050-12720-B2i199704-199808
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-02400-A2i199809-199911
IVORY,TRIM0#
main67620-02400-B1i199809-199911
MD.CHARCOAL,TRIM10
main67620-02400-B3i199901-199911
SHADOW GRAY,TRIM12
main67620-02410-A2i199809-199911
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),IVORY,TRIM0#
main67620-02410-B1i199809-199911
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM10
main67620-02410-B3i199901-199911
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM12
main67620-02420-A2i199809-199911
IVORY,TRIM0#
main67620-02420-B1i199809-199911
MD.CHARCOAL,TRIM10
main67620-02420-B3i199901-199911
SHADOW GRAY,TRIM12
main67620-02430-A2i199809-199911
IVORY,TRIM0#
main67620-02430-B1i199809-199911
MD.CHARCOAL,TRIM10
main67620-02430-B3i199901-199911
SHADOW GRAY,TRIM12
main67620-02440-A2i199809-199911
IVORY,TRIM0#
main67620-02440-B1i199809-199911
MD.CHARCOAL,TRIM10
main67620-02440-B3i199901-199911
SHADOW GRAY,TRIM12
main67620-02580-B0i199809-199901
SHADOW GRAY,TRIM1#
main67620-02630-A2i199809-199911
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),IVORY,TRIM0#
main67620-02630-B1i199809-199911
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM10
main67620-02630-B3i199901-199911
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM12
main67620-02640-A2i199809-199911
W(POWER DOOR LOCK & POWER WINDOW),IVORY,TRIM0#
main67620-02640-B1i199809-199911
W(POWER DOOR LOCK & POWER WINDOW),MD.CHARCOAL,TRIM10
main67620-02640-B3i199901-199911
W(POWER DOOR LOCK & POWER WINDOW),SHADOW GRAY,TRIM12
main67620-02650-B1i199809-199901
SHADOW GRAY,TRIM12
main67620-02660-B1i199809-199901
SHADOW GRAY,TRIM12
main67620-02670-B1i199809-199901
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-02680-B0i199911-200111
MD.CHARCOAL,TRIM11
main67620-02680-B1i199911-200111
SHADOW GRAY,TRIM16
main67620-02690-B0i199911-200111
W(POWER WINDOW),MD.CHARCOAL,TRIM11
main67620-02690-B1i199911-200111
W(POWER WINDOW),SHADOW GRAY,TRIM16
main67620-02700-B0i199911-200111
MD.CHARCOAL,TRIM11
main67620-02700-B1i199911-200111
SHADOW GRAY,TRIM16
main67620-02710-B0i199911-200111
SHADOW GRAY,TRIM1#
main67620-02720-B0i199911-200111
W(POWER WINDOW),MD.CHARCOAL,TRIM11
main67620-02720-B1i199911-200111
W(POWER WINDOW),SHADOW GRAY,TRIM16
main67620-02730-B0i199911-200111
MD.CHARCOAL,TRIM11
main67620-02730-B1i199911-200111
SHADOW GRAY,TRIM16
main67620-02740-B0i199911-200111
MD.CHARCOAL,TRIM11
main67620-02740-B1i199911-200111
SHADOW GRAY,TRIM16
main67620-02750-B0i199911-200111
SHADOW GRAY,TRIM1#
main67660-12020-B0i199808-199901
G6 GRADE PACKAGE,SHADOW GRAY,TRIM1#
main67660-12020-B0i199704-199910
SHADOW GRAY,TRIM1#
main67660-12030-B0i199808-199901
G6 GRADE PACKAGE,SHADOW GRAY,TRIM1#
main67660-12030-B0i199704-199910
SHADOW GRAY,TRIM1#
main67660-12040-B0i199808-199901
G6 GRADE PACKAGE & W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67660-12020
main67660-12040-B0i199704-199910
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67660-12020
main67660-12060-A0i199709-199804
W(POWER WINDOW),IVORY,TRIM0#
main67660-12060-B1i199709-199808
W(POWER WINDOW),MD.CHARCOAL.,TRIM1#
main67660-12070-A0i199709-199808
IVORY,TRIM0#
main67660-12070-B0i199709-199804
MD.CHARCOAL.,TRIM1#
main67660-12080-A0i199709-199808
IVORY,TRIM0#
main67660-12080-B0i199709-199808
MD.CHARCOAL.,TRIM1#
main67660-12090-A0i199709-199808
W(POWER WINDOW),IVORY,TRIM0#
sub67660-12060
main67660-12090-B0i199709-199808
W(POWER WINDOW),MD.CHARCOAL.,TRIM1#
sub67660-12060
main67660-12100-A0i199709-199808
W(POWER WINDOW),IVORY,TRIM0#
main67660-12100-B0i199709-199808
W(POWER WINDOW),MA.CHARCOAL.,TRIM1#
main67660-12150-A1i199808-199910
IVORY,TRIM0#
main67660-12150-B0i199808-199910
MD.CHARCOAL,TRIM10
main67660-12150-B2i199901-199910
SHADOW GRAY,TRIM12
main67660-12160-A1i199808-199910
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),IVORY,TRIM0#
main67660-12160-B0i199901-199910
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM10
main67660-12160-B0i199808-199901
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM1#
main67660-12160-B3i199901-199910
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM12
main67660-12170-A1i199808-199910
IVORY,TRIM0#
main67660-12170-B0i199901-199910
MD.CHARCOAL,TRIM10
main67660-12170-B0i199808-199901
MD.CHARCOAL,TRIM1#
main67660-12170-B4i199901-199910
SHADOW GRAY,TRIM12
main67660-12180-A1i199808-199910
IVORY,TRIM0#
sub67660-12150
main67660-12180-B0i199808-199901
MD.CHARCOAL,TRIM1#
sub67660-12150
main67660-12180-B0i199901-199910
MD.CHARCOAL,TRIM10
sub67660-12150
main67660-12180-B2i199901-199910
SHADOW GRAY,TRIM12
sub67660-12150
main67660-12190-A1i199808-199910
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67660-12190-B0i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM10
main67660-12190-B0i199808-199901
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67660-12190-B3i199901-199910
W(FABRIC TRIM & MANUAL WINDOW),SHADOW GRAY,TRIM12
main67660-12200-A1i199808-199910
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),IVORY,TRIM0#
sub67660-12160
main67660-12200-B0i199901-199910
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM10
sub67660-12160
main67660-12200-B0i199808-199901
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),MD.CHARCOAL,TRIM1#
sub67660-12160
main67660-12200-B2i199901-199910
W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM12
sub67660-12160
main67660-12210-A1i199808-199910
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
sub67660-12170
main67660-12210-B0i199808-199901
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
sub67660-12170
main67660-12210-B0i199901-199910
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM10
sub67660-12170
main67660-12210-B3i199901-199910
W(FABRIC TRIM & POWER WINDOW),SHADOW GRAY,TRIM12
sub67660-12170
main67660-12220-A1i199805-199808
IVORY,TRIM0#
main67660-12220-B1i199805-199808
MD.CHARCOAL,TRIM1#
main67660-12230-A1i199805-199808
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67660-12230-B1i199805-199808
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67660-12240-A1i199805-199808
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67660-12240-B1i199805-199808
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67660-12250-B0i199808-199910
W(LEATHER TRIMT & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67660-12250-B1i199910-200107
MIDIUM CHARCOAL,TRIM1#
main67660-12260-A1i199805-199808
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67660-12260-B1i199805-199808
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67660-12270-A1i199805-199808
W(FABRIC TRIM & MANUAL WINDOW),IVORY,TRIM0#
main67660-12270-B1i199805-199808
W(FABRIC TRIM & MANUAL WINDOW),MD.CHARCOAL,TRIM1#
main67660-12280-A1i199805-199808
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67660-12280-B1i199805-199808
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67660-12290-A1i199805-199808
W(FABRIC TRIM & POWER WINDOW),IVORY,TRIM0#
main67660-12290-B1i199805-199808
W(FABRIC TRIM & POWER WINDOW),MD.CHARCOAL,TRIM1#
main67660-12300-B0i199808-199910
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67660-12300-B0i199804-199807
G6 GRADE PACKAGE,SHADOW GRAY,TRIM12
main67660-12310-B0i199808-199910
SHADOW GRAY,TRIM1#
main67660-12310-B0i199808-199910
W(FABRIC TRIM & MANUAL WINDOW),SHADOW GRAY,TRIM1#
main67660-12310-B0i199804-199807
G6 GRADE PACKAGE,SHADOW GRAY,TRIM12
main67660-12320-B0i199808-199910
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67660-12320-B0i199804-199807
G6 GRADE PACKAGE & W(POWER WINDOW),SHADOW GRAY,TRIM12
main67660-12320-B0i199808-199910
W(FABRIC TRIM & POWER WINDOW),SHADOW GRAY,TRIM1#
main67660-12340-B0i199808-199901
SHADOW GRAY,TRIM1#
main67660-12390-B0i199808-199901
MD. CHARCOAL,TRIM1#
main67660-12450-B0i199910-200109
MIDIUM CHARCOAL,TRIM11
sub67660-12510
sub67660-12450
main67660-12450-B1i199910-200109
SHADOW GRAY,TRIM16
sub67660-12510
sub67660-12450
main67660-12480-B0i199910-200109
W(POWER WINDOW),MIDIUM CHARCOAL,TRIM11
sub67660-12550
sub67660-12480
main67660-12480-B1i199910-200109
W(POWER WINDOW),SHADOW GRAY,TRIM16
sub67660-12550
sub67660-12480
main67660-12490-B0i199910-200109
MIDIUM CHARCOAL,TRIM11
sub67660-12530
sub67660-12490
main67660-12490-B1i199910-200109
SHADOW GRAY,TRIM16
sub67660-12530
sub67660-12490
main67660-12510-B0i199910-200107
MIDIUM CHARCOAL,TRIM11
sub67660-12510
main67660-12510-B1i199910-200107
SHADOW GRAY,TRIM16
sub67660-12510
main67660-12530-B0i199910-200107
MIDIUM CHARCOAL,TRIM11
sub67660-12530
main67660-12530-B1i199910-200107
SHADOW GRAY,TRIM16
sub67660-12530
main67660-12550-B0i199910-200107
W(POWER WINDOW),MIDIUM CHARCOAL,TRIM11
sub67660-12550
main67660-12550-B1i199910-200107
W(POWER WINDOW),SHADOW GRAY,TRIM16
sub67660-12550
main67660-12640-B0i199910-200107
MIDIUM CHARCOAL,TRIM11
main67660-12640-B1i199910-200107
SHADOW GRAY,TRIM16
main67660-12650-B0i199910-200107
W(POWER WINDOW),MIDIUM CHARCOAL,TRIM11
main67660-12650-B1i199910-200107
W(POWER WINDOW),SHADOW GRAY,TRIM16
main67660-12670-B0i199910-200107
MIDIUM CHARCOAL,TRIM11
main67660-12670-B1i199910-200107
SHADOW GRAY,TRIM16
main67660-12680-B0i199910-200107
W(POWER WINDOW),MIDIUM CHARCOAL,TRIM11
main67660-12680-B1i199910-200107
W(POWER WINDOW),SHADOW GRAY,TRIM16
main67660-12690-B0i199910-200107
MIDIUM CHARCOAL,TRIM11
main67660-12690-B1i199910-200107
SHADOW GRAY,TRIM16
main67660-12700-B0i199910-200107
SHADOW GRAY,TRIM1#
main67660-12710-B0i199910-200107
SHADOW GRAY,TRIM1#
67735PAD, FRONT DOOR TRIM, LOWER RH
main67735-12050i199704-199804
sub67735-12051
main67735-12051i199804-200107
67736PAD, FRONT DOOR TRIM, LOWER LH
main67736-12050i199704-199804
sub67736-12051
main67736-12051i199804-200107
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68171-12270i199704-200109
RH
main68171-12280i199704-200107
RH
main68172-12190i199704-200109
LH
main68172-12200i199704-200107
LH
74241APLUG, FRONT DOOR ARMREST, RH
main74241-12030-A0i199704-199910
IVORY,TRIM0#
main74241-12030-B0i199704-200107
MD.CHARCOAL,TRIM1#
main74241-12030-B0i199910-200107
MD.CHARCOAL,TRIM11
main74241-12030-B0i199808-199910
MD.CHARCOAL,TRIM10
main74241-12030-B1i199704-200107
SHADOW GRAY,TRIM1#
main74241-12030-B1i199808-199910
SHADOW GRAY,TRIM12
main74241-12030-B1i199910-200107
SHADOW GRAY,TRIM16
74242APLUG, FRONT DOOR ARMREST, LH
main74242-12020-A0i199704-199910
IVORY,TRIM0#
main74242-12020-B0i199808-199910
MD.CHARCOAL,TRIM10
main74242-12020-B0i199704-200107
MD.CHARCOAL,TRIM1#
main74242-12020-B0i199910-200107
MD.CHARCOAL,TRIM11
main74242-12020-B1i199808-199910
SHADOW GRAY,TRIM12
main74242-12020-B1i199704-200107
SHADOW GRAY,TRIM1#
main74242-12020-B1i199910-200107
SHADOW GRAY,TRIM16
9016460018
main90164-60018
9018905097
main90189-05097
9046709177
main90467-09177
9090189022
main90901-89022
9095006105
main90950-06105
9356055016
main93560-55016

18 parts on this diagram · 7 diagrams in section

Toyota COROLLA HB/LB FRONT DOOR PANEL & GLASS — Parts Diagram | EPC Data
