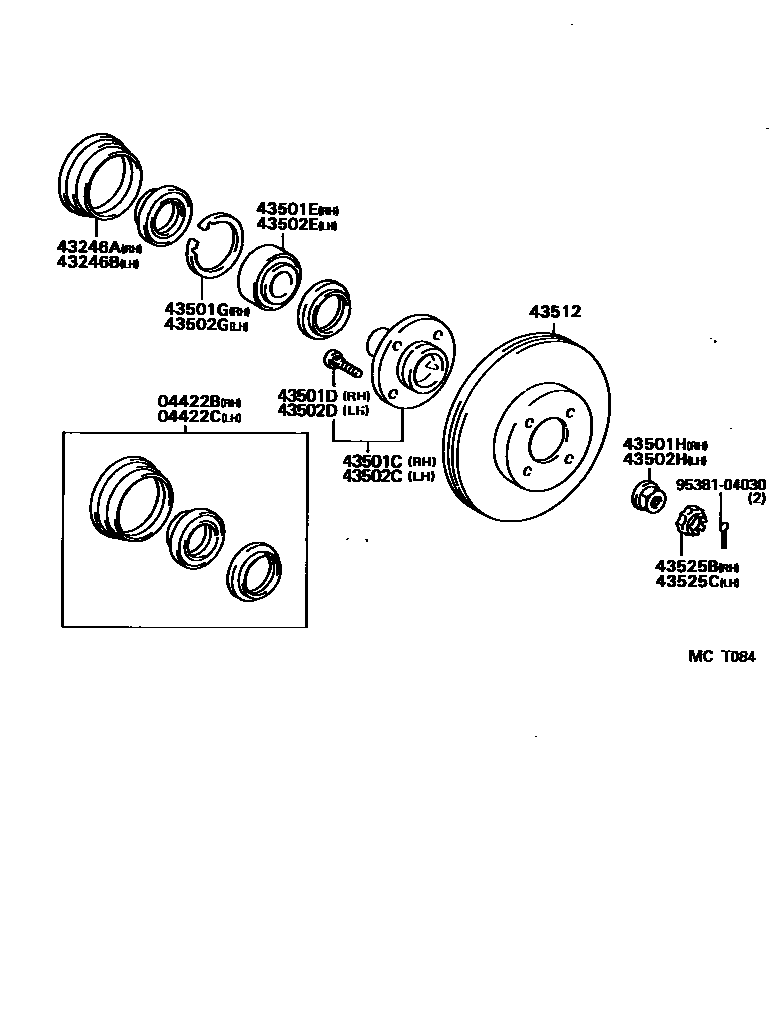

Toyota COROLLA HB/LB — FRONT AXLE HUB

04422BSEAL KIT, FRONT AXLE OIL, RH

main04422-12091iWZE110,ZZE11#..JPP..(4FC,5F)199704-200109

main04422-12100iWZE110,ZZE11#..JPP199704-200109

W(ABS)

main04422-12100iCDE110200008-200109

04422CSEAL KIT,FRONT AXLE OIL, LH

main04422-12091iWZE110,ZZE11#..JPP..(4FC,5F)199704-200109

main04422-12100iCDE110200008-200109

main04422-12100iAE111,CE110,EE111..JPP199704-200109

W(ABS)

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-12020iCDE110200008-200109

main43246-12020iWZE110,ZZE11#..JPP199704-200109

W(ABS)

main43246-12040iAE111,CE110,EE111..JPP..(LUNA,STD,TERRA)199704-200109

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-12020iWZE110,ZZE11#..JPP199704-200109

W(ABS)

main43246-12020iCDE110200008-200109

main43246-12040iWZE110,ZZE11#..JPP..(4FC,5F)199704-200109

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200104

sub43502-02021

main43502-02021iWZE110,ZZE11#..UKP200104-200111

sub43502-02060

main43502-12090iAE111,CE110,EE111..JPP199704-200109

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAE111,CE110,EE111..JPP199704-200111

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36087iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main90363-38006iCDE110,WZE110,ZZE11#..JPP199704-200109

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001iCDE110,WZE110,ZZE11#..JPP199704-200109

main90521-79002iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-22001iAE111,CE110,EE111..JPP199709-200111

main90179-22020iAE111,CE110,EE111199704-199709

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200104

sub43502-02021

main43502-02021iWZE110,ZZE11#..UKP200104-200111

sub43502-02060

main43502-12090iAE111,CE110,EE111..JPP199704-200109

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36087iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main90363-38006iCDE110,WZE110,ZZE11#..JPP199704-200109

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001iCDE110,WZE110,ZZE11#..JPP199704-200109

main90521-79002iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-22001iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199709-200111

main90179-22020iAE111,CE110,EE111199704-199709

43512DISC, FRONT

main43512-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main43512-12550iAE111,CE110,EE111..JPP199704-200109

main43512-12580iZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199711-200109

ROUGH ROAD PACKAGE

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

9538104030

main95381-04030

18 parts on this diagram · 1 diagram in section
