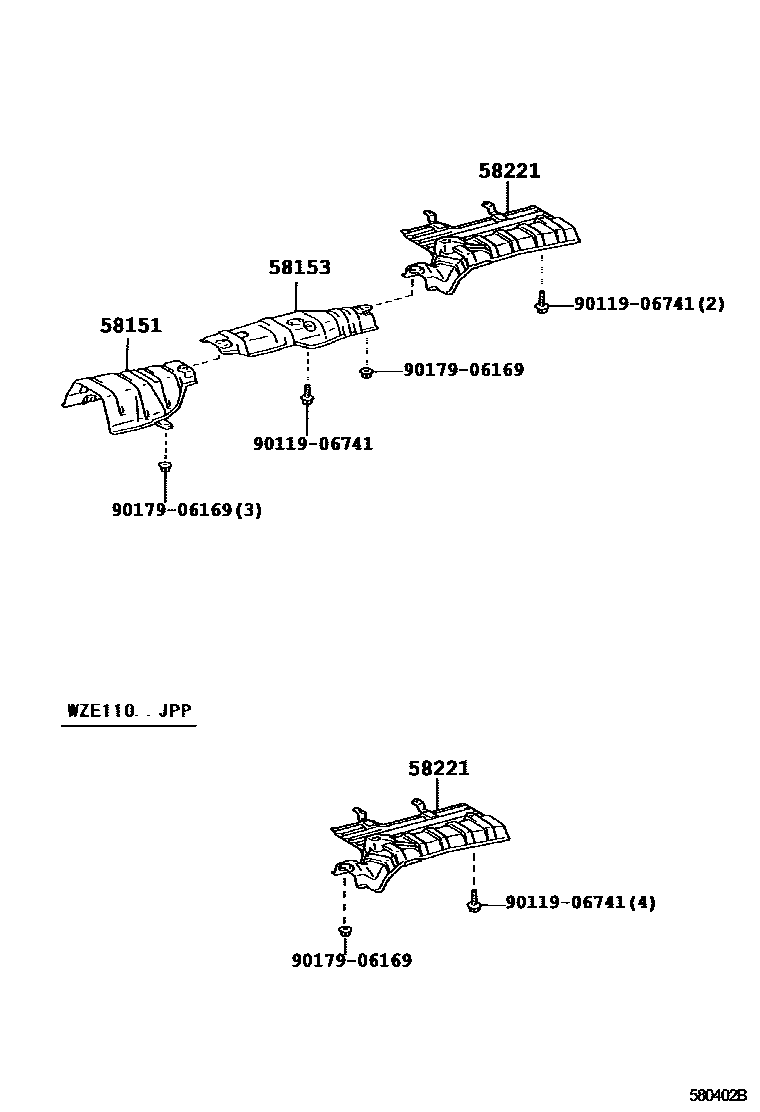

Toyota COROLLA HB/LB — FLOOR INSULATOR

0001 1 0003 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-02020iAE111,EE111,ZZE11#..UKP199809-200111

main58151-12200iZZE11#..JPP199704-200109

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-02030iAE111,EE111,ZZE11#..UKP199809-200111

main58153-12150iAE111,EE111199704-200109

58221INSULATOR, CENTER FLOOR HEAT, NO.1

main58044-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58044-12050iCDE110,WZE110,ZZE11#..JPP199704-200109

9011906741

main90119-06741

9017906169

main90179-06169

5 parts on this diagram · 2 diagrams in section
