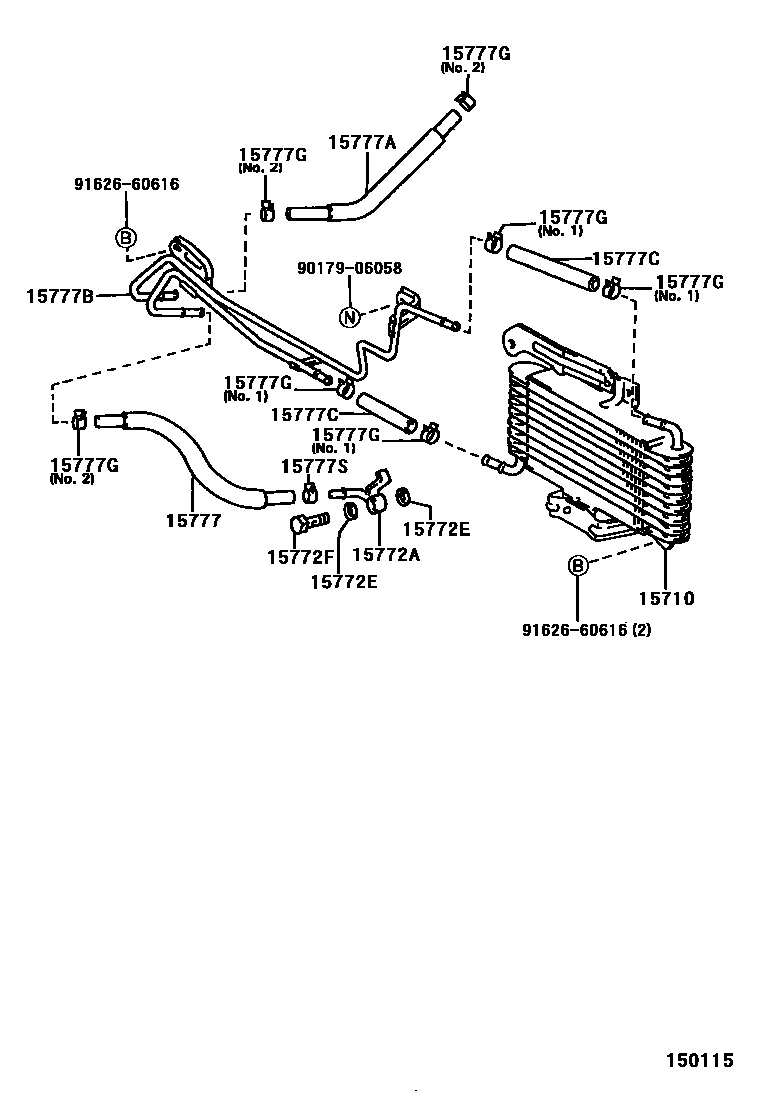

Toyota COROLLA HB/LB — ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1

15710COOLER ASSY, OIL

main15700-16100i4AFE..AE111..UKP199704-199911

main15710-0X010i1WZ..WZE110199912-200111

main15710-27020i1CDFTV..CDE110200008-200109

main15710-64010i2CE..CE110199704-199910

15772AUNION(FOR OIL PIPE)

main90080-40016i4AFE..AE111..UKP199809-199902

main90405-10030i4AFE..AE111..UKP199704-199911

15772EGASKET(FOR OIL PIPE)

main90430-12031i4AFE..AE111..UKP199704-199911

15772FBOLT, UNION(FOR OIL PIPE)

main90401-12009i4AFE..AE111..UKP199704-199911

15777HOSE, OIL COOLER

main15777-0X010i1WZ..WZE110199912-200111

main15777-16110i4AFE..AE111..JPP199704-199911

main15777-27010i1CDFTV..CDE110200008-200109

main90445-21006i2CE..CE110199704-199910

15777AHOSE, OIL COOLER

main15778-16080i4AFE..AE111..UKP199704-199911

15777BPIPE, OIL COOLER

main15767-16140i4AFE..AE111..JPP199704-199911

main15767-64011i2CE..CE110199704-199910

NO.2

main15768-27010i1CDFTV..CDE110200008-200109

main15768-64071i2CE..CE110199704-199910

NO.1

main15769-64011i2CE..CE110199704-199910

NO.3

15777CHOSE, OIL COOLER

main15778-27020i1CDFTV..CDE110200008-200109

main15779-16030i4AFE..AE111..UKP199704-199911

15777GCLAMP OR CRIP, HOSE

main90080-46296i1WZ..WZE110199912-200111

NO.2

main90467-15018i4AFE..AE111..UKP199704-199911

NO.1

main90467-15025i4AFE..AE111..JPP199704-199911

NO.2

sub90467-15018

main90467-20005i1CDFTV..CDE110199704-200109

sub96134-41900

15777SCLAMP OR CLIP, HOSE

main90467-15025i4AFE..AE111..UKP199704-199911

sub90467-15018

9017906058

main90179-06058

9162660616

main91626-60616

12 parts on this diagram · 4 diagrams in section
