Toyota COROLLA HB/LB — CONSOLE BOX & BRACKET

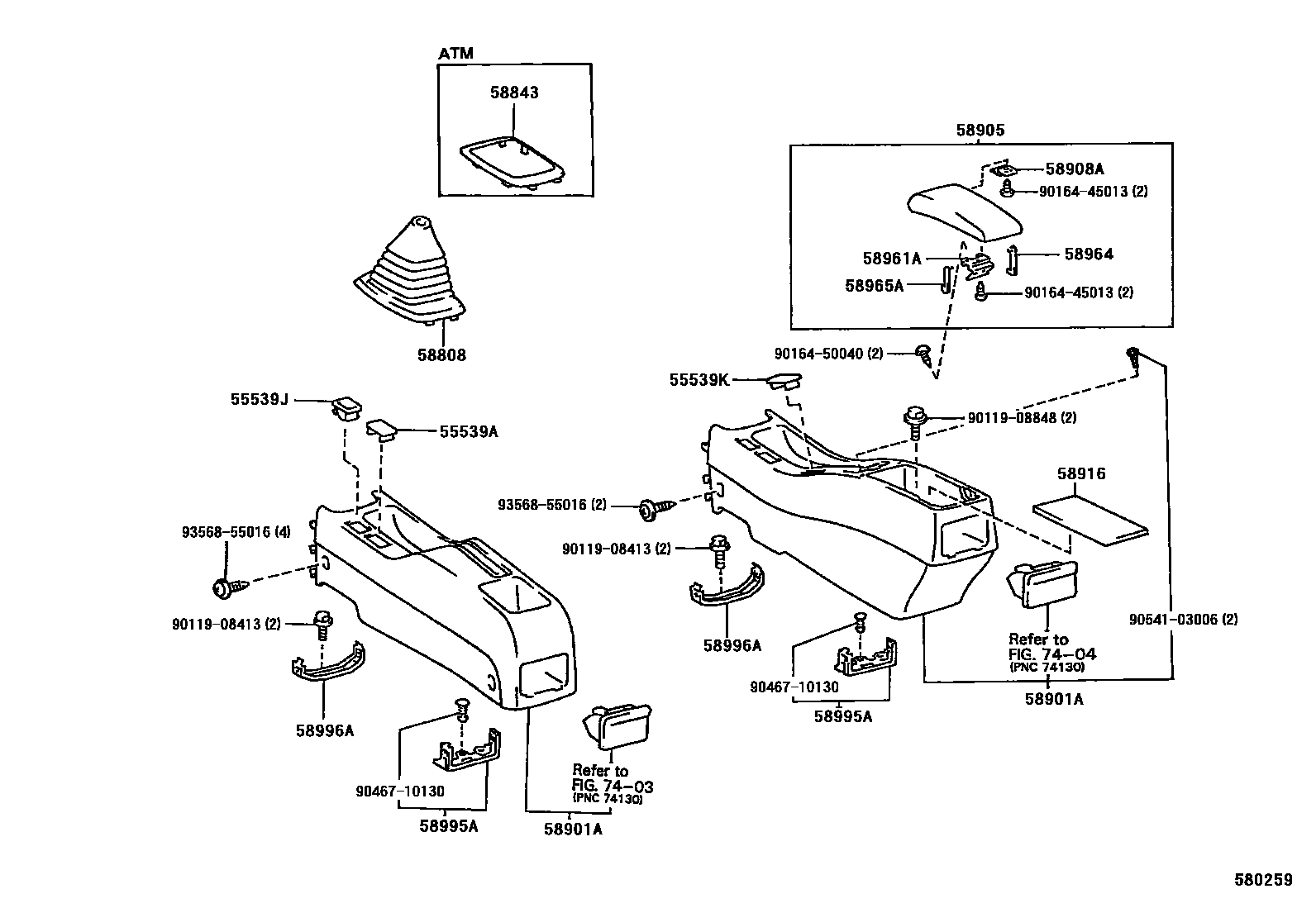

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-12120-B0i199205-199704
SHADOW GRAY,TRIM1#
main55539-12120-J0i199205-199704
DARK BLUE,TRIM8#
main55539-20020-03i199205-199208
W(SEAT HEATER),SHADOW GRAY,TRIM1#
main55539-20020-P0i199208-199704
W(SEAT HEATER),SHADOW GRAY,TRIM1#
main55539-20020-W3i199205-199704
W(SEAT HEATER),DARK BLUE,TRIM8#
55539JCOVER, SPARE SWITCH HOLE
main55539-20020-03i199205-199208
SHADOW GRAY,TRIM1#
main55539-20020-P0i199208-199704
SHADOW GRAY,TRIM1#
main55539-20020-W3i199205-199704
DARK BLUE,TRIM8#
55539KCOVER, SPARE SWITCH HOLE
main55539-12120-B0i199205-199704
SHADOW GRAY,TRIM1#
main55539-12120-J0i199205-199704
DARK BLUE,TRIM8#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-12111-P0i199205-199312
SHADOW GRAY,TRIM1#
main58808-12111-W3i199205-199312
DARK BLUE,TRIM8#
main58808-12112-P0i199312-199704
SHADOW GRAY,TRIM1#
main58808-12112-W3i199312-199704
DARK BLUE,TRIM8#
58843BEZEL, SHIFTING HOLE
main58843-12060-P0i199205-199312
SHADOW GRAY,TRIM1#
main58843-12060-W3i199205-199312
DARK BLUE,TRIM8#
main58843-12080-B0i199312-199704
SHADOW GRAY,TRIM1#
main58843-12080-J0i199312-199704
DARK BLUE,TRIM8#
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-12220-B0i199205-199704
SHADOW GRAY,TRIM1#
main58901-12220-B0i199205-199704
W(HEAD LAMP CLEANER),SHADOW GRAY,TRIM1#
main58901-12220-J0i199205-199704
DARK BLUE,TRIM8#
main58901-12220-J0i199205-199704
W(HEAD LAMP CLEANER),DARK BLUE,TRIM8#
main58901-12230-P0i199205-199704
SHADOW GRAY,TRIM1#
main58901-12230-W3i199205-199704
DARK BLUE,TRIM8#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-12120-B0i199205
SHADOW GRAY,TRIM1#
main58905-12120-J0i199205
DARK BLUE,TRIM8#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-32020i199205
58916MAT, BOX BOTTOM
main58916-12040i199205-199405
58961AHINGE, CONSOLE COMPARTMENT DOOR MALE
main58961-12090i199205
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
main58964-12040i199205
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
main58965-12040i199205
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-12080i199205
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-12090i199205
9011908413
main90119-08413
9011908848
main90119-08848
9016445013
main90164-45013
9016450040
main90164-50040
9046710130
main90467-10130
9054103006
main90541-03006
9356855016
main93568-55016

21 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota COROLLA HB/LB

This section contains 21 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota COROLLA HB/LB. Key components include: COVER, SPARE SWITCH HOLE, COVER SUB-ASSY, SHIFTING HOLE, BEZEL, SHIFTING HOLE.
