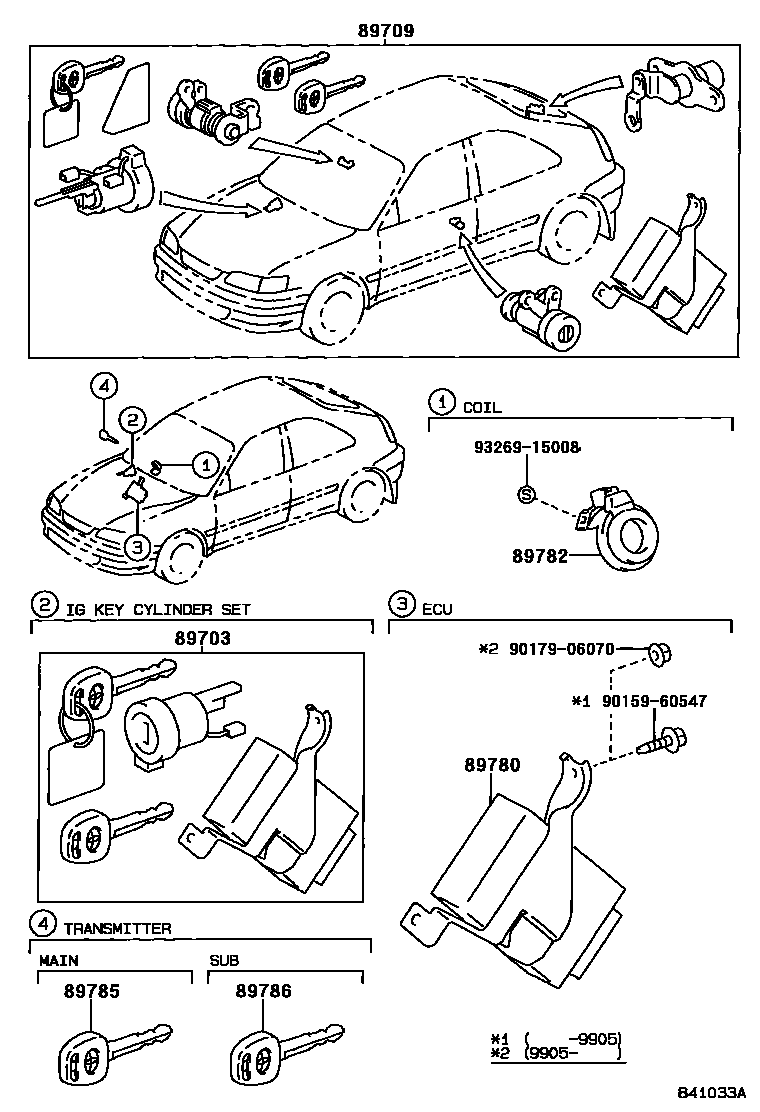

Toyota COROLLA HB/LB — ANTI-THEFT DEVICE

0001 1 0002 1 0003 1 0005 1W(KEY LESS ENTRY) 0006 1W(KEY LESS ENTRY) 0007 1 0008 1 0009 1W(KEY LESS ENTRY) 0010 1 0011 1W(KEY LESS ENTRY)

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-02010iAE111,EE111..UKP199809-199911

main89703-02020iZZE111..UKP..TERRA;ZZE112..UKP..RHD..TERRA;ZZE112..UKP..LHD..(4FC,5F)199911-200111

main89703-02030iWZE110..LB..TERRA199912-200111

main89703-12050iAE111,CE110,EE111..JPP..LHD199704-199905

main89703-12051iAE111,CE110,EE111..JPP..LHD199905-199910

main89703-12060iAE111,CE110,EE111..JPP..RHD199704-199905

main89703-12061iAE111,CE110,EE111..JPP..RHD199905-199910

main89703-12140iZZE112..JPP..LHD..LB..SOL;CDE110,WZE110,ZZE11#..JPP..(STD,TERRA)199910-200109

89709COMPUTER SET, TRANSPONDER KEY

main89709-02010iAE111,EE111..UKP..RHD199809-199911

W(KEY LESS ENTRY)

main89709-02010iAE111,EE111..UKP..RHD199809-199911

AUSTRIA OR GERMANY OR NORWAY OR SWITZERLAND SPEC

main89709-02020iAE111,EE111..UKP..TERRA199809-199911

main89709-02030iAE111,EE111..UKP..LHD199809-199911

W(KEY LESS ENTRY)

main89709-02040iAE111,EE111..UKP..LHD199809-199911

FRANCE SPEC

main89709-02050iAE111,EE111..UKP..LHD199809-199911

DENMARK OR SWEDEN SPEC

main89709-02070iWZE110..LB..TERRA199912-200111

main89709-02080iAE111,EE111..UKP..RHD199811-199911

W(KEY LESS ENTRY (2 TRANSMITTER))

main89709-12240iAE111,CE110,EE111..JPP..LHD199704-199905

main89709-12241iAE111,CE110,EE111..JPP..LHD199905-199910

main89709-12250iAE111,CE110,EE111..JPP..RHD199704-199905

main89709-12251iAE111,CE110,EE111..JPP..RHD199905-199910

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-02010iAE111,EE111..UKP199809-199911

main89780-02020iWZE110..LB199912-200111

main89780-12060iAE111,CE110,EE111..JPP..LHD199704-199905

main89780-12061iAE111,CE110,EE111..JPP..LHD199905-199910

main89780-12070iAE111,CE110,EE111..JPP..RHD199704-199905

main89780-12071iAE111,CE110,EE111..JPP..RHD199905-199910

main89780-12080iWZE110..LHD..HB200001-200107

main89780-12090iWZE110..RHD..HB200001-200107

main89780-12110iCDE110..LHD200008-200109

main89780-12120iCDE110..RHD200008-200107

89782COIL, TRANSPONDER KEY

main89782-44010iCDE110,WZE110,ZZE11#..JPP199704-200109

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-02050iAE111,EE111,WZE110..UKP..(LUNA,TERRA)199809-200111

main89785-05020iZZE111..UKP..TERRA;ZZE112..UKP..RHD..TERRA;ZZE112..UKP..LHD..(4FC,5F)199911-200111

main89785-26020iZZE112..JPP..LHD..LB..SOL;CDE110,WZE110,ZZE11#..JPP..(STD,TERRA)199704-200109

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-02020iAE111,EE111,WZE110..UKP199809-200111

main89786-05020iZZE11#..UKP199911-200111

main89786-26020iCDE110,WZE110,ZZE11#..JPP199704-200109

9015960547

main90159-60547

9017906070

main90179-06070

9326915008

main93269-15008

9 parts on this diagram · 10 diagrams in section
