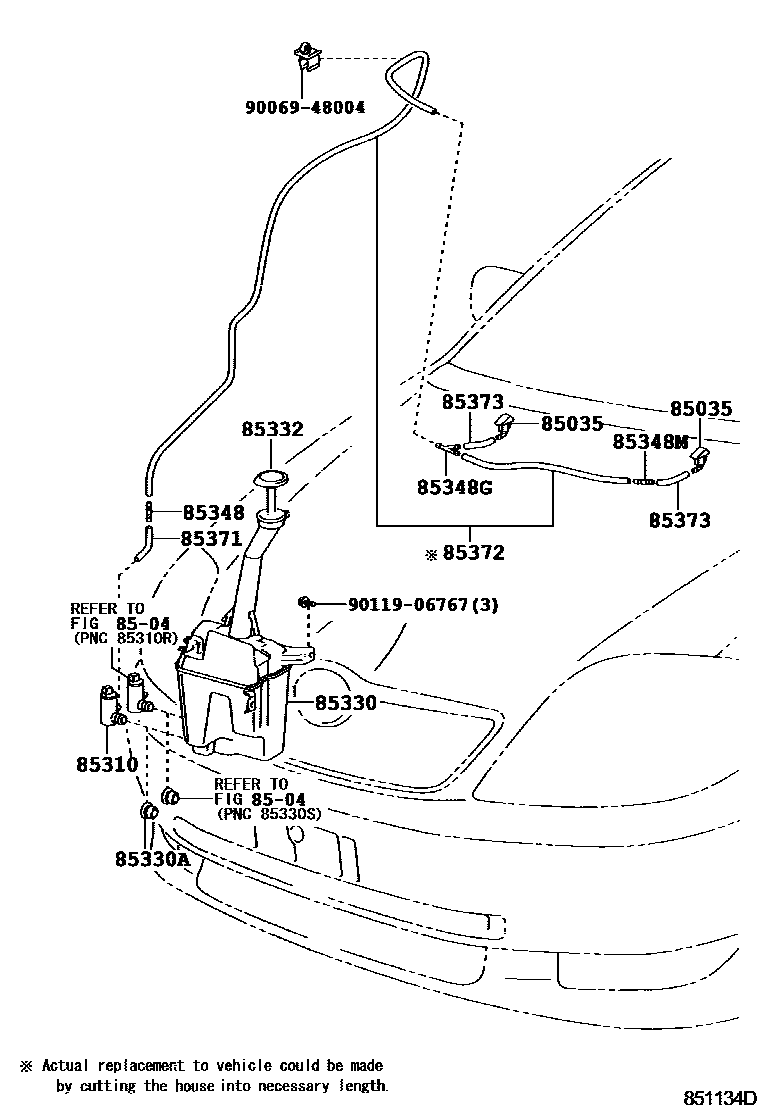

Toyota COROLLA HB (JPP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-02080×2i200405-200504

main85381-02081×2i200505

main85381-02090×2i200405-200504

main85381-02091×2i200505

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-05030i200209-200405

main85330-05031i200505

85330JAR ASSY, WINDSHIELD WASHER

main85315-02090i200209-200405

main85315-02100i200405-200504

W(HEADLAMP CLEANER)

85330ABUSH, WINDSHIELD WASHER JAR

main85336-05070i200405-200505

main90069-20005i200505

85332CAP, WINDSHIELD WASHER JAR

main85316-02090i200405-200504

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050i200209-200405

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85378-05030i200209-200405

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-05050i200405

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46011i200209-200405

*H,L=50

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46011i200405-200610

L=1490

main90069-46012i200209-200405

L=3910

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-16009×2i200209-200405

9006948004

main90069-48004

9011906767

main90119-06767

14 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COROLLA HB (JPP)

This section contains 14 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA HB (JPP). Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
