Toyota COROLLA HB (JPP) — V-BELT

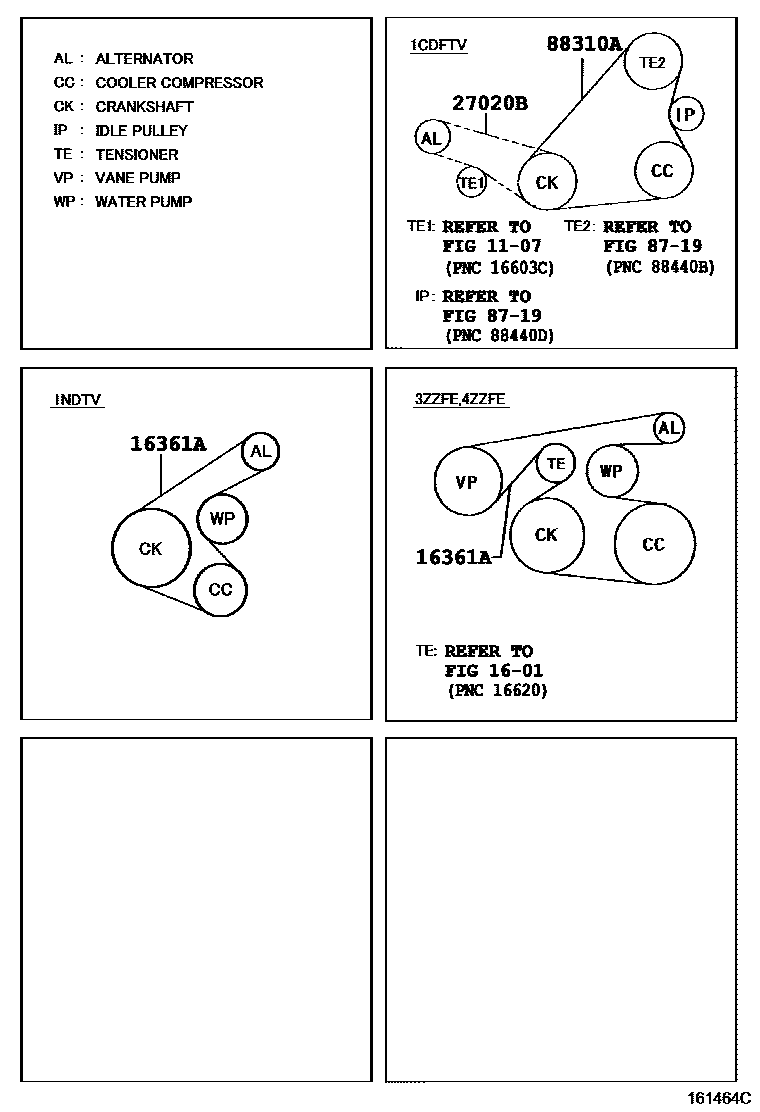

Parts diagram

1107MOUNTING

→ Go to FIG 11-07

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02516i200209-200405

W(AIR CONDITIONER)

main90916-02539i200209-200405

main90916-02546i200405

W(DEALER OPTION AIR CONDITIONER)

main99366-C0970i200408

main99366-C1220i200408

W(AIR CONDITIONER)

27020BBELT, V(FOR ALTERNATOR)

main90916-02517i200209-200405

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99365-91110i200209-200405

L=1110

6 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA HB (JPP)

This section contains 6 genuine Toyota parts for the V-BELT system of the Toyota COROLLA HB (JPP). Key components include: MOUNTING, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR ALTERNATOR), HEATING & AIR CONDITIONING - COMPRESSOR.
