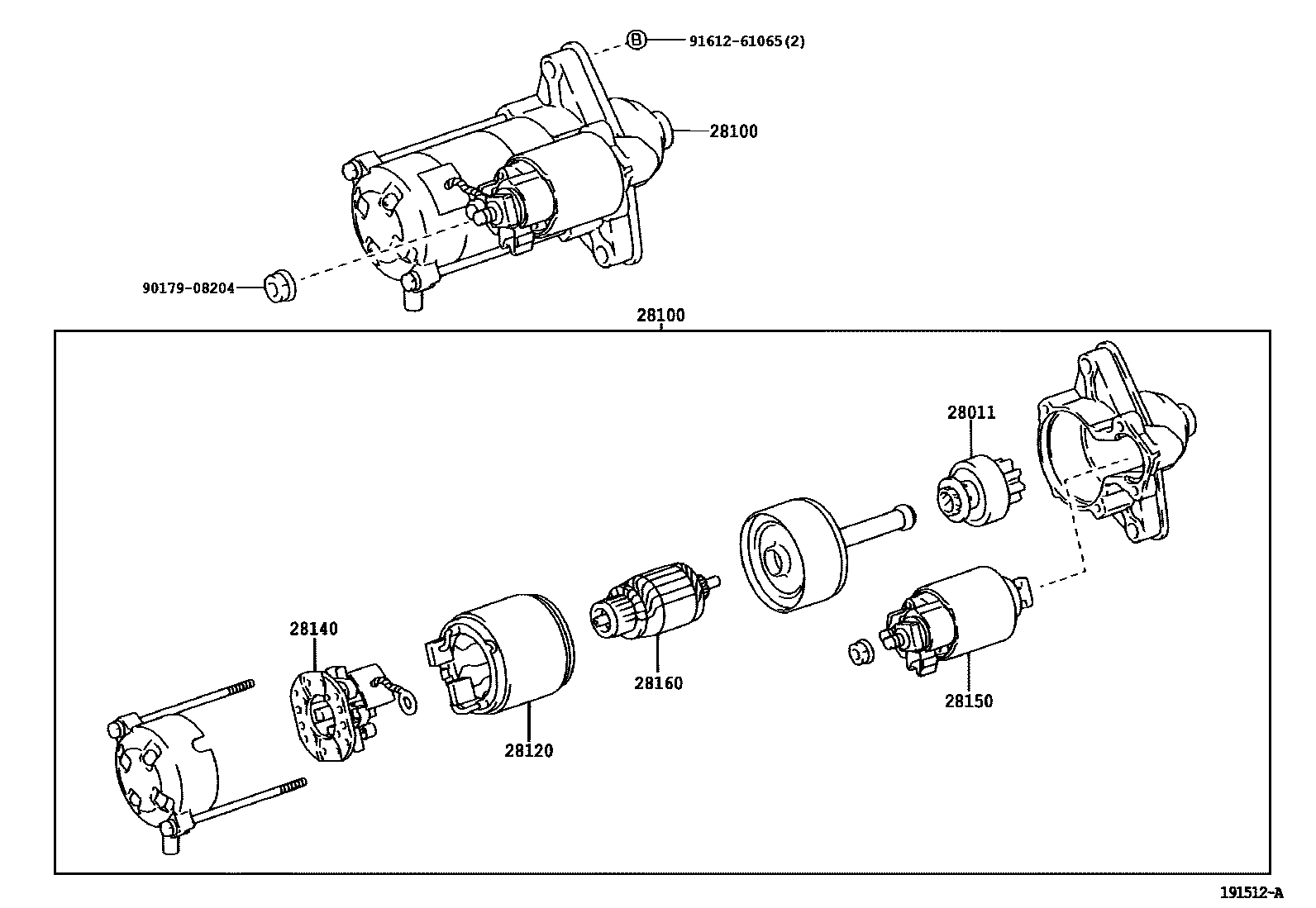

Toyota COROLLA HB (JPP) — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-55050i200408

12V 1.4KW

main28011-55060i200408

12V 2.0KW

main28011-64020i200209-200405

12V 2.2KW

main28011-64130i200209-200405

12V 1.4KW

main28011-70020i200405

28100STARTER ASSY

main28100-22030i200209-200405

12V 0.8KW

main28100-22040i200209-200405

12V 1.0KW

main28100-33070i200408

12V 1.4KW

main28100-33080i200408

12V 2.0KW

main28100-64300i200209-200405

12V 1.4KW

main28100-64430i200209-200405

12V 2.2KW

28120YOKE ASSY, STARTER

main28120-54380i200408

12V 2.0KW

main28120-55050i200209-200405

12V 1.4KW

main28120-64040i200209-200405

12V 2.2KW

main28120-70020i200405

12V 0.8KW

main28120-70050i200405

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-64040i200209-200405

12V 2.2KW

main28140-64130i200209-200405

12V 1.4KW

main28140-70020i200209-200405

28150SWITCH ASSY, MAGNET STARTER

main28150-33040i200408-200610

12V 2.0KW

main28150-46220i200408-200610

12V 1.4KW

main28150-64341i200209-200405

12V 1.4KW

main28150-64430i200209-200405

12V 2.2KW

main28150-70030i200405-200610

28160ARMATURE ASSY, STARTER

main28160-54380i200408

12V 2.0KW

main28160-64041i200209-200405

12V 2.2KW

main28160-70021i200405

12V 0.8KW

main28160-70050i200405

12V 1.0KW

main28160-74070i200408

12V 1.4KW

9017908204

main90179-08204

9161261065

main91612-61065

8 parts on this diagram · 4 diagrams in section

STARTER for Toyota COROLLA HB (JPP)

This section contains 11 genuine Toyota parts for the STARTER system of the Toyota COROLLA HB (JPP). Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, YOKE ASSY, STARTER, HOLDER ASSY, STARTER BRUSH, SWITCH ASSY, MAGNET STARTER.
