Toyota COROLLA HB (JPP) — PARTIAL ENGINE ASSEMBLY

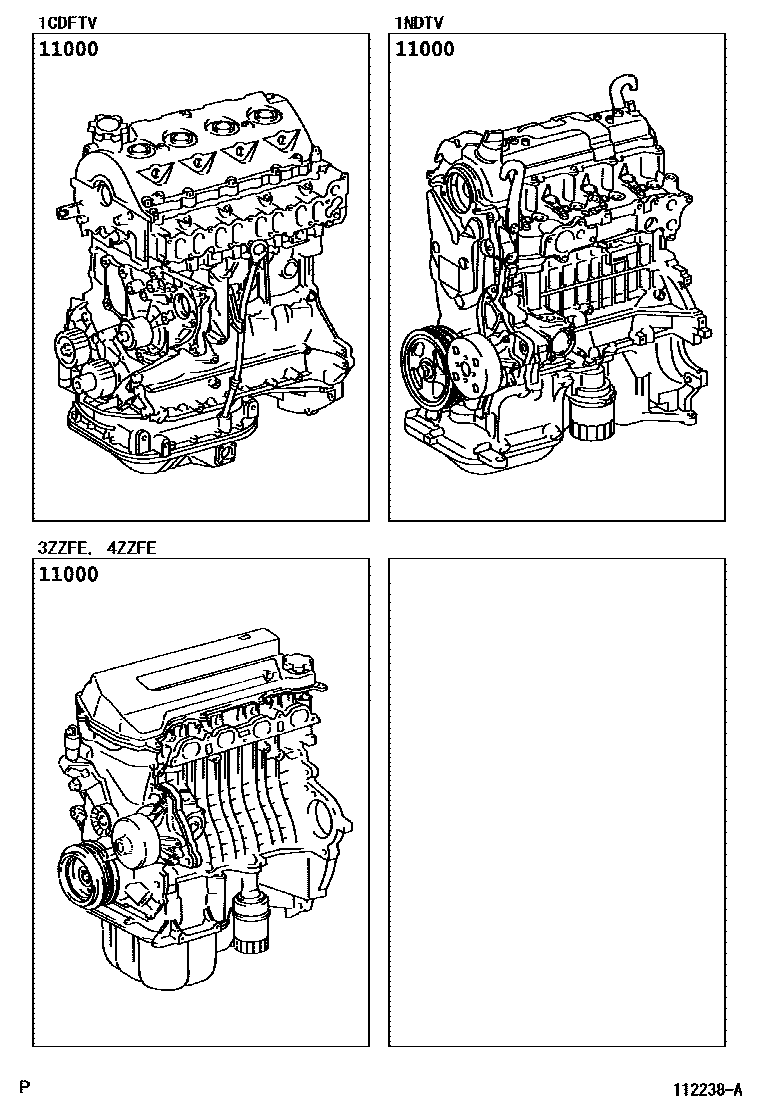

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-22220i200209-200405
sub19000-22221
sub16258-28030
sub16268-22091
sub16268-22101
main19000-22350i200209-200405
sub19000-22351
sub16258-28030
sub16268-22101
main19000-27200i200209-200405
main19000-33210i200408

1 parts on this diagram · 1 diagram in section
