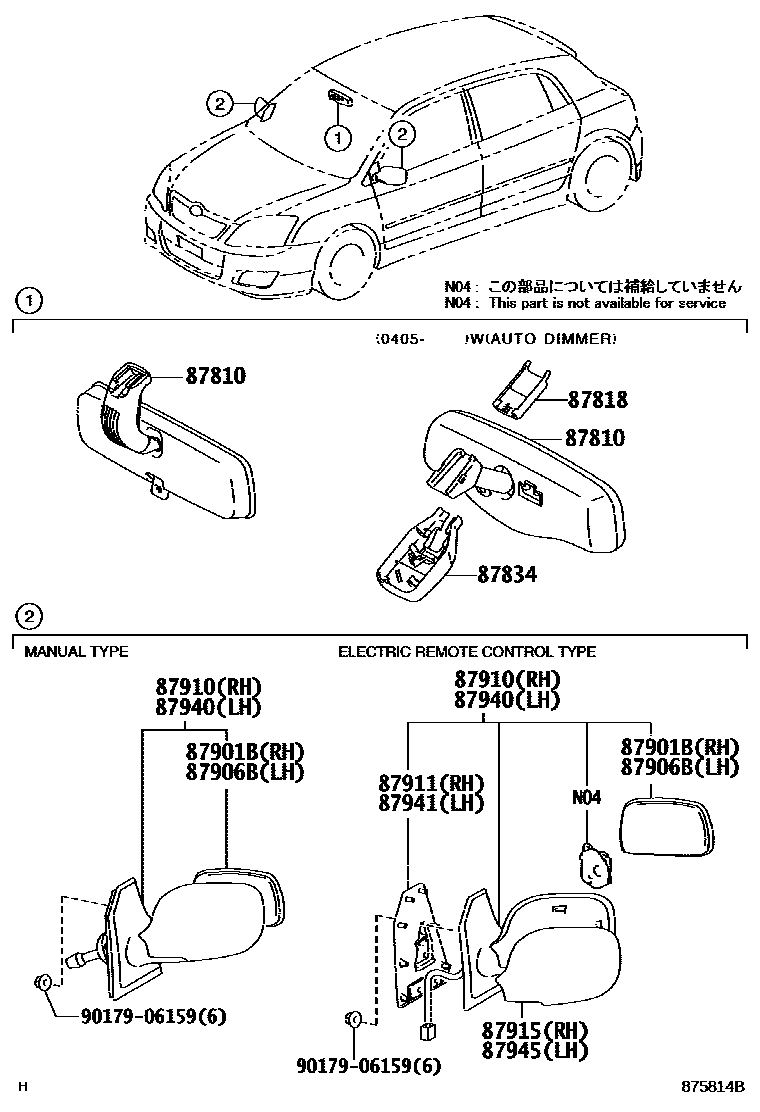

Toyota COROLLA HB (JPP) — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-05040i200405-200609

main87810-05042i200610

main87810-0D010i200405-200503

main87810-0D011i200504

87818COVER, INNER RR VIEW MIRROR

main87818-12010i200405

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12040i200405

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-12A50i200405

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87931-1E260i200405

ELECTRIC REMOTE CONTROL MIRROR

main87931-1E700i200405

main87931-1E860i200209-200405

ELECTRIC REMOTE CONTROL MIRROR

main87931-1H040i200405

main87931-1H050i200209-200405

ELECTRIC REMOTE CONTROL MIRROR

main87931-1H060i200209-200405

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87931-1H070i200209-200405

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87931-47110i200405

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87931-47120i200405

ELECTRIC REMOTE CONTROL MIRROR

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-12A60i200405

ELECTRIC REMOTE CONTROL MIRROR

main87961-12A70i200405

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87961-1E660i200209-200405

MANUAL REMOTE CONTROL MIRROR

main87961-1E671i200209-200405

ELECTRIC REMOTE CONTROL MIRROR

main87961-1H020i200405

main87961-1H030i200209-200405

ELECTRIC REMOTE CONTROL MIRROR

main87961-1H130i200209-200405

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87961-1H140i200209-200405

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87961-47110i200405

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87961-47120i200405

ELECTRIC REMOTE CONTROL MIRROR

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-12A40i200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR

main87910-12A50i200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87910-12A60i200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87910-1E260i200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR

main87910-1E861i200209-200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR

main87910-1E870i200209-200405

NO PAINT REQ.,MANUAL REMOTE CONTROL MIRROR

main87910-1H040i200405

NO PAINT REQ.

main87910-1H051i200209-200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR

main87910-1H061i200209-200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87910-1H071i200209-200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR W/HEATER

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-12320i200209-200405

87915COVER, OUTER MIRROR, RH

main87915-12010-A1i200209-200405

SUPER WHITE 2,040

main87915-12010-B7i200209-200405

GRAY M.M.,1C3

main87915-12010-C2i200209-200405

BLACK MC.,209

main87915-12010-D0i200209-200405

SUPER RED II,3E5

main87915-12010-G0i200209-200405

DARK GREEN MC.,6R4

main87915-12010-J0i200209-200405

DK.BLUE M.M.,8P4

main87915-12010-J5i200209-200405

GRAYISH BLUE M.M.,8Q3

main87915-12010-J6i200209-200405

DK.BLUE,8Q4

main87915-12010-P1i200209-200405

SILVER M.M.,199

main87915-12040-B1i200405

GRAY M.M.,1C3

main87915-68010-A1i200405

SUPER WHITE 2,040

main87915-68010-B3i200405

SILVER ME.,1C0

main87915-68010-C0i200405

BLACK MC.,209

main87915-68010-D3i200405

SUPER RED II,3E5

main87915-68010-G1i200405

DK.GREEN M.M.,6S3

main87915-68010-J0i200405

DK.BLUE M.M.,8P4

main87915-68010-J4i200405

LT.BLUE M.M.,8S1

main87915-68010-J5i200405

BLUE ME.,8P1

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-12A00i200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR

main87940-12A60i200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR

main87940-12A70i200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87940-12A80i200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87940-1E671i200209-200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR

main87940-1E690i200405

NO PAINT REQ.

main87940-1H020i200209-200405

NO PAINT REQ.,MANUAL REMOTE CONTROL MIRROR

main87940-1H031i200209-200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR

main87940-1H131i200209-200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87940-1H141i200209-200405

NO PAINT REQ.,ELECTRIC REMOTE CONTROL MIRROR W/HEATER

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-12300i200209-200405

87945COVER, OUTER MIRROR, LH

main87945-12010-A1i200209-200405

SUPER WHITE 2,040

main87945-12010-B7i200209-200405

GRAY M.M.,1C3

main87945-12010-C2i200209-200405

BLACK MC.,209

main87945-12010-D0i200209-200405

SUPER RED II,3E5

main87945-12010-G0i200209-200405

DARK GREEN MC.,6R4

main87945-12010-J0i200209-200405

DK.BLUE M.M.,8P4

main87945-12010-J5i200209-200405

GRAYISH BLUE M.M.,8Q3

main87945-12010-J6i200209-200405

DK.BLUE,8Q4

main87945-12010-P1i200209-200405

SILVER M.M.,199

main87945-12040-B1i200405

GRAY M.M.,1C3

main87945-68010-A1i200405

SUPER WHITE 2,040

main87945-68010-B3i200405

SILVER ME.,1C0

main87945-68010-C0i200405

BLACK MC.,209

main87945-68010-D3i200405

SUPER RED II,3E5

main87945-68010-G1i200405

DK.GREEN M.M.,6S3

main87945-68010-J0i200405

DK.BLUE M.M.,8P4

main87945-68010-J4i200405

LT.BLUE M.M.,8S1

main87945-68010-J5i200405

BLUE ME.,8P1

9017906159

main90179-06159

12 parts on this diagram · 1 diagram in section

MIRROR for Toyota COROLLA HB (JPP)

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota COROLLA HB (JPP). Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER RR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
