Toyota COROLLA HB (JPP) — METER

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

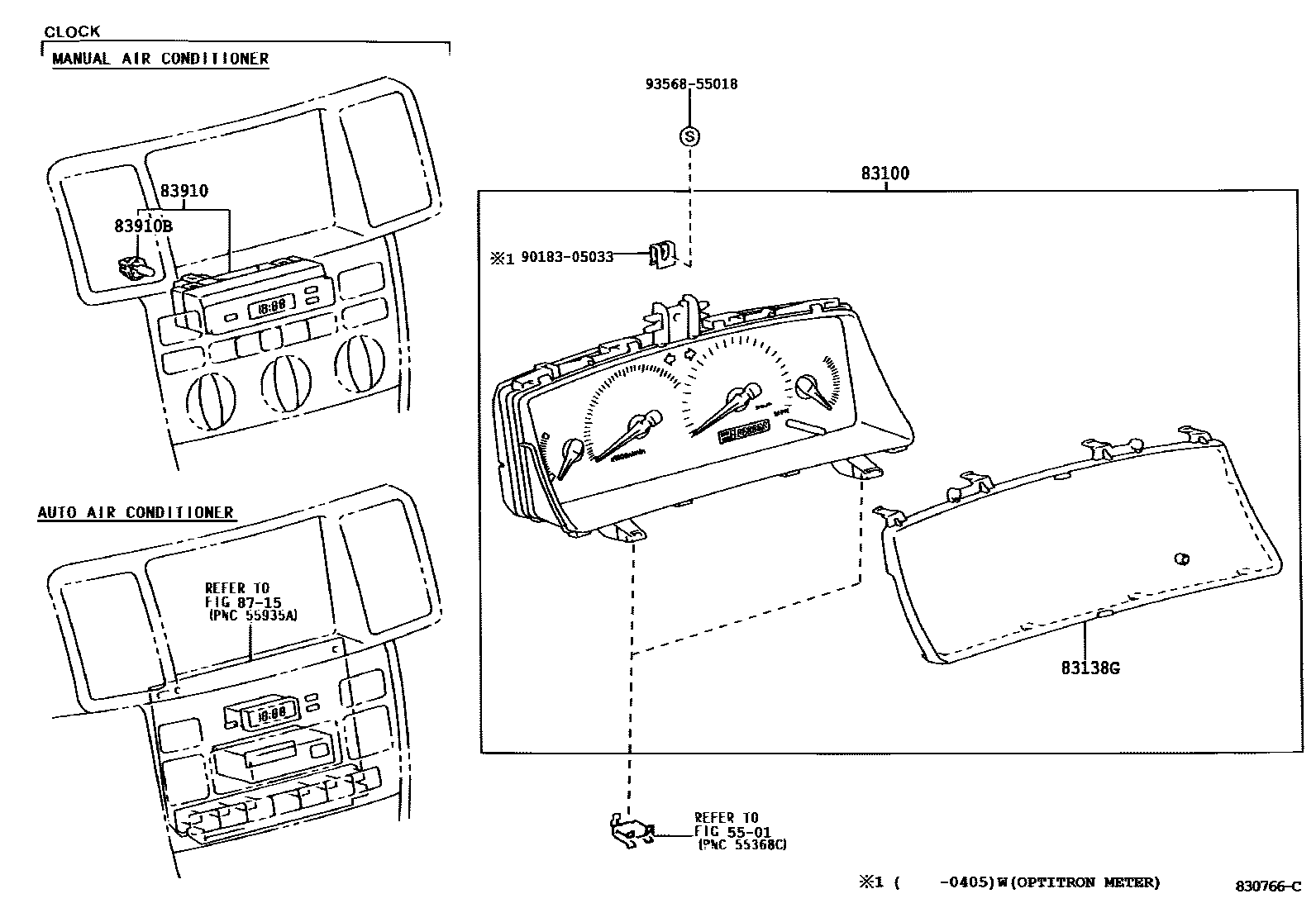

83100METER ASSY, COMBINATION

main83800-02780i200209-200405

OPTITRON METER,MPH & KM/H

main83800-02800i200209-200405

ANALOGUE METER,KM/H

main83800-02810i200209-200405

ANALOGUE METER,KM/H

main83800-02820i200209-200405

ANALOGUE METER,MPH & KM/H

main83800-02D00i200405

ANALOGUE METER,KM/H

main83800-02D10i200408

ANALOGUE METER,KM/H

main83800-02D20i200405

ANALOGUE METER,MPH & KM/H

main83800-12E10i200405

OPTITRON METER,KM/H

main83800-12E20i200408

OPTITRON METER,KM/H

main83800-12E30i200405

OPTITRON METER,MPH & KM/H

main83800-1H300i200209-200405

OPTITRON METER,KM/H

main83800-1H310i200209-200405

OPTITRON METER,KM/H

83138GGLASS, COMBINATION METER

main83852-02740i200209-200405

OPTITRON METER,MPH & KM/H

main83852-02800i200209-200405

ANALOGUE METER

main83852-13100i200209-200405

OPTITRON METER; OPTITRON METER,KM/H

83910CLOCK ASSY

main83910-12580i200209-200405

83910BBULB, CLOCK INDICATOR

main90010-07020i200209-200405

14V 1.12W

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9018305033

main90183-05033

9356855018

main93568-55018

8 parts on this diagram · 1 diagram in section

METER for Toyota COROLLA HB (JPP)

This section contains 8 genuine Toyota parts for the METER system of the Toyota COROLLA HB (JPP). Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, METER ASSY, COMBINATION, GLASS, COMBINATION METER, CLOCK ASSY, BULB, CLOCK INDICATOR.
