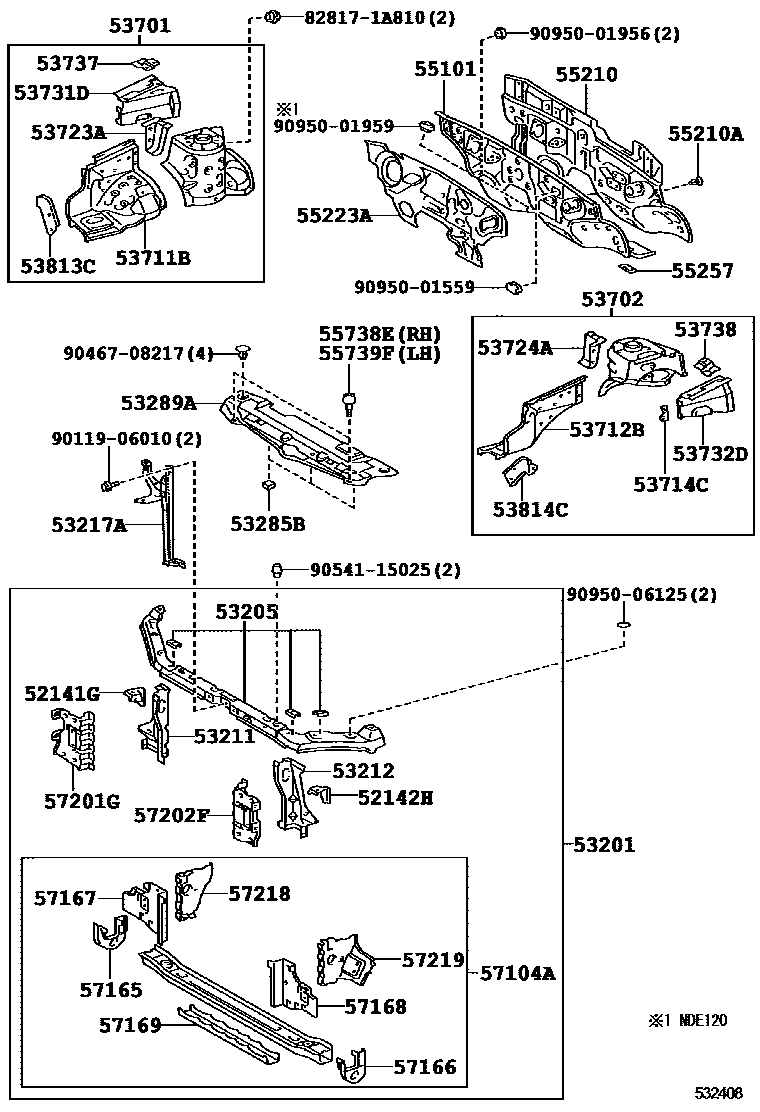

Toyota COROLLA HB (JPP) — FRONT FENDER APRON & DASH PANEL
52141GSTAY, FRONT BUMPER, RH
52142HSTAY, FRONT BUMPER, LH
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53217ABRACE, HOOD LOCK SUPPORT
53285BSEAL, RADIATOR SIDE AIR, NO.1
53289ACOVER, RADIATOR SUPPORT OPENING
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH
53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
55101PANEL SUB-ASSY, DASH
COLD SPEC
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
MD.CHARCOAL,TRIM0#,1#; MD.CHARCOAL,TRIM1#,8#
BLACK
55223AINSULATOR, DASH PANEL, OUTER
55257COVER, DASH PANEL OPENING
55738ESTOPPER, HOOD, RH
55739FSTOPPER, HOOD, LH
57104AMEMBER SUB-ASSY, FRONT CROSS
57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
57167GUSSET, FRONT CROSSMEMBER, UPPER RH
57168GUSSET, FRONT CROSSMEMBER, UPPER LH
57169MEMBER, FRONT FLOOR, FRONT RH
57201GEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57202FEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57218GUSSET, FRONT SIDE MEMBER, NO.1
57219GUSSET, FRONT SIDE MEMBER, NO.2
828171A810PROTECTOR, WIRING HARNESS, NO.1
main82817-1A810
9011906010
main90119-06010
9046708217
main90467-08217
9054115025
main90541-15025
9095001559
main90950-01559
9095001956
main90950-01956
9095001959
main90950-01959
9095006125
main90950-06125
47 parts on this diagram · 2 diagrams in section
FRONT FENDER APRON & DASH PANEL for Toyota COROLLA HB (JPP)
This section contains 47 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota COROLLA HB (JPP). Key components include: STAY, FRONT BUMPER, RH, STAY, FRONT BUMPER, LH, SUPPORT SUB-ASSY, RADIATOR, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT, RADIATOR, RH.
