Toyota COROLLA HB (JPP) — CONSOLE BOX & BRACKET

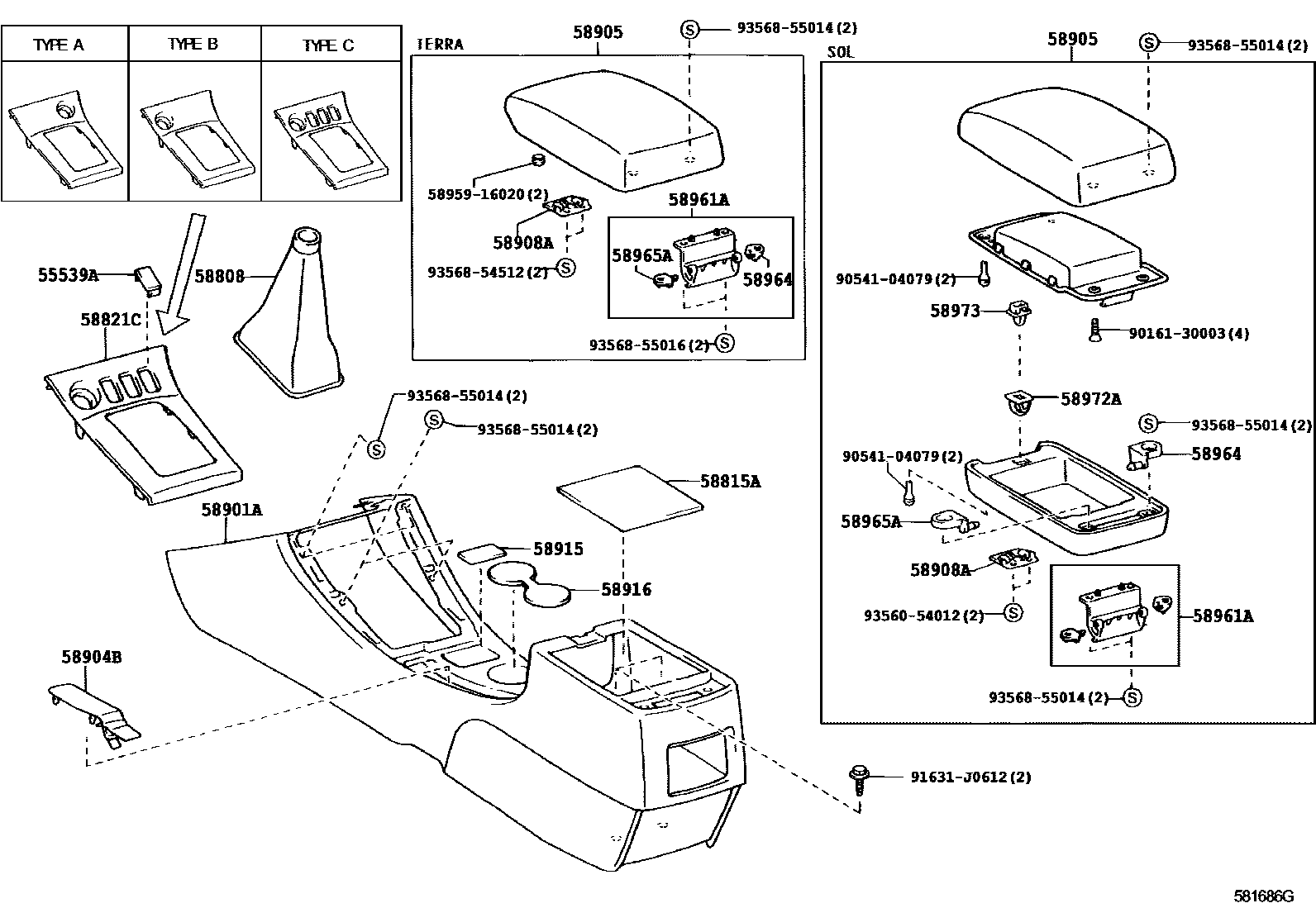

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-32010-A0i200209-200405
IVORY,TRIM0#
main55539-32010-J1i200209-200405
DK.BLUE,TRIM8#
main55539-32010-P3i200209-200405
DK.GRAY,TRIM1#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-02080-B0i200209-200405
DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#,8#
58815ACARPET, CONSOLE BOX
main58815-12060i200209-200405
58821CPANEL, CONSOLE, UPPER
main58821-02110-B0i200405
TYPE A:REFER TO ILLUSTRATION & INSTRUMENT PANEL=TYPE A-*104,DARK GRAY,TRIM1#
main58821-02120-A0i200209-200405
TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM0#
main58821-02120-B0i200209-200405
TYPE A:REFER TO ILLUSTRATION,GRAPHIC CARBON,TRIM1#
main58821-02120-B1i200405-200508
TYPE A:REFER TO ILLUSTRATION & INSTRUMENT PANEL=TYPE B-*104,DARK GRAY ME.,TRIM1#
main58821-02130-A0i200209-200405
TYPE B:REFER TO ILLUSTRATION,IVORY,TRIM0#
main58821-02130-B0i200209-200405
TYPE B:REFER TO ILLUSTRATION,GRAPHIC CARBON,TRIM1#
main58821-02130-B1i200405-200508
TYPE B:REFER TO ILLUSTRATION & INSTRUMENT PANEL=TYPE B-*104,DARK GRAY ME.,TRIM1#
main58821-02140-B0i200405
TYPE B:REFER TO ILLUSTRATION & INSTRUMENT PANEL=TYPE A-*104,DARK GRAY,TRIM1#
main58821-02150-B0i200405
TYPE C:REFER TO ILLUSTRATION & INSTRUMENT PANEL=TYPE A-*104,DARK GRAY,TRIM1#
main58821-02160-A0i200209-200405
TYPE C:REFER TO ILLUSTRATION,IVORY,TRIM0#
main58821-02160-B0i200209-200405
TYPE C:REFER TO ILLUSTRATION,GRAPHIC CARBON,TRIM1#
main58821-02160-B1i200405-200508
TYPE C:REFER TO ILLUSTRATION & INSTRUMENT PANEL=TYPE B-*104,DARK GRAY ME.,TRIM1#
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-12470-A0i200209-200405
IVORY,TRIM0#
main58901-12470-B0i200209-200405
DK.GRAY,TRIM1#
main58901-12470-J0i200209-200405
DK.BLUE,TRIM8#
main58901-12471-B0i200405
DK.GRAY,TRIM1#
main58901-12480-A0i200209-200405
IVORY,TRIM0#
main58901-12480-B0i200209-200405
DK.GRAY,TRIM1#
main58901-12480-J0i200209-200405
DK.BLUE,TRIM8#
main58901-12481-B0i200405
DK.GRAY,TRIM1#
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
main58904-12030-A0i200209-200405
IVORY,TRIM0#
main58904-12030-J0i200209-200405
DK.BLUE,TRIM8#
main58904-12040-A0i200209-200405
IVORY,TRIM0#
main58904-12040-J0i200209-200405
DK.BLUE,TRIM8#
main58904-12050-B1i200209-200405
DK.GRAY,TRIM1#
main58904-12060-B1i200209-200405
DK.GRAY,TRIM1#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-02180-A0i200209-200405
IVORY,TRIM0#
main58905-02180-B0i200209-200405
DK.GRAY,TRIM1#
main58905-02300-B0i200405
DK.GRAY,TRIM1#
main58905-12410-B5i200405
DK.GRAY,TRIM1#
main58905-12410-J0i200209-200405
DK.BLUE,TRIM8#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-33030i200209-200405
58915PANEL, BOX BOTTOM
main58915-02010-A0i200209-200405
IVORY,TRIM0#
main58915-02010-B0i200209-200405
DK.GRAY,TRIM1#
main58915-02010-J0i200209-200405
DK.BLUE,TRIM8#
58916MAT, BOX BOTTOM
main58916-02050-A0i200209-200405
IVORY,TRIM0#
main58916-02050-B0i200405
DK.GRAY,TRIM1#
main58916-02050-J0i200209-200405
DK.BLUE,TRIM8#
58961AHINGE, CONSOLE COMPARTMENT DOOR MALE
main58907-12050i200209-200405
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
main58964-20030i200405-200610
main58964-20040i200209-200405
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
main58965-20040i200405-200610
main58965-20050i200405-200610
58972ABASE, CONSOLE COMPARTMENT DOOR LOCK
main58972-12010i200209-200405
58973PIN, CONSOLE COMPARTMENT DOOR LOCK
main58973-34010i200209-200405
5895916020ROD, REAR LOCK, HANDLE LATCH
main58959-16020
9016130003
main90161-30003
9054104079
main90541-04079
91631J0612
main91631-J0612
9356054012
main93560-54012
9356854512
main93568-54512
9356855014
main93568-55014
9356855016
main93568-55016

23 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota COROLLA HB (JPP)

This section contains 23 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota COROLLA HB (JPP). Key components include: COVER, SPARE SWITCH HOLE, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, PANEL, CONSOLE, UPPER, BOX SUB-ASSY, CONSOLE, REAR.
