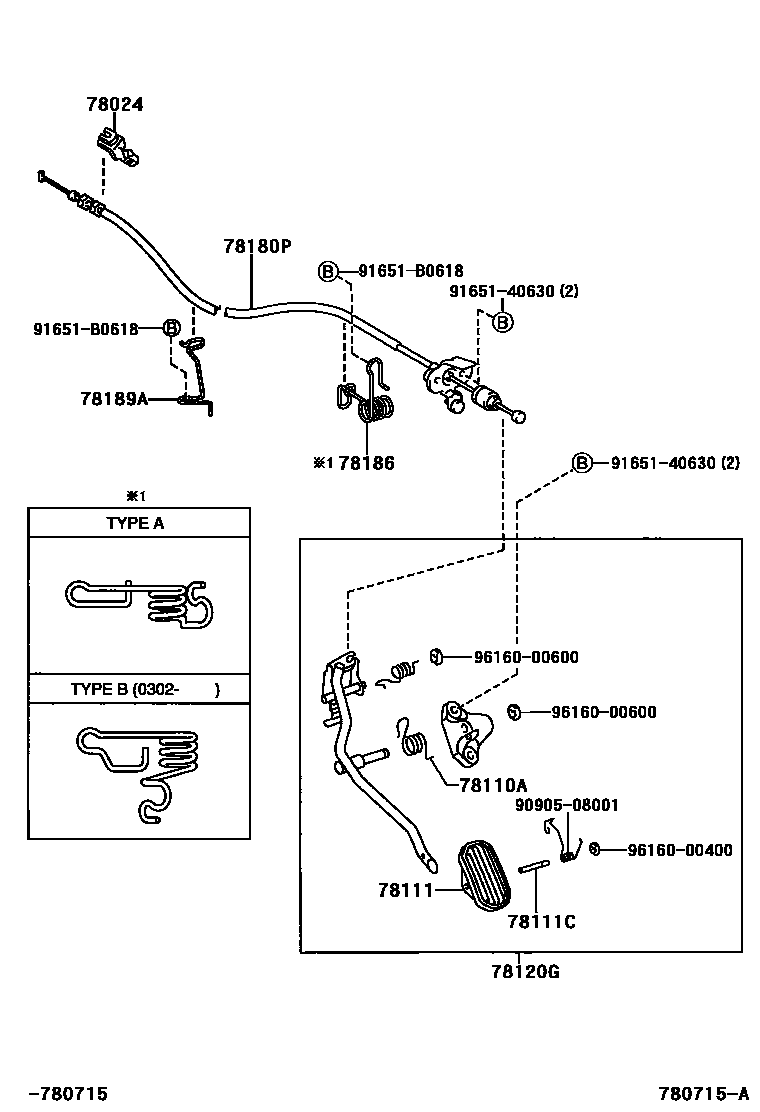

Toyota COROLLA HB (JPP) — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111CPIN (FOR ACCELERATOR PEDAL)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2
9090508001
main90905-08001
9165140630
main91651-40630
91651B0618
main91651-B0618
9616000400
main96160-00400
9616000600
main96160-00600
13 parts on this diagram · 9 diagrams in section
ACCELERATOR LINK for Toyota COROLLA HB (JPP)
This section contains 19 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota COROLLA HB (JPP). Key components include: BRAKE MASTER CYLINDER, PEDAL ASSY, ACCELERATOR, BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR.
