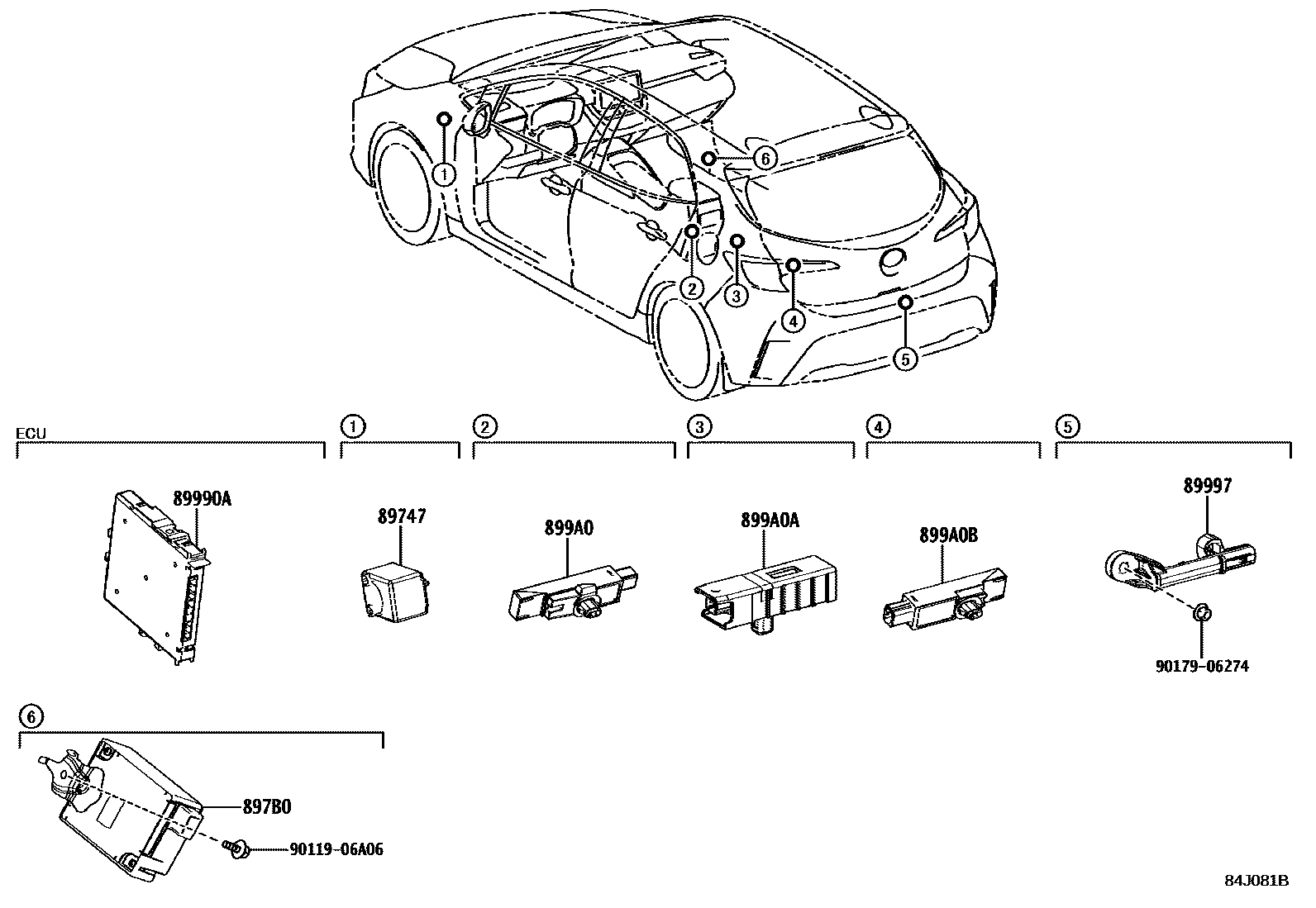

Toyota COROLLA HATCHBACK — WIRELESS DOOR LOCK

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040i201806-202209

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-12050i202107-202209

main897B0-12060i201806-202107

main897B0-12190i202209

89990ACOMPUTER ASSY, SMART KEY

main899H0-12050i201806-201809

main899H0-12051i201810-201908

main899H0-12222i202107-202209

main899H0-12230i201909-201910

main899H0-12231i201910-202107

main899H0-12690supersedes 899H0-12610i202308-202508

89997ANTENNA, ELECTRICAL KEY

main89997-30100i201806-202209

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12080i201806-202209

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12090i201806-202107

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-12130i201806-202209

9011906A06

main90119-06A06

9017906274

main90179-06274

9 parts on this diagram · 1 diagram in section

WIRELESS DOOR LOCK for Toyota COROLLA HATCHBACK

This section contains 9 genuine Toyota parts for the WIRELESS DOOR LOCK system of the Toyota COROLLA HATCHBACK. Key components include: BUZZER, WIRELESS DOOR LOCK, RECEIVER ASSY, ELECTRICAL KEY & TPMS, COMPUTER ASSY, SMART KEY, ANTENNA, ELECTRICAL KEY, ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1.
