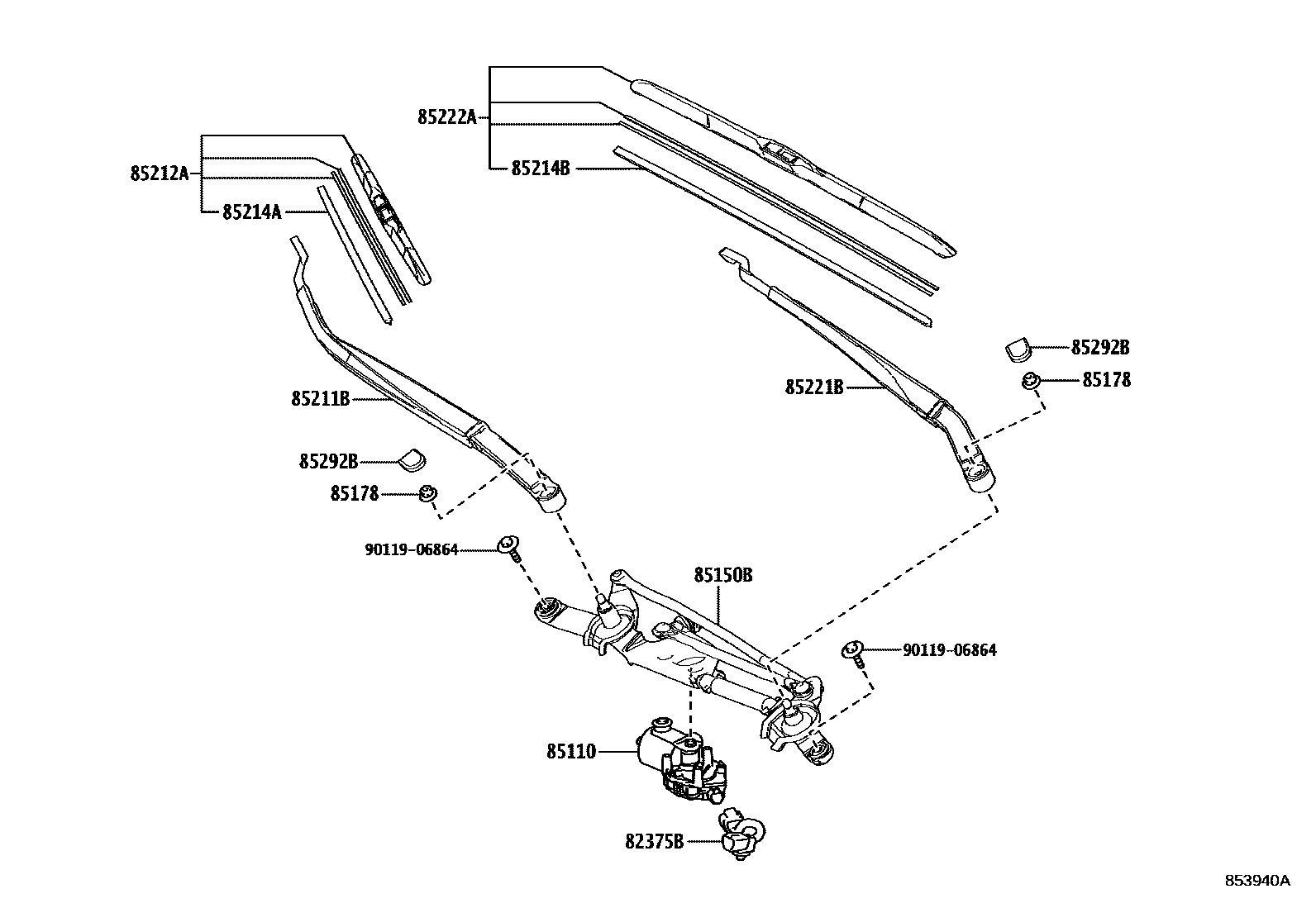

Toyota COROLLA HATCHBACK — WINDSHIELD WIPER

0001 1 0002 1

82375BWIRE, WIPER MOTOR

main82375-12330iMZEA12201806-201909

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12C30iMZEA12..CVT201806-202209

85150BLINK ASSY, WIPER

main85150-12B80iMZEA12..CVT201806-202209

main85150-12B81iMZEA12202209

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iMZEA12..CVT201806-202209

85211BARM, FRONT WIPER, RH

main85211-12660iMZEA12..CVT201806-202209

85212ABLADE, FR WIPER, RH

main85212-52220iMZEA12..CVT201806-202209

85214ARUBBER, WIPER, RH

main85214-68030iMZEA12..CVT201806-202209

85214BRUBBER, WIPER, LH

main85214-28080iMZEA12..CVT201806-202209

85221BARM, FRONT WIPER, LH

main85221-12590iMZEA12..CVT201806-202209

main85221-12591iMZEA12202209

85222ABLADE, FR WIPER, LH

main85222-12A90iMZEA12..CVT201806-202209

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iMZEA12..CVT201806-202209

9011906864

main90119-06864

12 parts on this diagram · 2 diagrams in section
