Toyota COROLLA HATCHBACK — WINDSHIELD WIPER

82375BWIRE, WIPER MOTOR

main82375-12330i201806-201909

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12C30i201806-202209

85150BLINK ASSY, WIPER

main85150-12B80i201806-202209

main85150-12B81i202209

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006i201806-202209

85211BARM, FRONT WIPER, RH

main85211-12660i201806-202209

85212ABLADE, FR WIPER, RH

main85212-52220i201806-202209

85214ARUBBER, WIPER, RH

main85214-68030i201806-202209

85214BRUBBER, WIPER, LH

main85214-28080i201806-202209

85221BARM, FRONT WIPER, LH

main85221-12590i201806-202209

main85221-12591i202209

85222ABLADE, FR WIPER, LH

main85222-12A90i201806-202209

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010i201806-202209

9011906864

main90119-06864

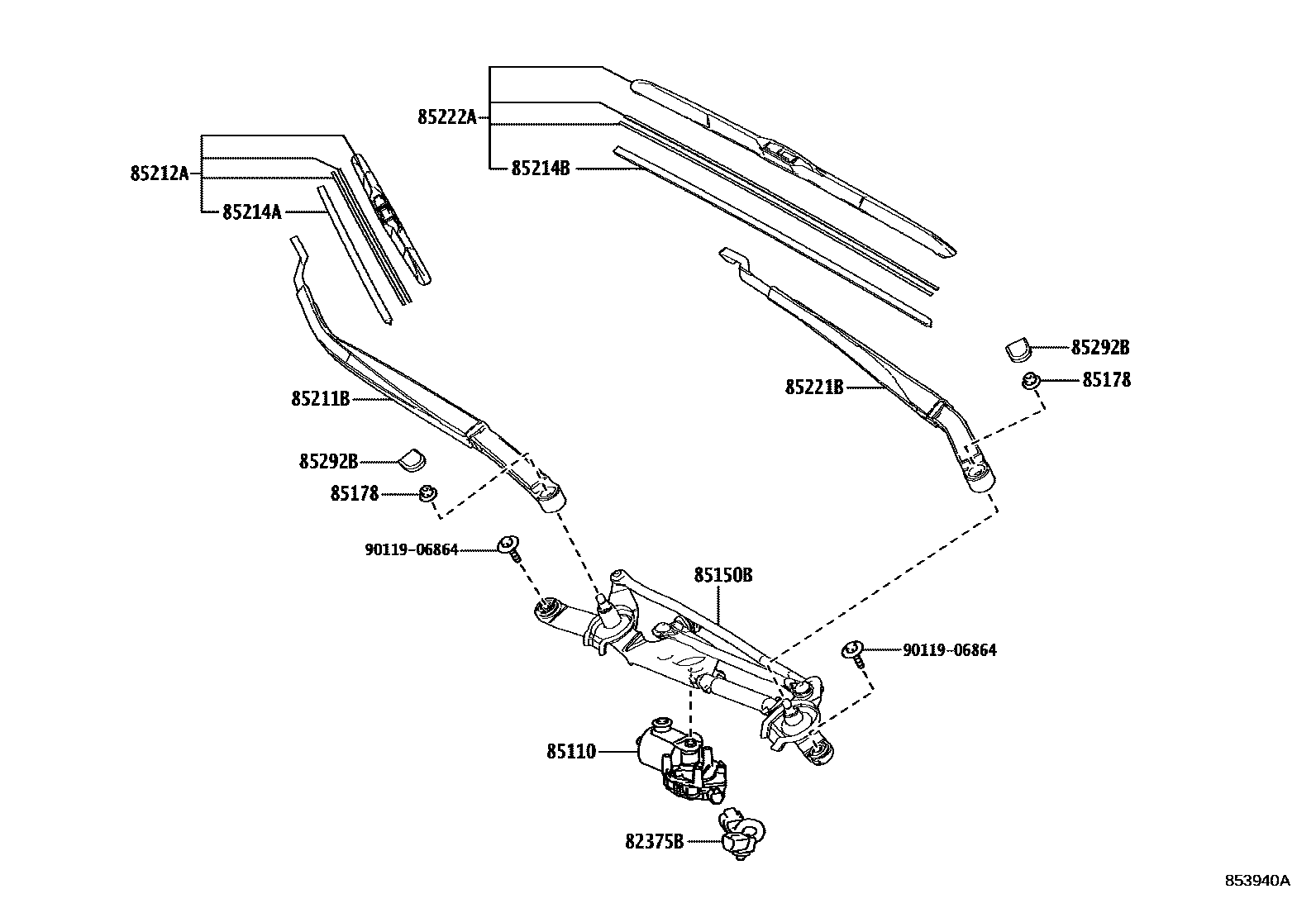

12 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota COROLLA HATCHBACK

This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA HATCHBACK. Key components include: WIRE, WIPER MOTOR, MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH.
