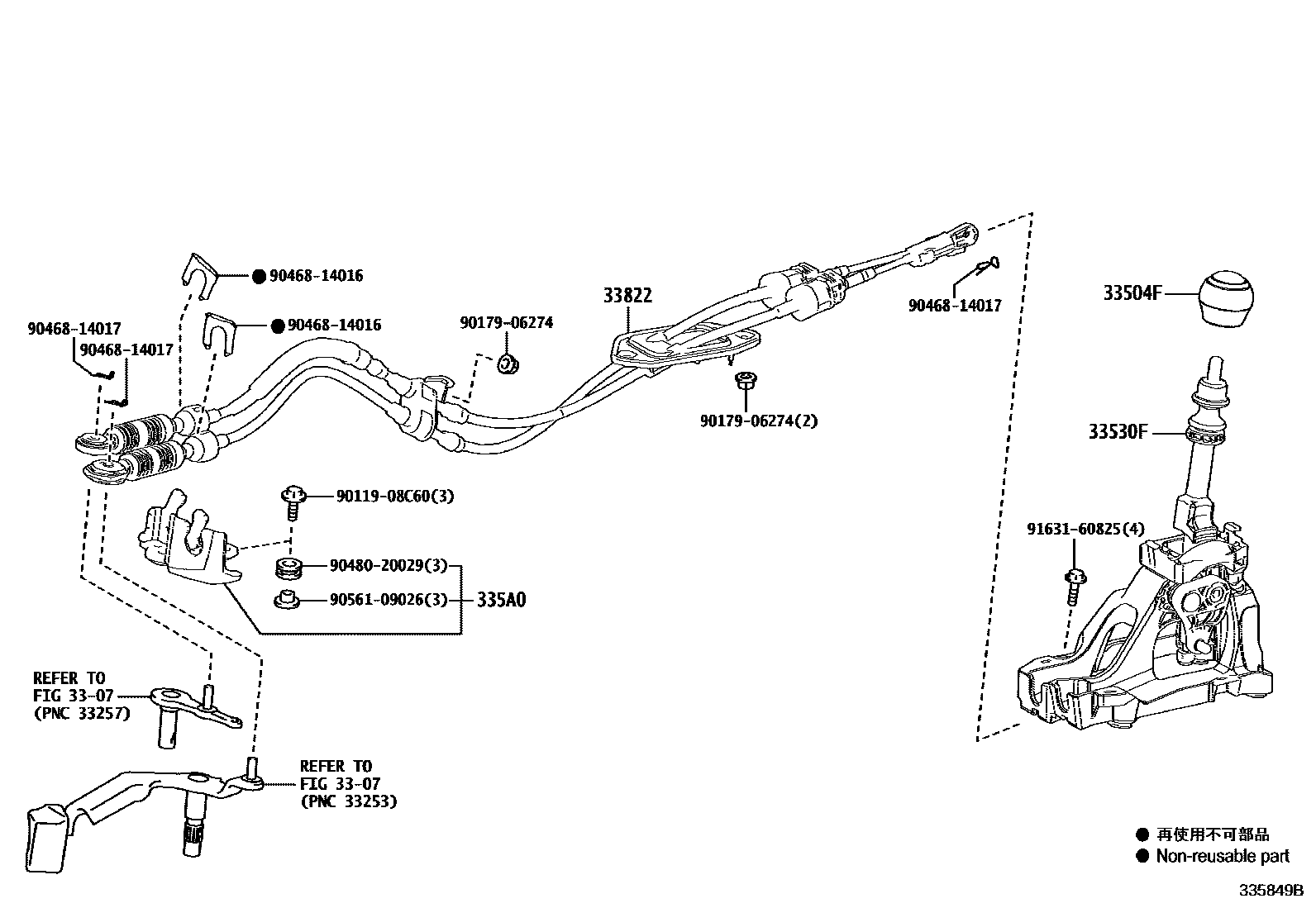

Toyota COROLLA HATCHBACK — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12C50iMZEA12..6F201806

335A0BRACKET ASSY, CONTROL CABLE

main335A0-12040iMZEA12..6F201806

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33820-12J20iMZEA12..6F201806

main33820-12J30iMZEA12..CVT201806-202209

9011908C60

main90119-08C60

9017906274

main90179-06274

9046814016

main90468-14016

9046814017

main90468-14017

9048020029

main90480-20029

9056109026

main90561-09026

9163160825

main91631-60825

12 parts on this diagram · 3 diagrams in section
