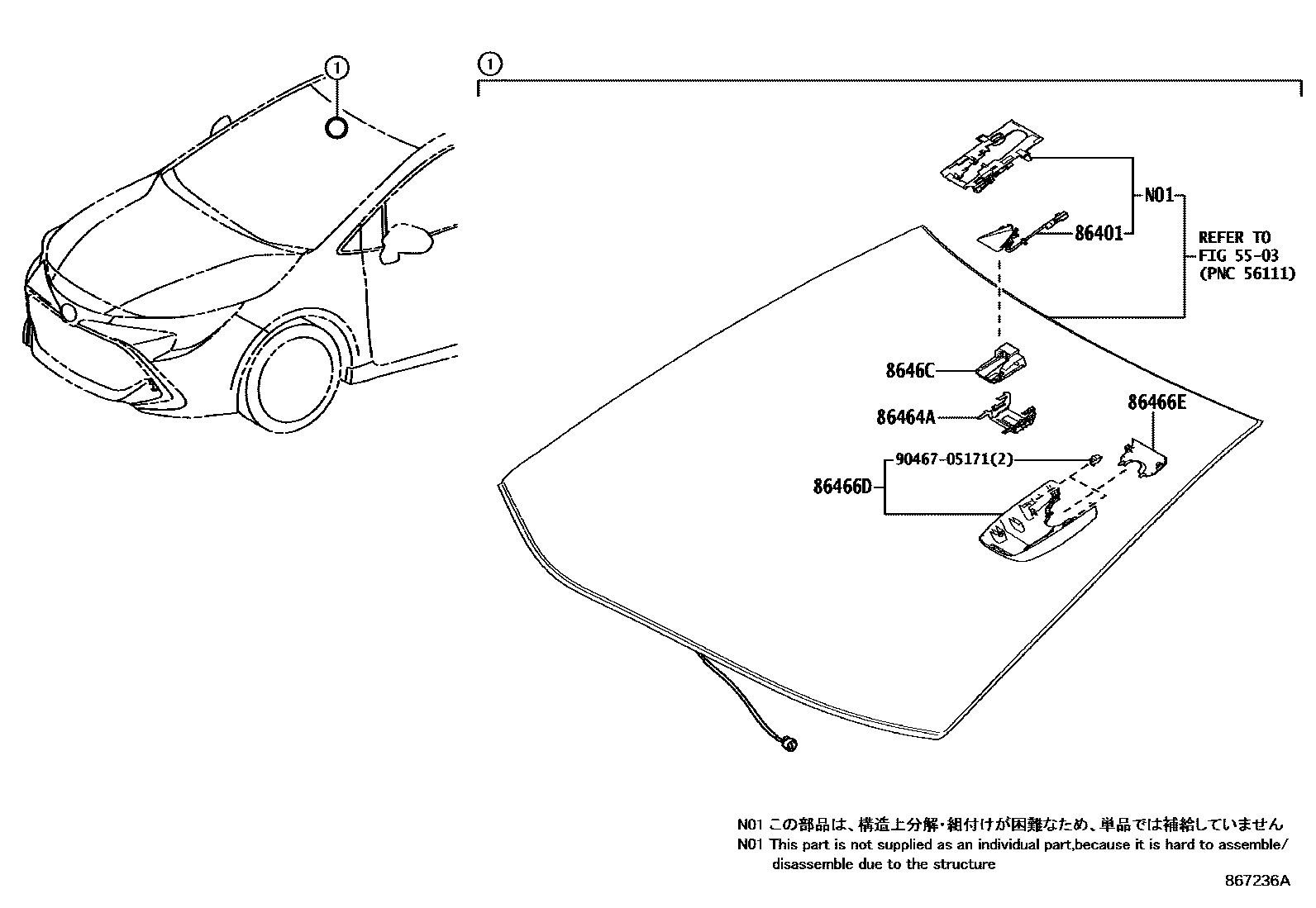

Toyota COROLLA HATCHBACK — PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-12010i201806-202010

main86401-12011i202011-202209

86464ALATCH, FORWARD RECOGNITION

main86464-26010i201806-202209

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-12030i201806-202209

main86466-12050i202209

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-12040i201806-202209

main86467-12010i202209

8646CCAMERA, FORWARD RECOGNITION

main8646C-12010i201806-201909

main8646C-12030i201909-202010

main8646C-12031i202010-202209

main8646C-12110i202209-202211

*614

main8646C-12111i202212-202404

*614

main8646C-12180i202404-202508

*614

9046705171

main90467-05171

7 parts on this diagram · 2 diagrams in section

PRE-COLLISION SYSTEM for Toyota COROLLA HATCHBACK

This section contains 9 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota COROLLA HATCHBACK. Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, HOOD, FORWARD RECOGNITION, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1.
