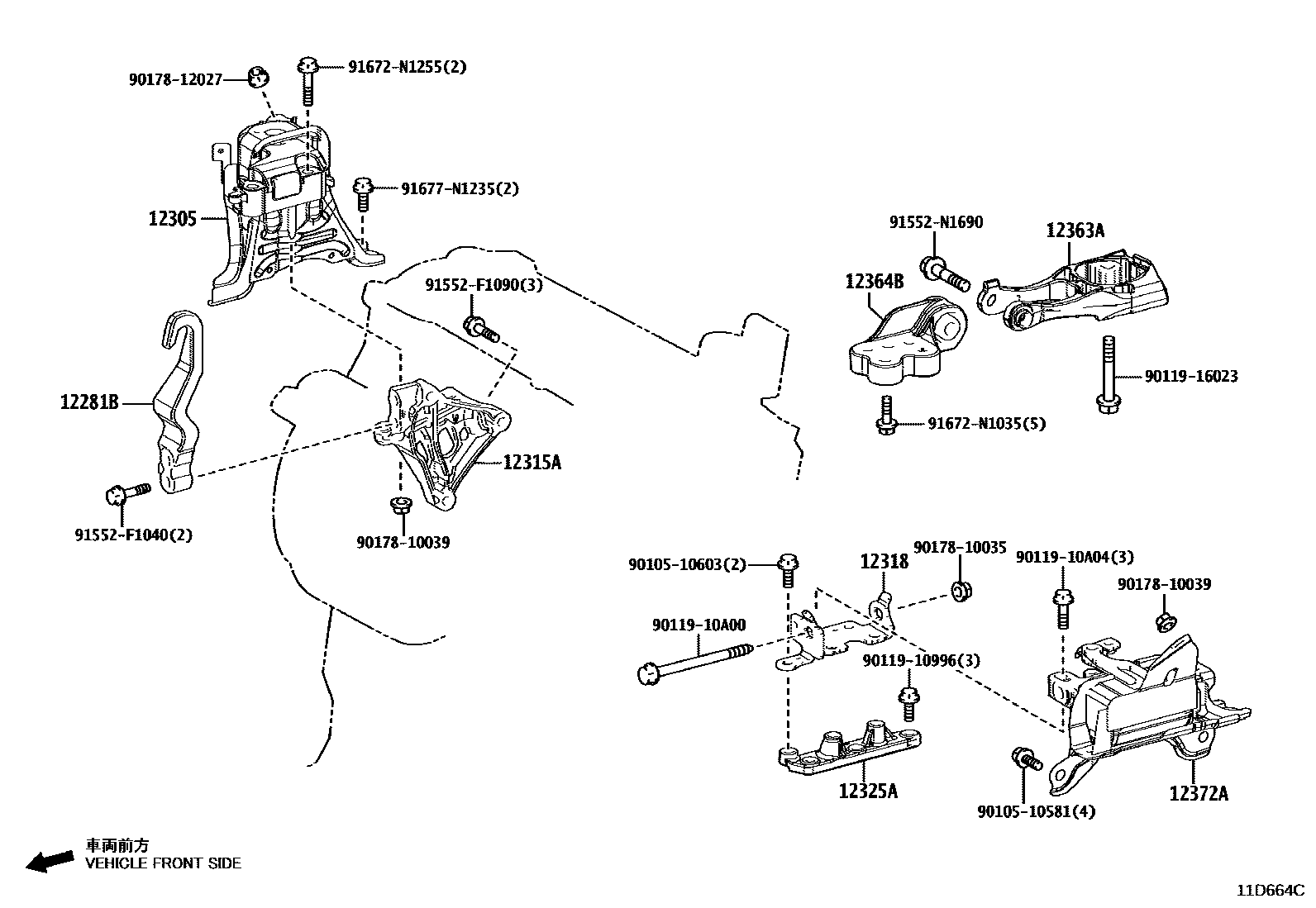

Toyota COROLLA HATCHBACK — MOUNTING

0001 1 0002 1 0003 1 0004 1

12281BHANGER, ENGINE, NO.1

main12281-25030iM20AFKS..MZEA12..CVT201806-202209

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-24010iM20AFKS..MZEA12..CVT201806-202209

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-24010iM20AFKS..MZEA12201806-202105

main12315-24011iM20AFKS..MZEA12..CVT202106-202209

12318STAY, ENGINE MOUNTING, LH

main12318-24010iM20AFKS..MZEA12..CVT201806-202107

main12318-24030×2iM20AFKS..MZEA12..6F201806-202107

main12318-24040iM20AFKS..MZEA12..6F202107

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-24020iM20AFKS..MZEA12..CVT201806-202107

main12325-24050iM20AFKS..MZEA12..6F202107

main12325-24070iM20AFKS..MZEA12202209

12363AROD, ENGINE MOVING CONTROL

main12363-24010iM20AFKS..MZEA12..6F201806-202112

main12363-24011iM20AFKS..MZEA12..6F202201-202208

main12363-24020iM20AFKS..MZEA12..CVT201806-202209

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-24010iM20AFKS..MZEA12..6F201806

main12364-24020iM20AFKS..MZEA12202209

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-24010iM20AFKS..MZEA12..6F201806-202107

main12372-24020iM20AFKS..MZEA12..CVT201806-201808

main12372-24021iM20AFKS..MZEA12..CVT201809-202107

main12372-24070iM20AFKS..MZEA12..6F202107

main12372-24080iM20AFKS..MZEA12..CVT202107-202209

main12372-24081iM20AFKS..MZEA12202410

9010510581

main90105-10581

9010510603

main90105-10603

9011910996

main90119-10996

9011910A00

main90119-10A00

9011910A04

main90119-10A04

9011916023

main90119-16023

9017810035

main90178-10035

9017810039

main90178-10039

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

91552N1690

main91552-N1690

91672N1035

main91672-N1035

91672N1255

main91672-N1255

91677N1235

main91677-N1235

23 parts on this diagram · 4 diagrams in section
