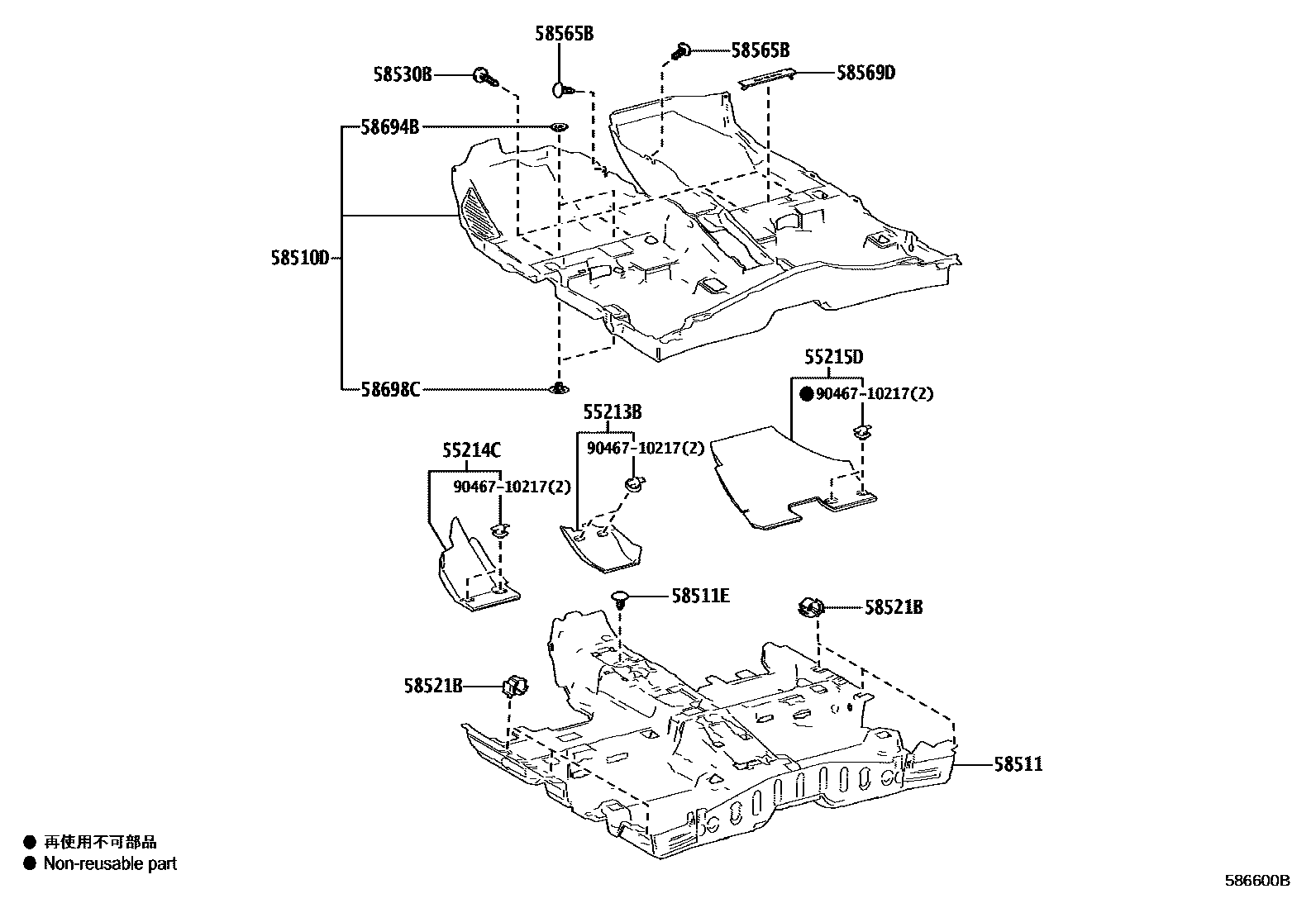

Toyota COROLLA HATCHBACK — MAT & CARPET

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-47100i201806-202208

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-47060i201806-202209

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-47060i201806-202209

58510DCARPET ASSY, FLOOR, FRONT

main58510-12Q80-C1i201806-202208

BLACK,TRIM1#,2#,3#,4#

main58510-12Q81-C1i202209

BLACK,TRIM1#,2#,3#,4#

58511MAT, FLOOR, FRONT

main58511-12770i201806-202209

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4i201806-202209

BLACK

58521BHOOK, FLOOR CARPET

main58521-33060×6i201806-202209

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23×4i201806-202006

BLACK,TRIM1#,2#,3#,4#

main90467-07161-C1×4i202006-202209

BLACK,TRIM1#,2#,3#,4#

58565BCLIP

main90467-05164-C7×2i201806

BLACK,TRIM1#,2#,3#,4#

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-47020-C1i201806

BLACK,TRIM1#,2#,3#,4#

58694BPLATE, MAT SET, UPPER

main58694-78010×2i201806

58698CPLATE, MAT SET, LOWER

main58698-78010×2i201806

9046710217

main90467-10217

13 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota COROLLA HATCHBACK

This section contains 13 genuine Toyota parts for the MAT & CARPET system of the Toyota COROLLA HATCHBACK. Key components include: PAD, DASH PANEL INSULATOR, NO.1, PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, CARPET ASSY, FLOOR, FRONT, MAT, FLOOR, FRONT.
